Important: Always disconnect the power before installing or replacing bulb and before cleaning or other maintenance.
Assembly Instructions for item : 2311, 2313, 2315, 2317
Corona Series - 6‰ LED Pendant, 16‰ LED Pendant
©2013 SONNEMAN - A WAY OF LIGHT
This light should be installed by a licensed electrician
LAMP INSTALLATION AND ASSEMBLY

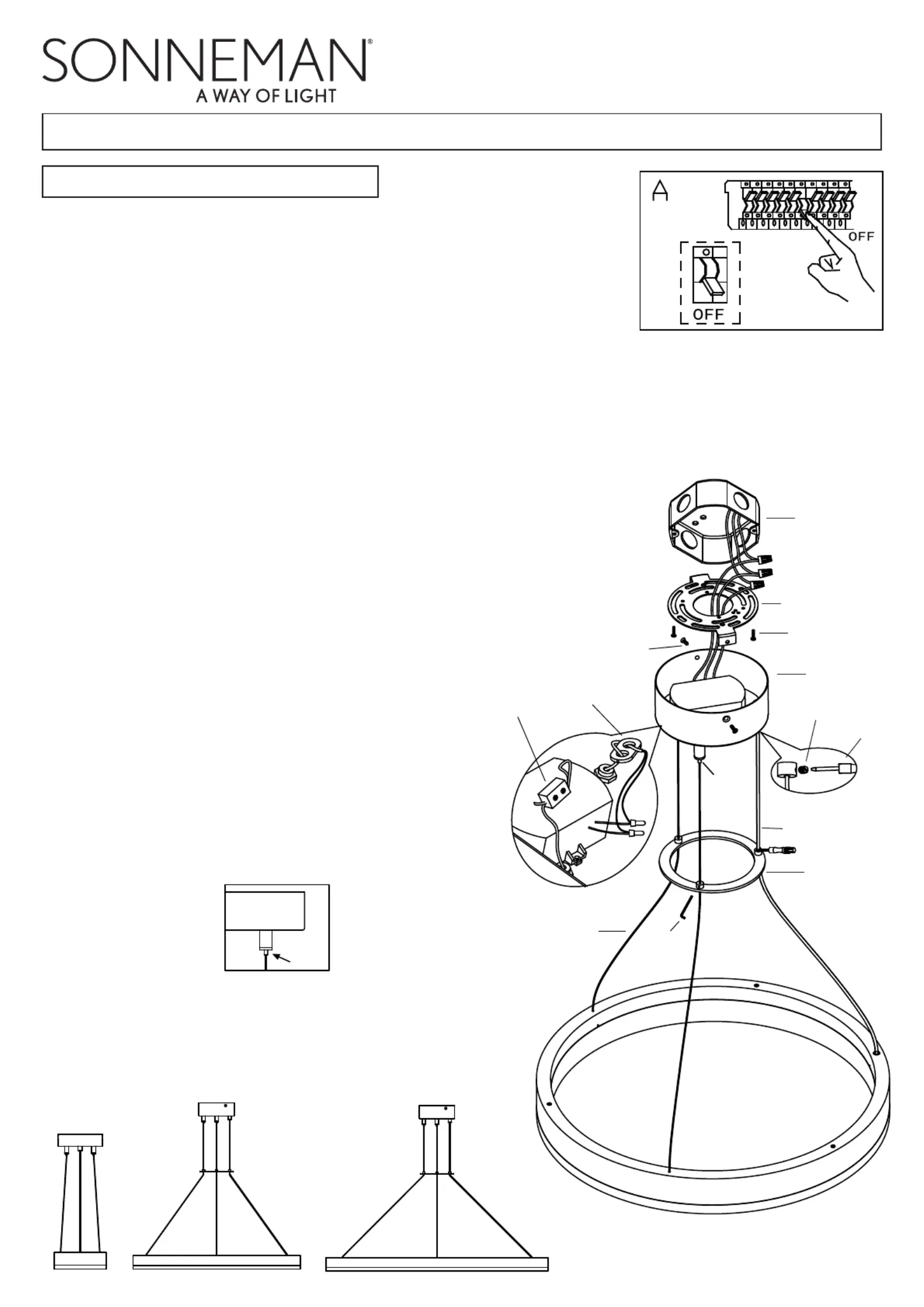

1. Shut off power to the outlet box. (fig. A)
2. Determine the height at which the fixture is to be hung. Use the screwdriver to loosen
the set screw. (fig. B) Adjust the cord to the desired length. Tighten the set screw to set.
3. Adjust the steel cables to the desired length.
4. Reserve extra cord in the canopy, and adjust the cord lock so they are 12" from the
canopy to prevent slippage.
5. Reserve cables in the canopy, and adjust the cable stops so they are 12" from the canopy
by loosening the screws and sliding the stops along the cable. Tighten the screws to set.
6. Attach mounting plate to the outlet box, secure with outlet box screws.
7. Make appropriate electrical connections using wire nuts:
a. Connect the LED driver’s live wire (brown/black) to the live outlet box wire.
b. Connect the LED driver’s neutral wire (blue/white) to the neutral outlet box wire.
c. Connect fixture’s ground wire (green or uncoated) to the ground outlet
box wire. If no ground is present in outlet box, connect fixture’s ground
wire to the mounting plate using the green screw (included).
d. Carefully place connections in outlet box.
8. Attach canopy to mounting plate, secure with mounting screws.
9. Adjust the steel cables or cord as necessary to balance the fixture.
10. Slide the cable guide to desired position by use screwdriver or Allen key to
loosen the set screw and tighten it to set.
11. Restore power to the fixture.
CARE INSTRUCTIONS
Dusting – Use a clean, dry cloth.
Cleaning – To protect the finish,
avoid any harsh abrasives or chemicals.
Steel cable adjustment instructions:
To shorten the cable - Just push the cable up, cable will be
locked automatically.
To lengthen the cable - Lift up on the cable and push up on the lock.
While keeping the lock depressed, lower the
cable to the desired length. Release the lock to set.
24‰ LED Pendant, 32‰ LED Pendant
NOTE: For 2311, 2313, This fixture is dimmable with Electronic Low
Voltage (Trailing-Edge) and Incandescent (Leading-Edge) type dimmers.
For 2315, 2317, This fixture is dimmable with Electronic Low
Voltage (Trailing-Edge) type dimmers only.
For best performance, we recommend Lutron model CTELV-303P.
set screw
fig. B
screwdriver
outlet box
canopy
mounting plate
outlet box screw
mounting screw
cable stop
lock
push
power cord
steel cable
cord lock
2313
231723152311
cable guide
Allen key
