Multiple U.S. and foreign patents pending. ©2023 SONNEMAN - A Way of Light
Assembly Instructions
Ray
Product Information
and Warnings
2033, 2035, 2036
3-Light Round Pendant
5-Light Round Pendant
6-Light Rectangle Pendant
IMPORTANT
Always disconnect the power before installing or replacing
Luminaires and before cleaning or other maintenance.
Consult a qualied, licensed electrician to ensure correct branch
circuit conductor.
Consulter un électricien qualié pour vous assurer que les
conducteurs de la dérivation sont adéquats.
Please read all included assembly instructions and warnings carefully
before installation. Contact Customer Service if you have any
questions or concerns. Before installation, please confirm that the
fixture is compatible with your supply voltage and dimming system,
if present.
LEDs are highly sensitive electronic devices, and must be treated
with care. Do not open any factory sealed compartments, and avoid
touching the LEDs with your hands or any object.
Although all our fixtures are equipped with protective devices,
LED electronic systems are vulnerable to power surges and supply
variations. Do not install LED fixtures on the same circuit as any
motors, appliances, or HVAC systems.
Do not remove of bypass any LED Driver or Transformer that is
provided with the fixture, and do not replace or substitute with
another power supply.
Fixtures must be wired in parallel on independent leads; do not
"daisy chain" multiple fixtures together or wire them in series.
All factory-made splices and connections must remain intact. LED
circuits are carefully designed and built, and improper connections
may damage the fixture.
The ends of coaxial pendant cords have been precisely stripped
and split at the factory and must not be field cut. Excess cord or
cable should be neatly coiled and reserved in the fixture canopy.
Any mounting hardware is provided for your convenience
and should be used with discretion. Always use the appropriate
hardware for the mounting surface.
Instructions D'Installation
Multiple U.S. and foreign patents pending. ©2023 SONNEMAN - A Way of Light
Assembly Instructions
1. Shut o power to the outlet box (A).
2. Attach the mounting plate (B) to the outlet box (A),
secure with outlet box screws (C).
3. Determine the height at which the xture (D) is to be hung.
4. Feed the xture wires through the main tapered stem section
(E), then through the appropriate number of straight stem
sections (F) for the desired height and screw them together
and into the xture (D).
5. Feed the xture wires through the Hang Straight stem (H)
and into the canopy (G). Screw the Hang Straight stem (H)
onto the assembled stem sections and xture.
6. Make appropriate electrical connections using wire nuts:
a. Connect the Power Supply’s live wire to the live supply wire.
b. Connect the Power Supply’s neutral wire to the neutral
supply wire.
c. Connect the xture’s ground wire
(green or uncoated) to the ground supply wire.
d. Connect the Power Supply’s positive (+)
output wire to xture red wire.
e. Connect the Power Supply’s negative (-)
output wire to xture black wire.
Care Instructions:
Use a clean, dry cloth when dusting.
To protect the nish, avoid any harsh
abrasives or chemicals.
Note:
This xture is dimmable with Electronic Low Voltage
(Trailing-Edge), Incandescent (Leading-Edge),
and 0-10V type dimmers only.

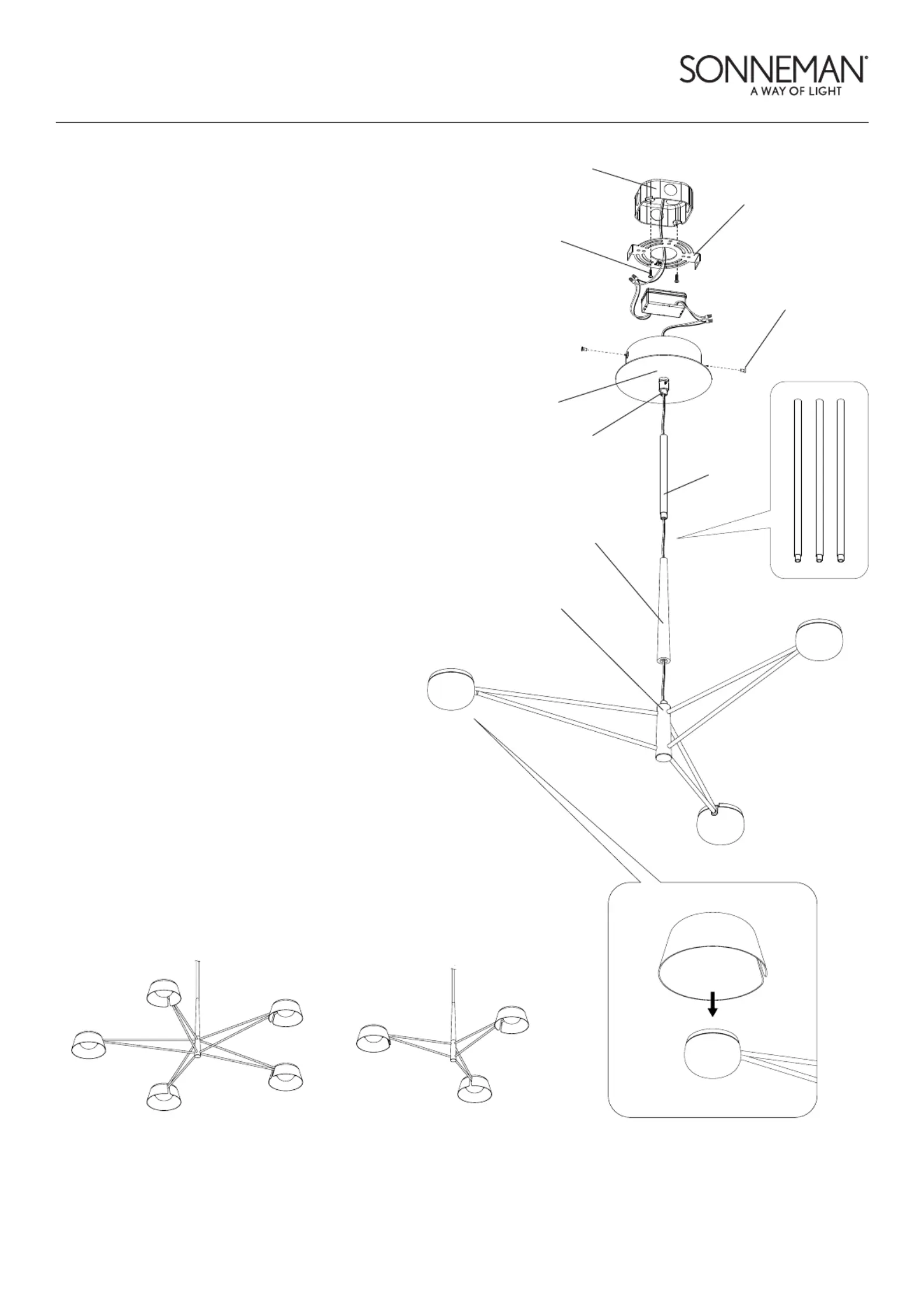

2033, 2035
7. Carefully place connections and driver
in the canopy (G).
8. Attach canopy (G) to mounting plate (B)
with screws (J).
9. Place the slotted shades onto the luminaires (Fig.1),
there will be a "Click" as the magnet engages.
10. Restore power to the outlet box.
(A)
(B)
(C)
(D)
(E)
(F)
(H)
(G)
Click!
Fig.1
20332035
(J)
Instructions D'Installation
Multiple U.S. and foreign patents pending. ©2023 SONNEMAN - A Way of Light
Assembly Instructions
Care Instructions:
Use a clean, dry cloth when dusting.
To protect the nish, avoid any harsh
abrasives or chemicals.
Note:
This xture is dimmable with Electronic Low Voltage
(Trailing-Edge), Incandescent (Leading-Edge),
and 0-10V type dimmers only.

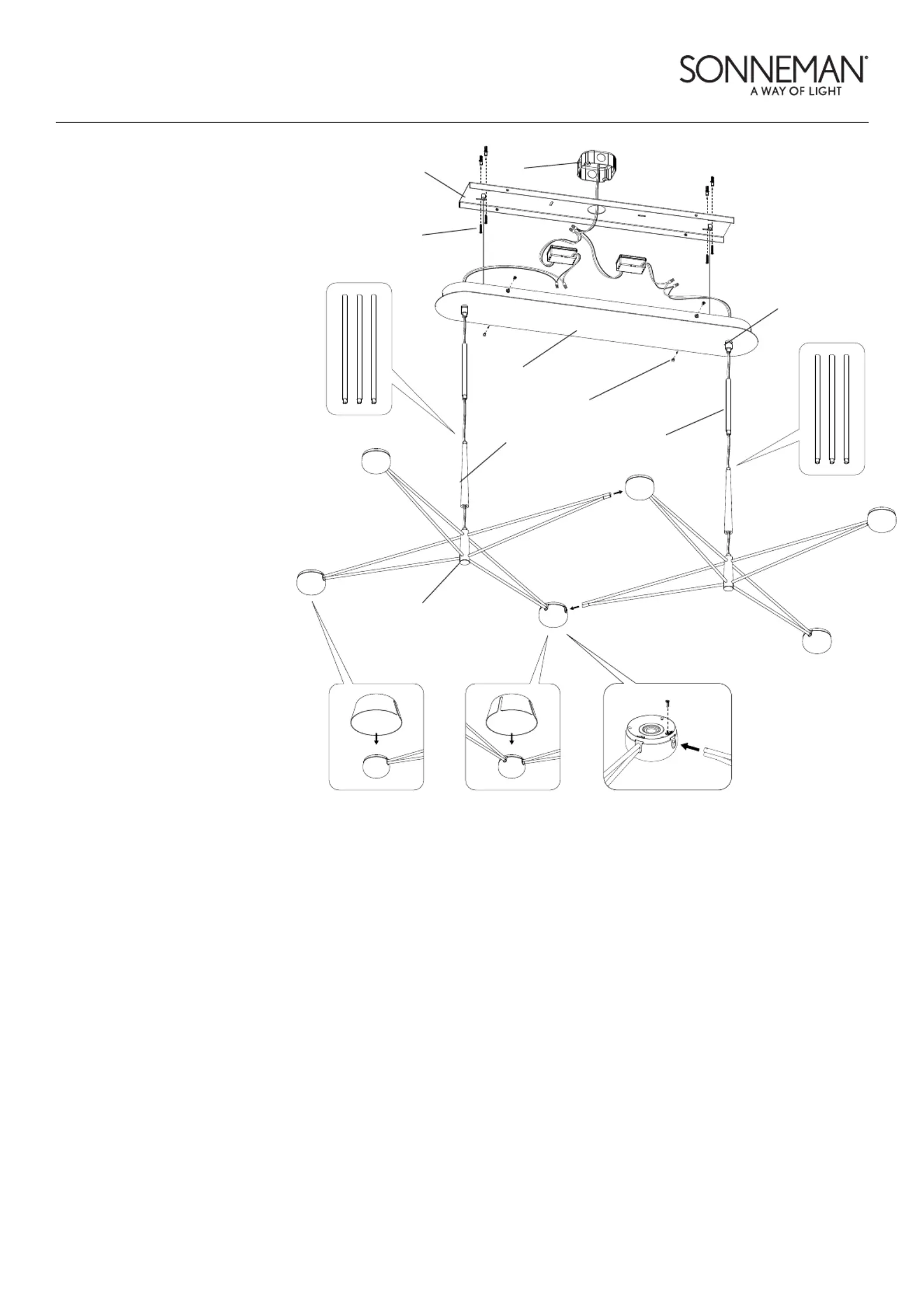

2036
1. Shut o power to the
outlet box (A).
2. Secure the mounting plate (B)
to the ceiling with wall anchors
and appropriate screws (C),
covering the outlet box (A).
3. Determine the height at which
the two half xtures (D)
are to be hung.
4. Feed the xture wires through
the main tapered stem section (E),
then through the appropriate
number of straight stem sections (F)
for the desired height and screw
them together, into the
xture (D).
5. Feed the xture wires through
the Hang Straight stem (H)
and into the canopy (G). Screw
the Hang Straight stem (H)
onto the assembled stem
sections and xture.
6. Assemble the two half xtures (D),
by sliding the arm ends into the
open luminaire heads, and
fastening with the high contrast
attachment screw (Fig.1)
7. Make appropriate electrical
connections using wire nuts:
a. Connect the Power Supply’s
live wire to the live supply wire.
b. Connect the Power Supply’s
neutral wire to the neutral
supply wire.
c. Connect the xture's ground
wire (green or uncoated) to
the ground supply wire.
d. Connect the Power Supply’s positive (+)
output wire to xture red wire.
e. Connect the Power Supply’s negative (-)
output wire to xture black wire.
8. Carefully place connections and driver in the canopy (G).
9. Attach canopy (G) to mounting plate (B) with screws (J).
10. Place the slotted shades onto the matching luminaires (Fig.2 &
Fig.3), there will be a "Click" as the magnet engages.
11. Restore power to the outlet box.
(A)
Fig.1Fig.2 Fig.3
(B)
(C)
(D)
(E) (F)
(H)
(J)
(G)
