Seite 1/2
© 2023 MSE Audio, and SoundTube Entertainment, Inc. All rights reserved. | Rev 04.03.2023
1.855.663.5600
|
www.soundtube.com
Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
Warning Warning
SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
+100 V
+70.7 V
Common
Constant
Voltage
Conection
Low
Impedance
Connection
Audio Isolation
Transformer
AC-P350-XFMR
40 Vrms Max .
+

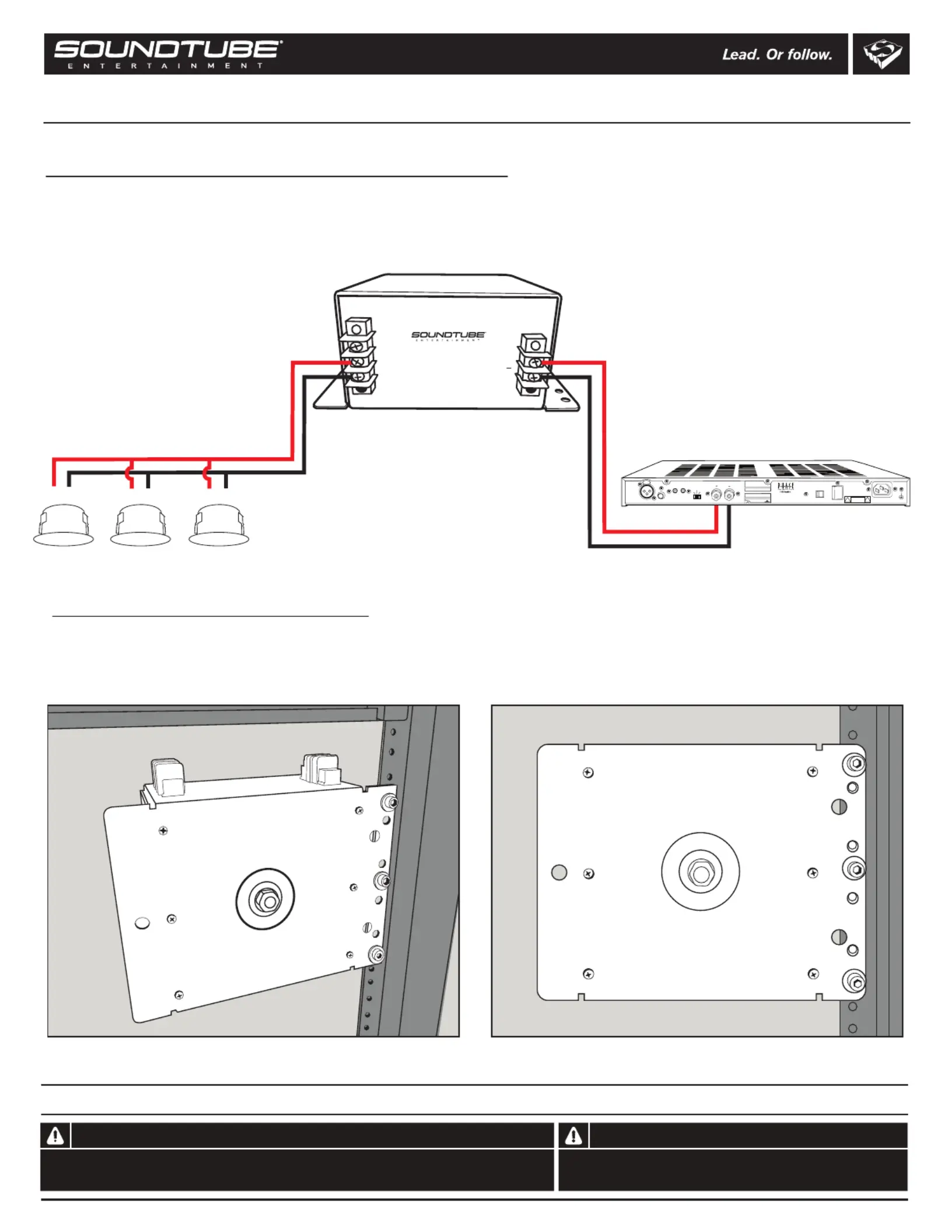

For use with PhaseTech P350 Amplier
The AC-P350-XFMR allows the PhaseTech P350 low-impedance amplier
to be converted to a constant-voltage amplier with a 70.7V or 100V
speaker output for distributed audio systems.
Equipment Rack Mounting
The AC-P350-XFMR can also be mounted in an equipment/server rack.
The mounting holes on the chassis's ange accept standard rack mount
screws and align with standard rack rail hole spacing.
70.7V / 100V loudspeakers wired
in parallel (daisy-chained)
PhaseTech P350 Amplier
+ + +
— — —
INPUT
12V TRIGGER
UNBALANCEDBALANCED
OUTPUT
TRIGGER
MODE
IN OUT
MUSIC
ON
12V
4-16 OHMS
INPUT
VOLTAGE
POWER
ON OFF
115V 60 Hz/ 230V 50 Hz
AC INPUT 600W MAX
PUSH
115V
AC-P350-XFMR Installation Instructions
LA880i-II Back-Panel Mounting
The AC-P350-XFMR can be mounted to the back panel of the LA880i-II or LA808i-II.
The chassis is designed to mount directly beneath the input panel with
(3) 1/4"-20 X 5/8" machine screws (not included).
© 2023 MSE Audio, and SoundTube Entertainment, Inc. All rights reserved. | Rev 04.03.2023
1.855.663.5600
|
www.soundtube.com
Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
Warning Warning
SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
CH1 CH2 CH3 CH4
CH1 CH2
H3 4
CH3 CH4
LEVELS
OUTPUT
POWER
ON
ON/OFF
1-HI-Z/LOW-Z
2-4 Ohm / 8 Ohm
3-HI-Z 25V/70V
4-HI-Z 100V
5-SUB-1
6-SUB-2
1-HPF 70Hz/120Hz SUB
2-SLEEP
3-AMP STATUS
4-CH3 TO CH4
5-CH2 TO CH3
6-CH1 TO CH2
DEEP
SLEEP
AMP
STATUSG
123456
ON
123456
CH1
INPUT
CH2
GG
913.663.5600 | www.mseaudio.com
+100 V
+70.7 V
Common
Constant
Voltage
Conection
Low
Impedance
Connection
Audio Isolation
Tr ansformer
AC-P350-XFMR
40 Vrms Max .
+
SoundTube MCA2004t Amplier
or other 70.7V / 100V equivalent
SoundTube
LA880i-II
Speaker

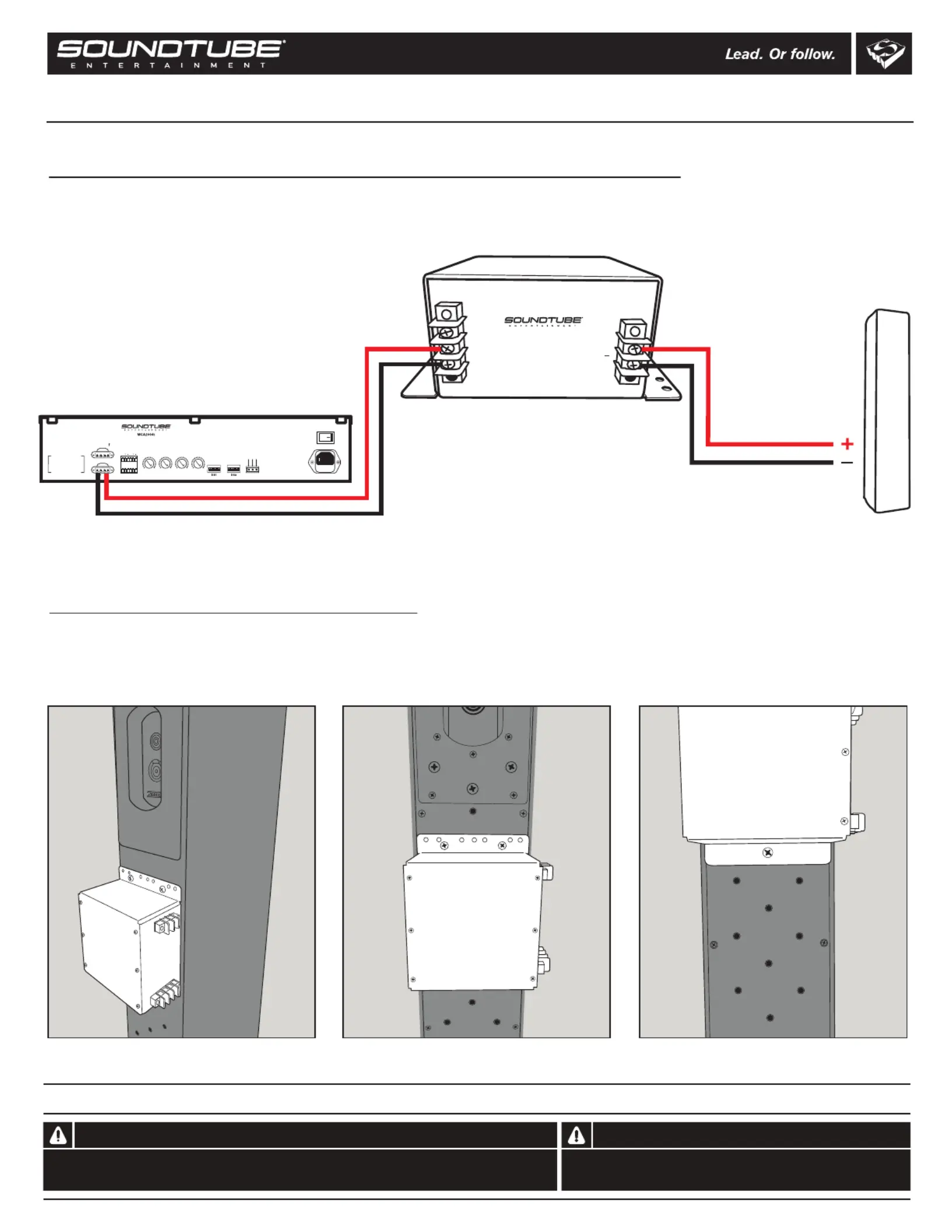

For use with SoundTube LA880i-II Line Array Speaker
The AC-P350-XFMR can act as a step-down transformer to allow
the SoundTube LA880i-II Line Array Speaker to be used in
70.7V or 100V distributed audio systems.
AC-P350-XFMR Installation Instructions
