Install Instructions For:

MCA2004t

Do not spec or install amplifier near support beam, ventilation duct or

other structure that may interfere with amplifier function or dispersion.

WarningWarning

SoundTube amplifiers must be installed by a professional audio installer/contractor. For safety and for

optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

© 2022 SoundTube Entertainment, Inc. All rights reserved. Rev2.24.23

913.663.5600

|

www.mseaudio.com

1

MCA2004t

MCA2004t

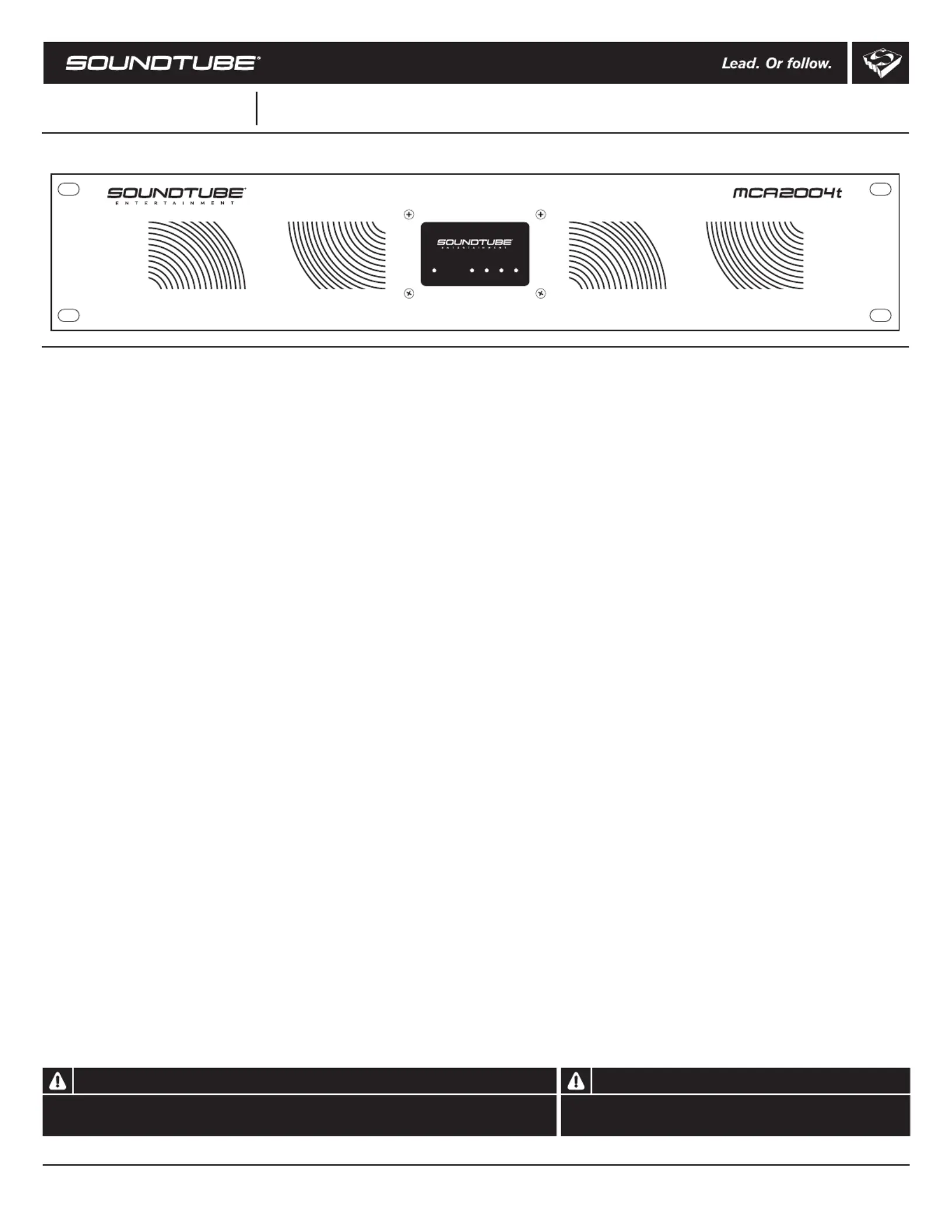

MCA2004t, AUDIO DISTRIBUTION AMPLIFIER INSTALLATION MANUAL

CH1CH2CH3CH4POWER

FEATURES:

• 200W at 8 ohms direct or 70V, 100V constant voltage outputs

• 100W at 4 ohms direct or 25V constant voltage output

• 4 channel class D amplier

• Matrix mixer connects inputs to outputs

• Selectable 70Hz high pass and low pass ltering

• 2 switchable subwoofer channels with 120Hz low pass and

120Hz selectable high pass ltering

• Euroblock balanced and unbalanced inputs

• Selectable auto signal sense and deep sleep trigger modes

• Peak-clipping limiter

• High current euroblock output connectors

• Forced air cooling with variable speed thermostatically controlled fan

• Overload, short circuit, DC offset, and thermal protection circuits

• Power/sleep, limiting and protection LED indicators

• Compact 2U rack space chassis

• Selectable amp status monitoring

DESCRIPTION:

The SOUNDTUBE MCA2004t audio distribution amplier is a high-

performance audio amplier that is designed for continuous use in commer-

cial and professional applications. The high efciency Class “D” amplier

design offers high performance in a compact design.

Performance features of the SOUNDTUBE MCA2004t amplier are exible

audio input connections for both balanced and unbalanced audio signals.

The amplier input uses two removable euroblock style connectors to

interface with the input source. The amplier’s input routing feature allows the

distribution of the input signal to the selected output. This feature allows all

connected speakers to be driven by a single or multiple sources.

The amplier offers 70Hz switchable high pass lters to avoid over driven

bass distortion and speaker line transformer saturation from low frequencies.

“SUB” or subwoofer mode is another feature offered by the MCA2004t. This

mode allows Channel 1 and Channel 2 to be switchable subwoofer outputs.

This mode applies a 120Hz low pass lter to either, or both Channel 1 and

Channel 2 and allows for a 120Hz high pass lter to the remaining channels.

When this mode is selected for a particular channel, the output impedance

will be automatically changed to 4 ohms.

This amplier has auto signal sense or a deep sleep trigger, as well as an

auxiliary port used to remotely monitor the health of the amplier.

The SOUNDTUBE MCA2004t’s protection circuitry includes temperature,

short circuit, DC offset, and current overload protection. This amplier is

designed to provide long term reliability of operation and includes several

features to ensure many years of trouble-free operation.
