Do not spec or install speaker near support beam, ventilation duct or

other structure that may interfere with speaker function or dispersion.

Warning Warning

SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for

optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

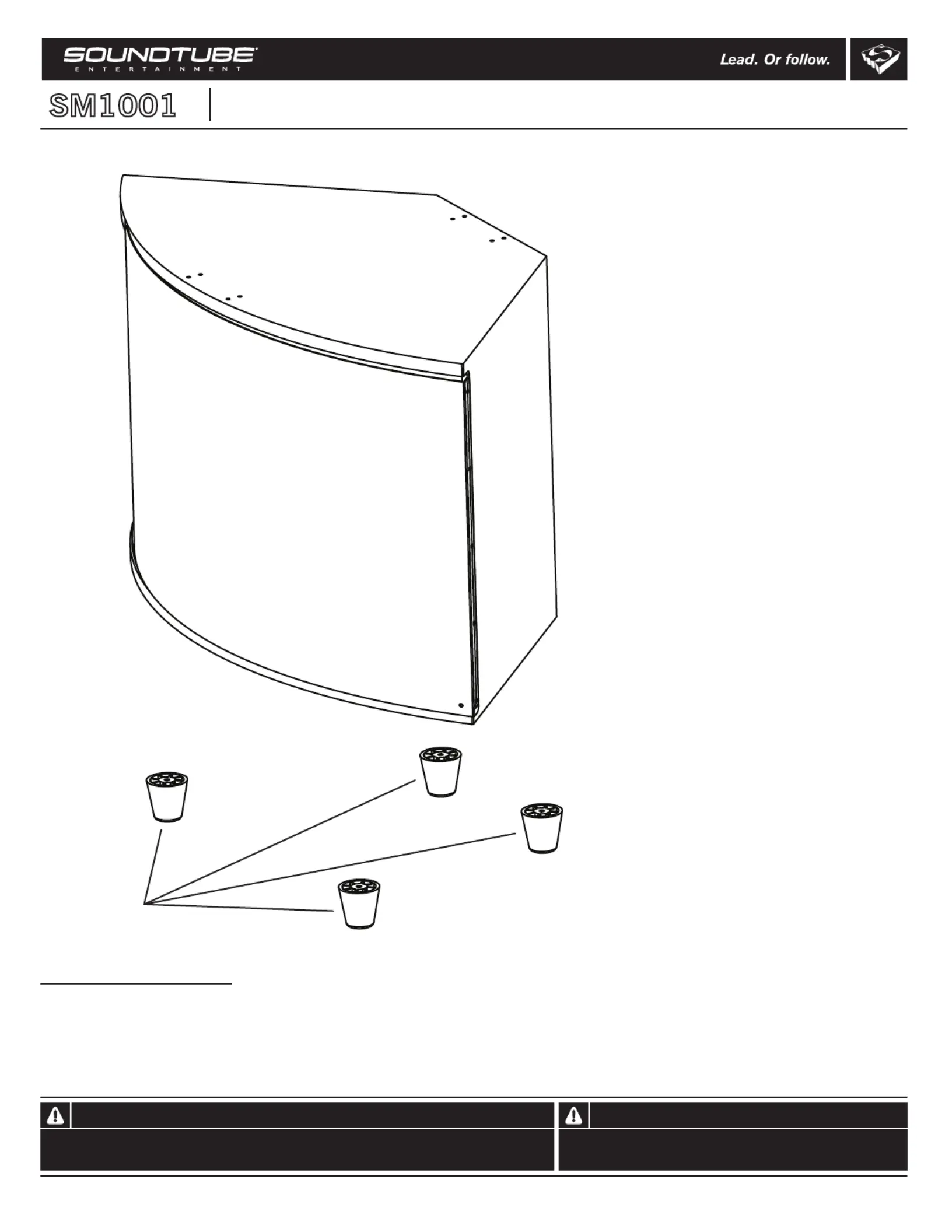

Removable feet

Box contents: SM1001

1 Subwoofer

4 Removable feet

The SM1001 ships without

mounting accessories.

Optional accessories include:

1. P350 1RU 350 Watt Subwoofer Amplifier

2. Surface Mount Bracket (AC-SM1001p-S)

3. Corner Mount Bracket (AC-SM1001p-C)

Mounting brackets include

mounting instructions.

Install Instructions For:

SM1001 Passive Subwoofer

SM1001

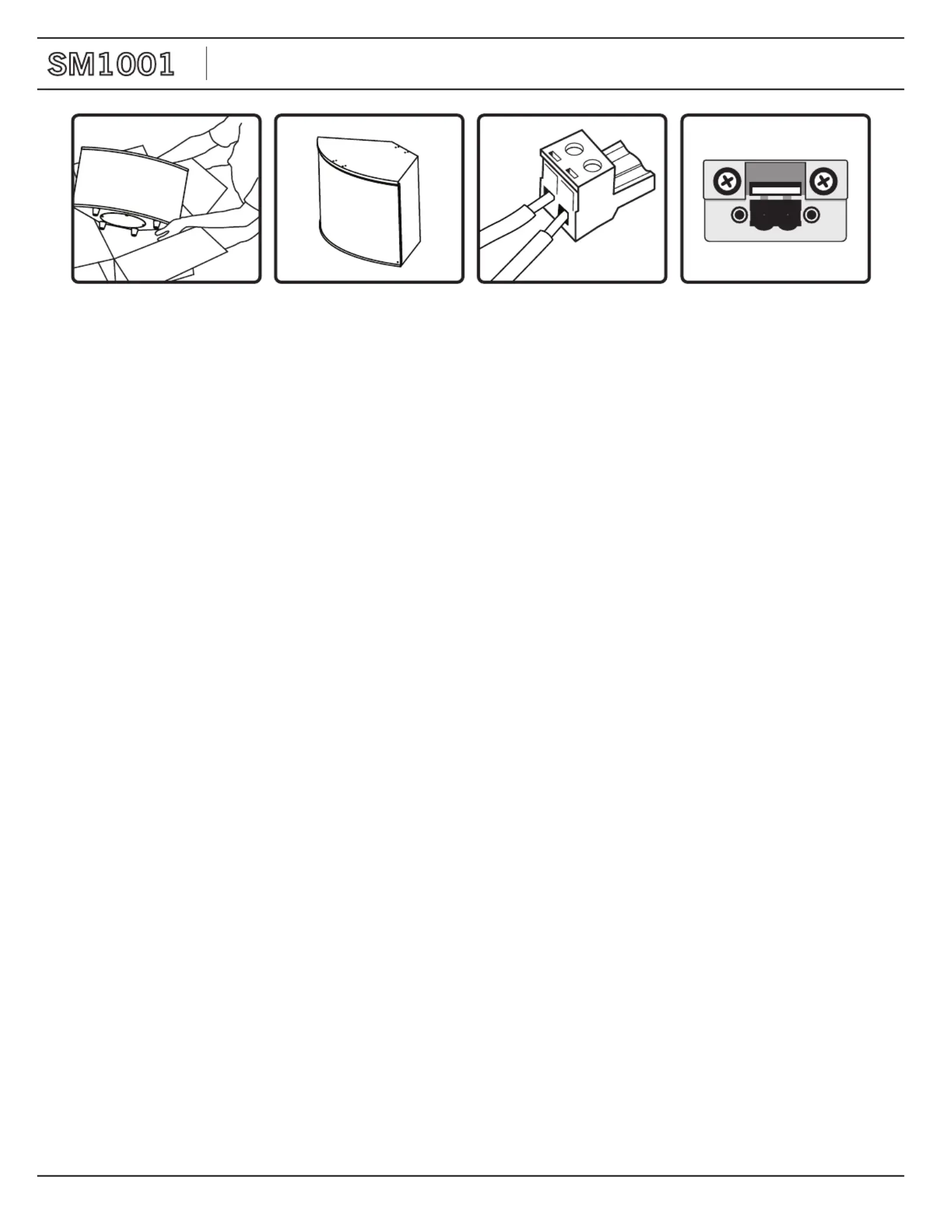

3. Connect speaker signal

wires to the Euroblock

connector.

4. Insert the wired Euroblock

connector into the connector

on the back of the subwoofer.

It is recommended to set

the low-pass frequency on

the amplifier between

80 - 150 Hz.

1. Unpack subwoofer. Place in desired location.2.

SM1001

Floor-mount Installation For:

SM1001 Passive Subwoofer

1.435.647.9555

| | 800.647.TUBE

www.soundtube.com

Do not spec or install speaker near support beam, ventilation duct or

other structure that may interfere with speaker function or dispersion.

Warning Warning

SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for

optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

Speaker brackets

Mounting screws

Corner-mount bracket

Note: Speaker ships separately.

Security screw

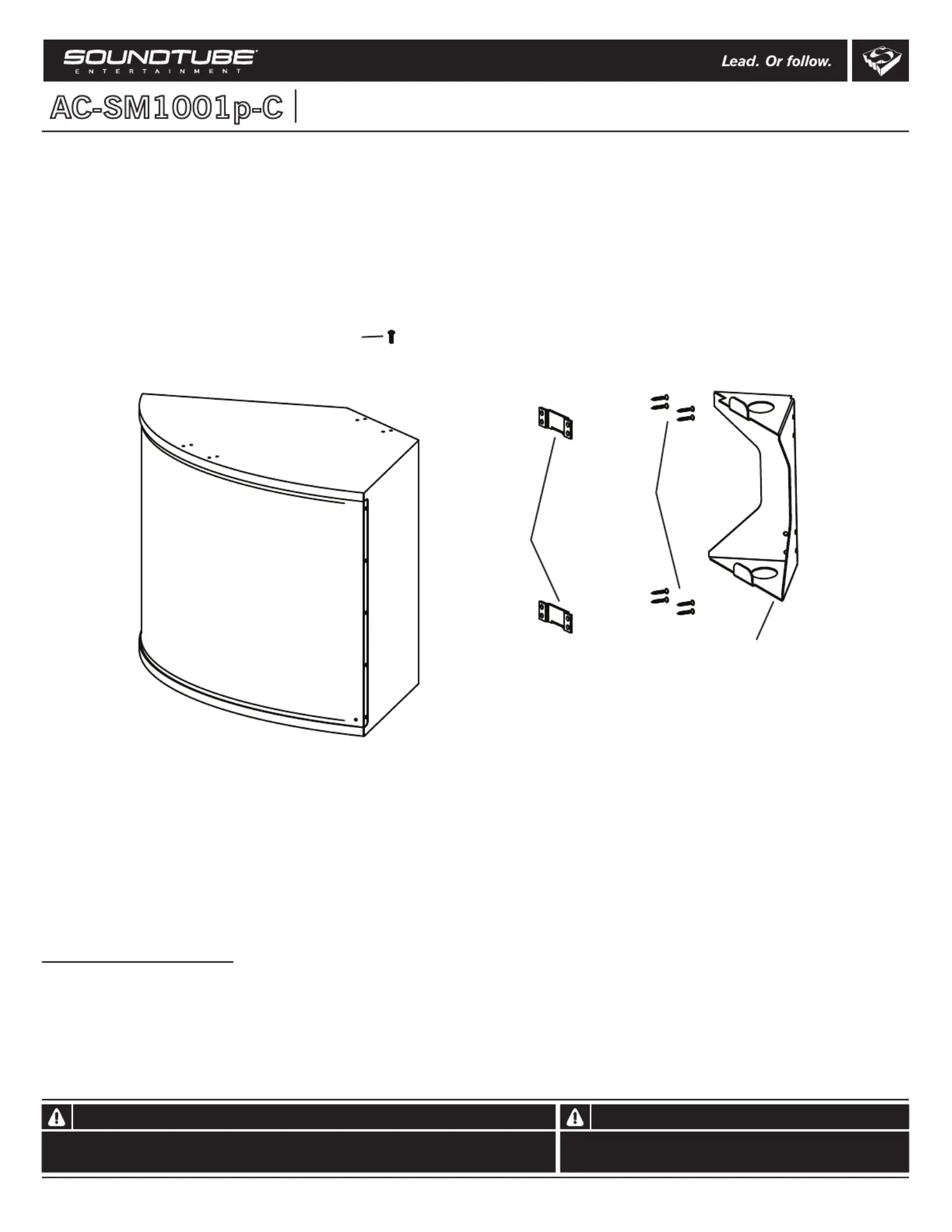

Box contents: Corner-mount kit

1 Corner-mount bracket

2 Speaker brackets

8 Fasteners (1/2 inch wood screws)

1 Security screw

Alternate optional accessory is a surface mount bracket (AC-SM1001p-S).

This bracket is also compatible with the SM1001 Passive Subwoofer.

Install Instructions For:

SM1001 Corner Mount Bracket

AC-SM1001p-C

Produktspezifikationen

Marke:	SoundTube
Kategorie:	Subwoofer
Modell:	SM1001
Produktfarbe:	Schwarz
Impedanz:	4 Ohm
Energiequelle:	AC
Material:	MDF-Platten
Verpackungsart:	Box
Anzahl des Antriebs:	2
Subwoofer-Treiberdurchmesser (imperial):	10 "
Subwoofer Effektivwert Energie:	175 W
Subwoofer Frequenzbereich:	26 - 150 Hz
Subwoofer Empfindlichkeit:	88 dB
Breite des Subwoofers:	622.3 mm
Tiefe des Subwoofers:	317.5 mm
Höhe des Subwoofers:	393.7 mm
Tieftönergewicht:	14500 g
Gesamtleistung des Subwoofers:	W
Subwoofer-Treiberdurchmesser:	254 mm
