Box contents

1 Speaker

1 Terminal weather boot

1 Mounting bracket

1 Safety cable

1 Euroblock connector

1 5 mm Allen hex key

1 Paint mask

© 2011 SoundTube Entertainment, Inc. All rights reserved. PN INS-SM890i Rev 08.02.11

SM890i and SM890i-WX UL listed 1480 UEAY

Install Instructions For:

SM890i and SM890i-WX

1.435.647.9555

|| 800.647.TUBE

www.soundtube.com

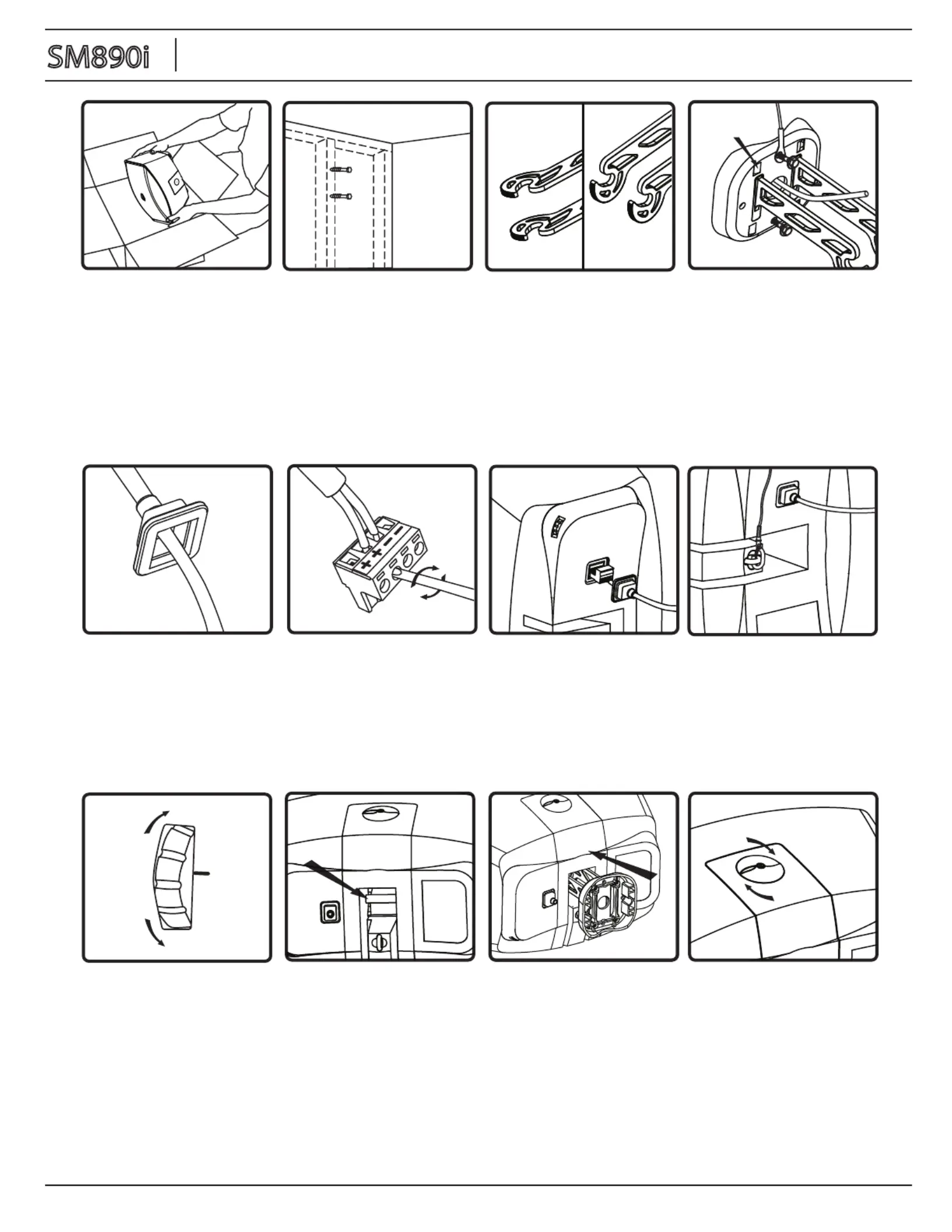

Clamp knob

Mounting bracket

Tap switch

Do not spec or install speaker near support beam, ventilation duct

or other structure that may interfere with speaker function or

dispersion.

WarningWarning

SoundTube speakers must be installed by a professional audio installer/contractor. For safety

and for optimum audio performance, installer must follow all directions issued by SoundTube

Entertainment.

Grille

Grille retention knob

Terminal weather boot

Euro block

Signal wire

SM890i

Rotatable horn

3.To replace horn assembly,

insert horn 1/8 turn from nal

position and rotate clockwise to

tighten. Horn is fully engaged

when horn bae throat is aligned

with speaker.

4. Attach grille by pressing down

gently and rotating the retention

knob clockwise to vertical postion.

Grille retention knob will snap into

the matching recess in the grille

when fully engaged.

2.To release the horn, insert

hand into horn throat and twist

horn assembly counter-clockwise.

1.To remove the grille, rotate

the grille retention knob

counter-clockwise while gently

pushing down on the grille.

Remove the grille from the

speaker by pulling gently on the

grille retention knob.

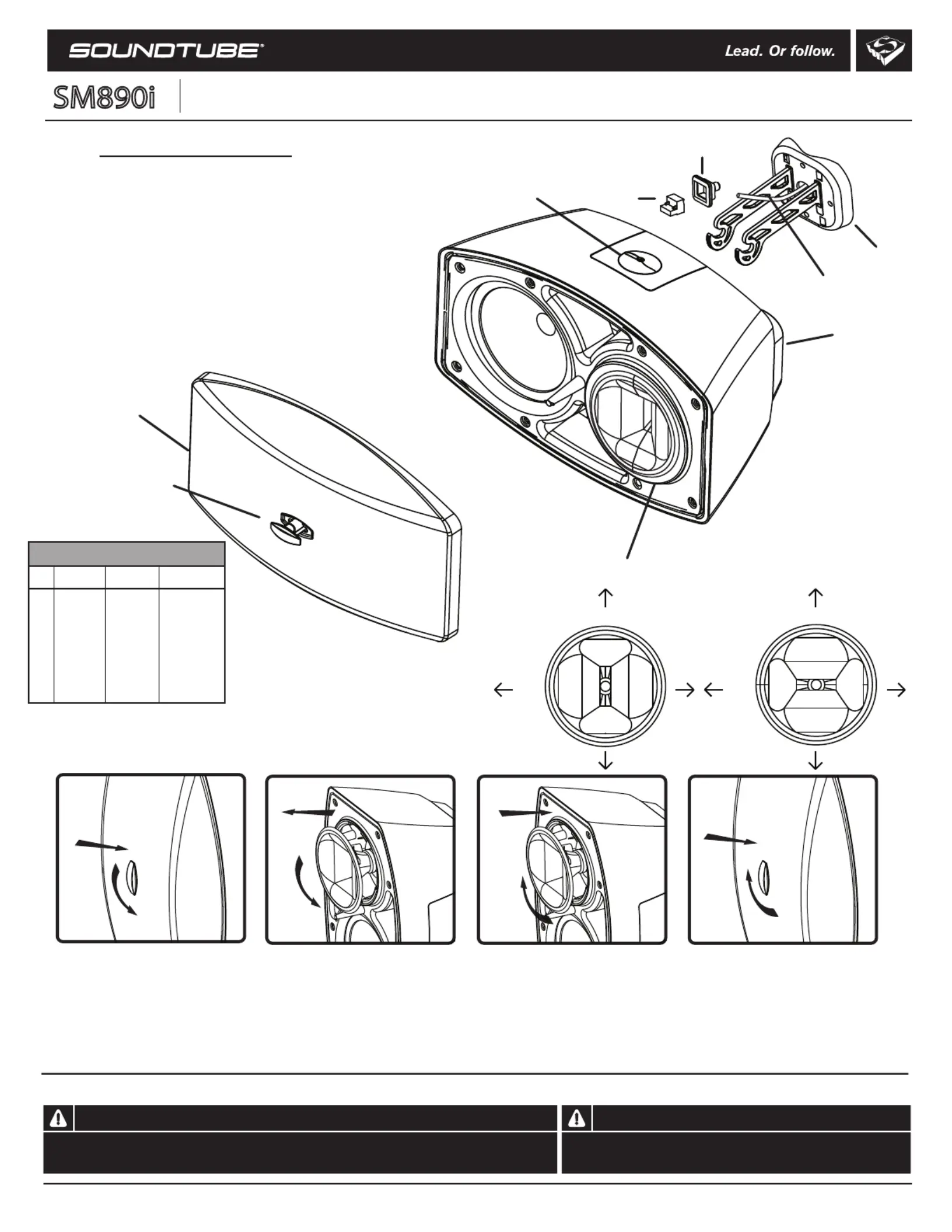

The SM890i has a rotatable horn for 85° or 110° coverage.

Speaker ships in the 110º vertical (85º horizontal) position. To change to

85º vertical (110º horizontal), follow these directions:

110º

100v 70v 25v

6 Direct Direct Direct

5 X15019

4 150

75 10

3 75 38 5

2 38 19 2.5

1 19 10 1.3

Tap Setttings

85º

110º

85º
