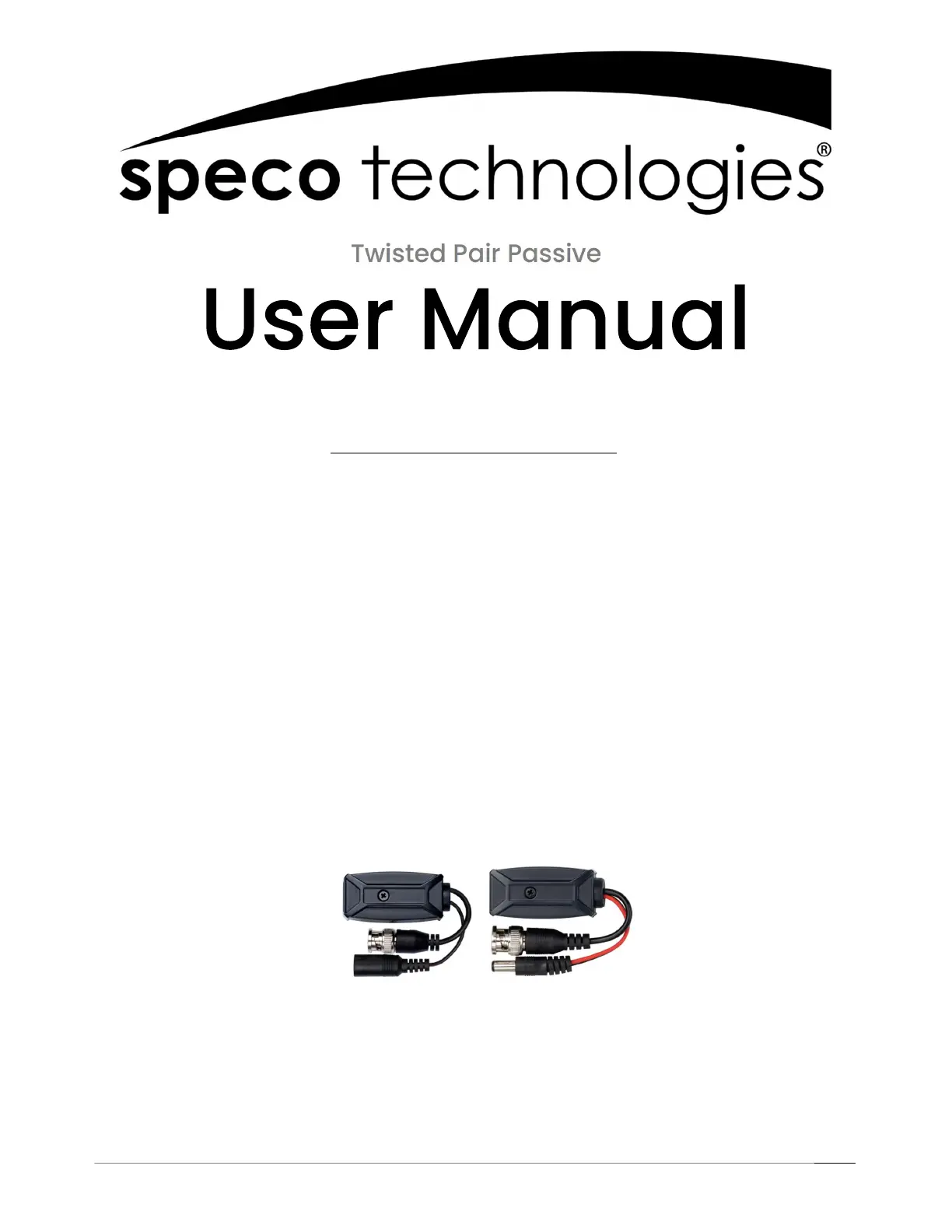

Seite 1/4
V1.0
Model : TVIUTPPTP
HD-TVI Video & Power Balun with Pigtail
(Transmitter and Receiver)
1
User Manual
TVIUTPPTP
Introduction
TVIUTPPTP are video balun that can use a single cost-effective Ethernet cable to extend HD-TVI/ AHD/
HDCVI/ CVBS signal and power, with HD-TVI transmission distance of up to 656’ (200M)@5MP. The
equipped power plug can also provide power from a local power supply to a remote CCTV camera and the
pigtail design allows you to have an easier, faster connection experience. Also, the balun has built-in ESD,
EFT, and surge protection components, allowing the unit to have a longer lifespan.
Features
Resolution up to 5MP HD-TVI
Video transmission distance up to 820’ (250M) and power transmission distance up to 328’
(100M) over CAT5e (or greater) cable.
Built with DC jack for power transmission.
Male BNC to RJ45 connector with pigtail design.
Built-in ESD, EFT (impulse noise) and transient protection.
Installation View
We recommend using our 12VDC PSW5 power supply (sold separately) for most cameras. (Please
check your camera specs). If you are using DC24V as your remote power source, please use our
VID2412CONV power converter (AC to DC for regulated DC12V ) at camera side to send regulated
DC12V for camera use.
Transmission Distance
Video ONLY Transmission Distance
HD
-
TVI
AHD
HDCVI
CVBS
1080P 820’ (250M)
5MP
656’ (
200M
)
1080P 820’ (250M)
4MP
656’ (
200M
)
1080P 984’ (300M)
4K
656’ (
200M
)
1312’ (400M)
The distance may be affected by the quality of cable, camera, or recorder. This installation should be made
by a qualified technician and should conform to all local codes.
2
User Manual
TVIUTPPTP
Power Transmission Distance
Voltage Drop According to Cable Length (24AWG)
Voltage
DC12V
Distance
164’
50M
328’
100M
984’
300M
Camera Power Consumption
2
PAIR
S
2
PAIR
2
PAIR
50mA
11.8
11.5
10.8
100mA
11.5
10.9
9.6
150mA
11.2
10.4
8.4
200mA
11
9.9
7.2
250mA
10.7
9.4
5.9
300mA
10.4
8.9
4.7
350mA
10.2
8.4
3.5
400mA
9.9
7.9
2.3
450mA
9.6
7.5
1.1
500mA
9.3
7
1.2
1A
6.8
2.7
X
1.5A
4.1
X
X
Panel View
Front Rear
Recommend Cable
Use high quality CAT5e UTP or CAT6 UTP cable. The max operating distance is 984’ (300M) for AHD/CVI
cameras, & HD-TVI maximum distance is 820’ (250M). Distance may be affected by the quality of cable,
camera, or recorder.
Caution
1. The cabling must be kept away from any equipment with electromagnetic wave, i.e.: microwave,
mobile phone, radio equipment, high voltage power cable, etc..
2. For Remote Power by DC24V please use our model no: VID2412CONV power converter (AC to DC for
regulated DC12V) at camera side to send regulated DC12V for camera use.
Voltage
D
C24V
Distance
164’
50M
328’
100M
984’
300M
Camera Power Consumption
2
PAIR
2
PAIR
2
PAIR
5
0mA
23.6
23.3
22.8
100mA
23.3
22.7
21.6
150mA
23
22.3
20.4
200mA
22.8
21.8
19.1
250
mA
22.5
21.3
17.9
300mA
22.2
20.8
16.7
350
mA
21.9
20.3
15.5
400
mA
21.7
19.8
14.2
450
mA
21.4
19.4
13
500mA
21.1
18.9
11.8
1Amp
18.7
14.7
0.8
1.5Amp
16.1
10
X
RJ-45 Jack Pin Definition
