Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: May 7, 2021 4:07 PM

USB-C™ Single Monitor Docking Station - DisplayPort or VGA - 3x USB-A / 1x USB-C - GbE - 65W PD

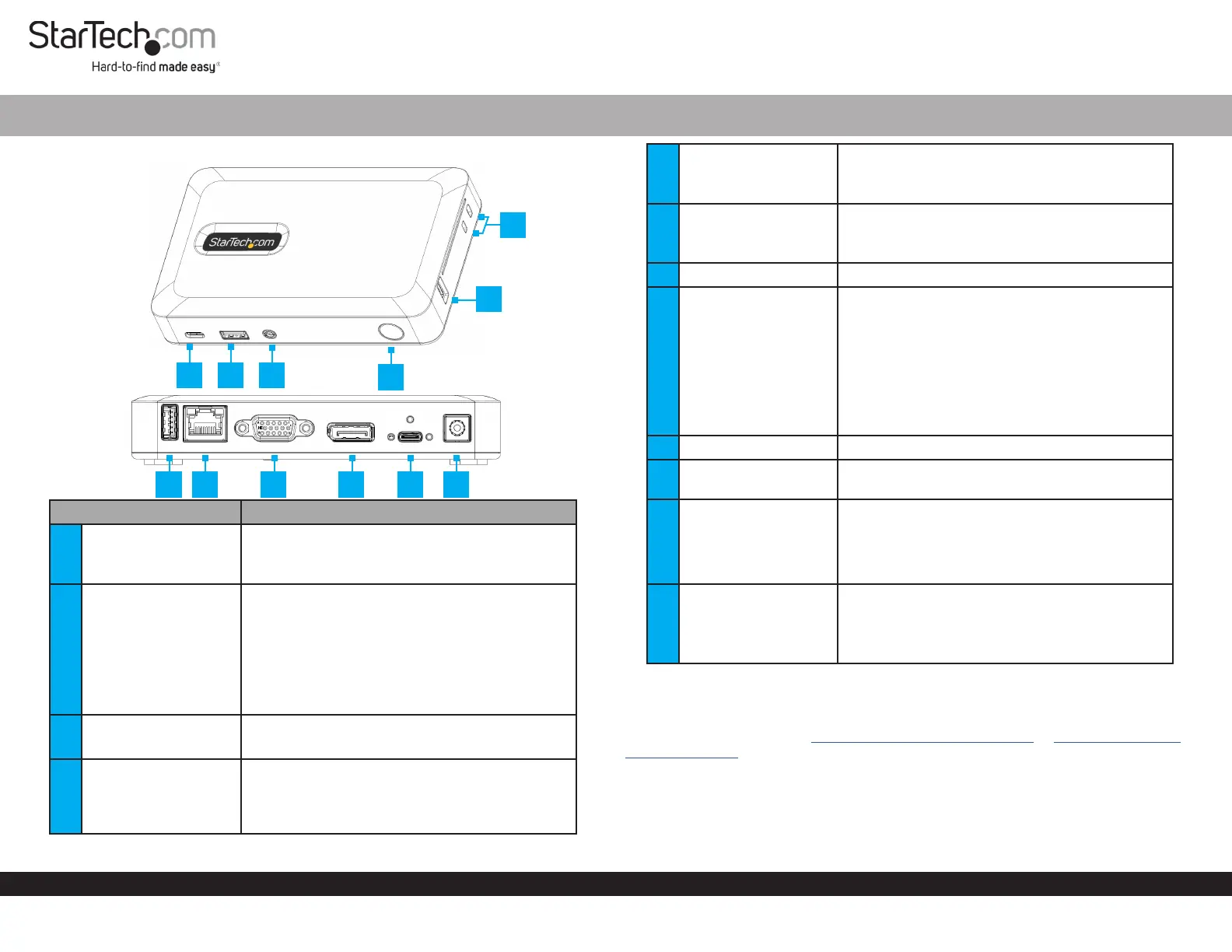

Product Diagram (DKM30CHDPD/ DKM30CHDPDUE)

ComponentFunction

1USB-C Port

• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)

• Connect a USB-C Peripheral Device to the

USB-C Docking Station

2

USB-A Battery

Charging Port

• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)

• Supports up to 5V at 1.5A, 7.5W charging

• Connect a USB-A Peripheral Device to the

USB-C Docking Station

• Fast-charge USB Peripheral Devices

that comply with USB Battery Charging

specication Revision 1.2

33.5mm Audio Port

• 4 Position Audio Jack for Headset use

• Connect an Audio Device

4Power Button

• Power the USB-C Docking Station on and o

• Integrated LED Indicator is illuminated white

when the USB-C Docking Station is powered

on

5USB-A Port x 2

• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)

• Connect USB-A Peripheral Devices to the

USB-CDocking Station

6Lock/Nano Lock Slots

• Connect a K-Slot or Nano K-Slot Style

Locking Device

• Deter theft of the USB-C Docking Station

7RJ45 Port• Connect a Network Device

8

RJ45 LEDs (above the

RJ45 Port)

• Left (Link Speed) LED:

• Amber = 1Gb

• Green = 100Mb

• None = 10Mb

• Right (Link State) LED:

• Solid Green = Link Detected

• Flashing Green = Network Activity

9VGA Port• Connect a VGA Enabled Display Device

10DisplayPort Port

• Connect a DisplayPort Enabled Display

Device

11USB-C Host Port

• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)

• Power Delivery 3.0 Specication

• Connect a Host Laptop, using the Locking

USB-C Host Cable

12DC Power Input Port

• Connect the Universal Power Adapter to

supply power to the USB-C Docking Station

• Type-N barrel connector

• 19.5V 6.15A

Product Infomation

For the latest product information, technical specications, manuals, and Declarations

of Conformance please visit: www.startech.com/DKM30CHDPD or www.startech.com/

DKM30CHDPDUE

123

4

5

6

57/891011

12
