Introduction

Thank you for purchasing a StarTech.com Single-Mode Media

Converter. This product offers a cost-effective method of bridging

two Ethernet networks using single-mode fiber optic cable, at dis-

tances up to 30km (~19 miles).

Features

• Simple installation and use

• Supports full or half-duplex operating modes

• Supports loop-back testing

Before You Begin

System Requirements

• Fiber Cable

• 10Base-T; Cat 3, 4 or 5 or 100Base-Tx, Cat 5 or 6 cable

• Power source

Contents (per unit)

• Media Converter (1)

• 12V DC Power Adapter (1)

• Instruction manual (1)

Basic Setup

1. Connect the fiber interface cable to the Unit. Using UTP cable,

connect the ethernet connection to the RJ45 jack.

2. Set the switch (full/half) according to the specifications of Duplex

your equipment.

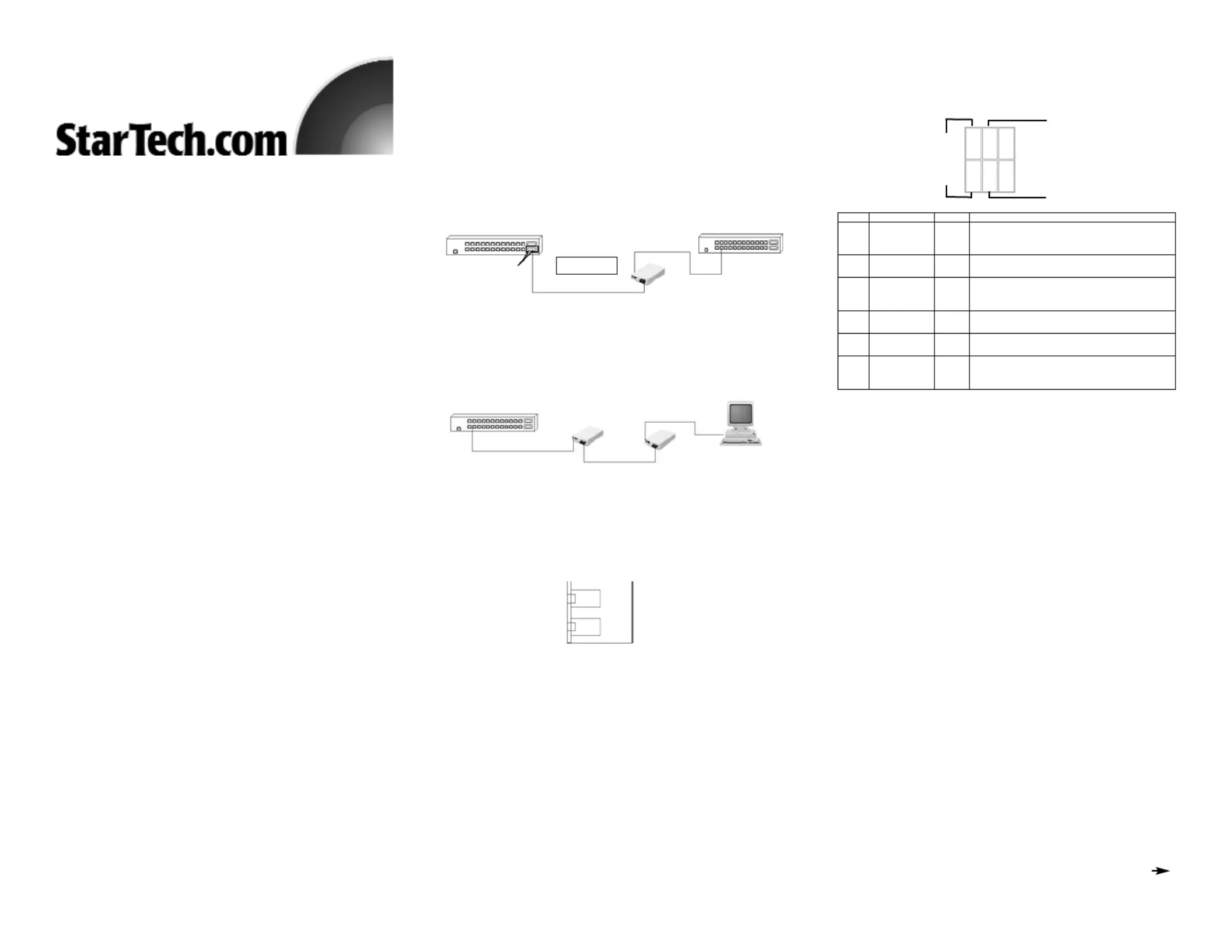

Media Converter Connections

The following example illustrates the connection scheme when

connecting from a 10Base-T/100Base-TX port of one hub to a

100Base-FX port of another hub, through the fiber converter:

The following example illustrates the connection scheme when con-

necting from a 10Base-T/100Base-TX port of one hub to a 10Base-

T/100BASE-TX Network Interface Card (NIC) in a computer through

the fiber converter:

Front Panel DIP Switch Settings

1. Full/ Half:

The Fiber and UTP Duplex will be configured in Full-duplex or Half-

duplex. *This switch includes an “Auto Reset” function so the

power-reset is not necessary when any modification is made

here.

2. NORM / LBT - Loop-back test :

(NORM = Not Active, LBT ON = Active) If the local sidePlease note:

loop-back test is active, then LEDs (except PWR) will all blink

rapidly and refresh to display the remote side status.

10/100 Single Mode Media Converter (SC – 30km)

ET90110SM30

LED Function State Status

PWR Power Indicator

Off

Blinking

Converter has power

Converter has no power

LB testing & Get CPE status function enabled

Fiber

Full

Mode display

Off

Fiber side Full Duplex mode

Half-duplex mode

Link Fiber link

Off

Blinking

The fiber link is ok

No link, or the link is faulty

Receiving data on the fiber

100 Link Speed

Off

100Mbps Link Speed

10Mbps Link Speed

Full Mode display

Off

Ethernet side Full Duplex mode

Half Duplex mode

LAN

Link

Ethernet Link

Off

Blinking

The UTP link is ok

No link, or the link is faulty

Receiving data on Ethernet

LED Indicators

The following diagram and chart outline the meaning of each LED

located on the media converter(s):

Fiber Connection

Fiber Cable

100BASE-TX

UTP Connection

RJ-45 to HUB

connection

Fiber Transceiver

connection

Fiber Cable

100BASE-TX

UTP Connection

FULL

LBT ON

HALF

Fiber Full

PWR

100

Full

Link

LAN Link

Cont’d on reverse

NORM

Support, Warranty Information, and Regulatory Compliance Statement

If you ever need help with your product, visit www.startech.com/support and access our comprehensive

selection of online tools, documentation, and downloads. This product is backed by a one-year warranty. In

addition, StarTech.com warrants its products against defects in materials and workmanship for the periods

noted, following the initial date of purchase. During this period, the products may be returned for repair, or

replacement with equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration,

or normal wear and tear.

Limitation of Liability: In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or

their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive,

incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of

or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or

exclusions contained in this statement may not apply to you.

FCC Compliance Statement: This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reason-

able protection against harmful interference in a residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Revised:20 July 2006 (A)

General Specifications

Local Side

Remote Side

Command of Loop-back &

Get remote-side status & Test

Pattern Data

Connecting to

HUB or PC

Connecting to

HUB or PC

CPE status & Test-pattern Data

Additional Features

Loop-back testing, Remote Monitor status, two

frame lengths

Network Standards

Compliance

IEEE 802.3 10Base-T, 100Base-TX, 100Base-

FX. Supports Full Duplex Ethernet Mode

Operating temperature 0°C - 50°C, 10-90% Humidity (non-condensing)

Cable Length 30km (max)

Product Dimensions (LxWxH) 122mm x 85mm x 20mm (4.8 x 3.3 x 0.8 in.)

Product Weight 2.03lbs (0.92kg)

Data Transfer Rate (max.)

200 Mbits/sec (Full duplex)

100 Mbits/sec (Half duplex)

Certifications (regulatory etc.) FCC Class A, CE

Power Adapter DC 12V, 1A, Center Pos.

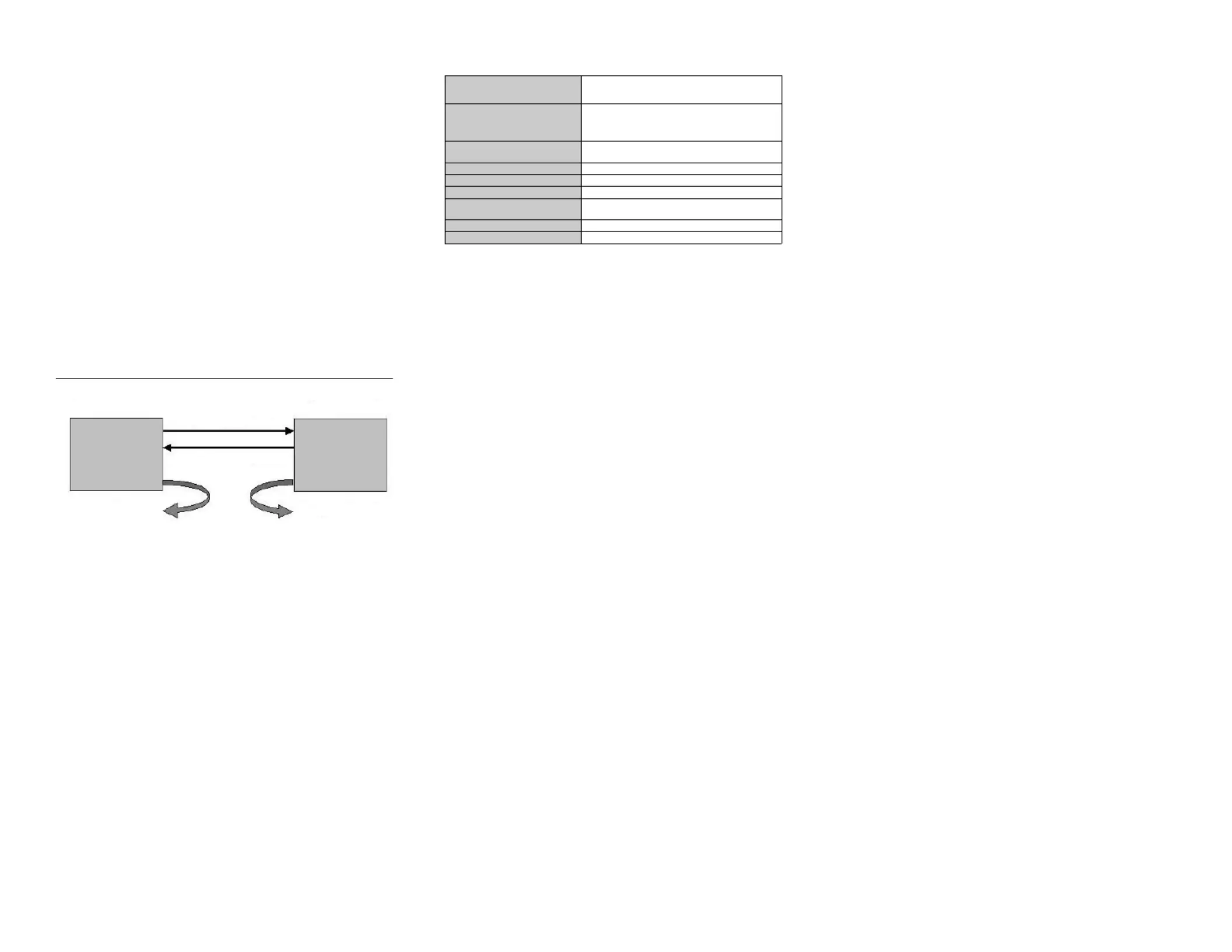

Loop-back Testing (LBT)

& Get CPE status

The fiber media converter incorporates a Fiber Loop-back Testing fea-

ture which allows the system to confirm whether or not the fiber or

Ethernet circuit loop is complete. The local-side unit will send out a

detect message which includes both command and test-pattern data

to the remote-side unit and request for an answer. When the remote-

side unit receives the message, it will attempt to recognize the com-

mand. After the remote-side unit recognizes the command message,

it will deliver the received test-pattern data back to the local-side unit,

completing the circuit loop, and enabling the rack mount unit to easily

monitor the remote side unit(s). The remote side status message

includes the fiber-side link and duplex status, the UTP-side link,

duplex, speed, power, transmission and fiber failure status.

Please note that while Loop-back testing is in process, the fiber side

transmission will be halted.

If the local-side cannot access the remote-side while in Loop-

back Testing mode, only the power LED will flash (rapidly):
