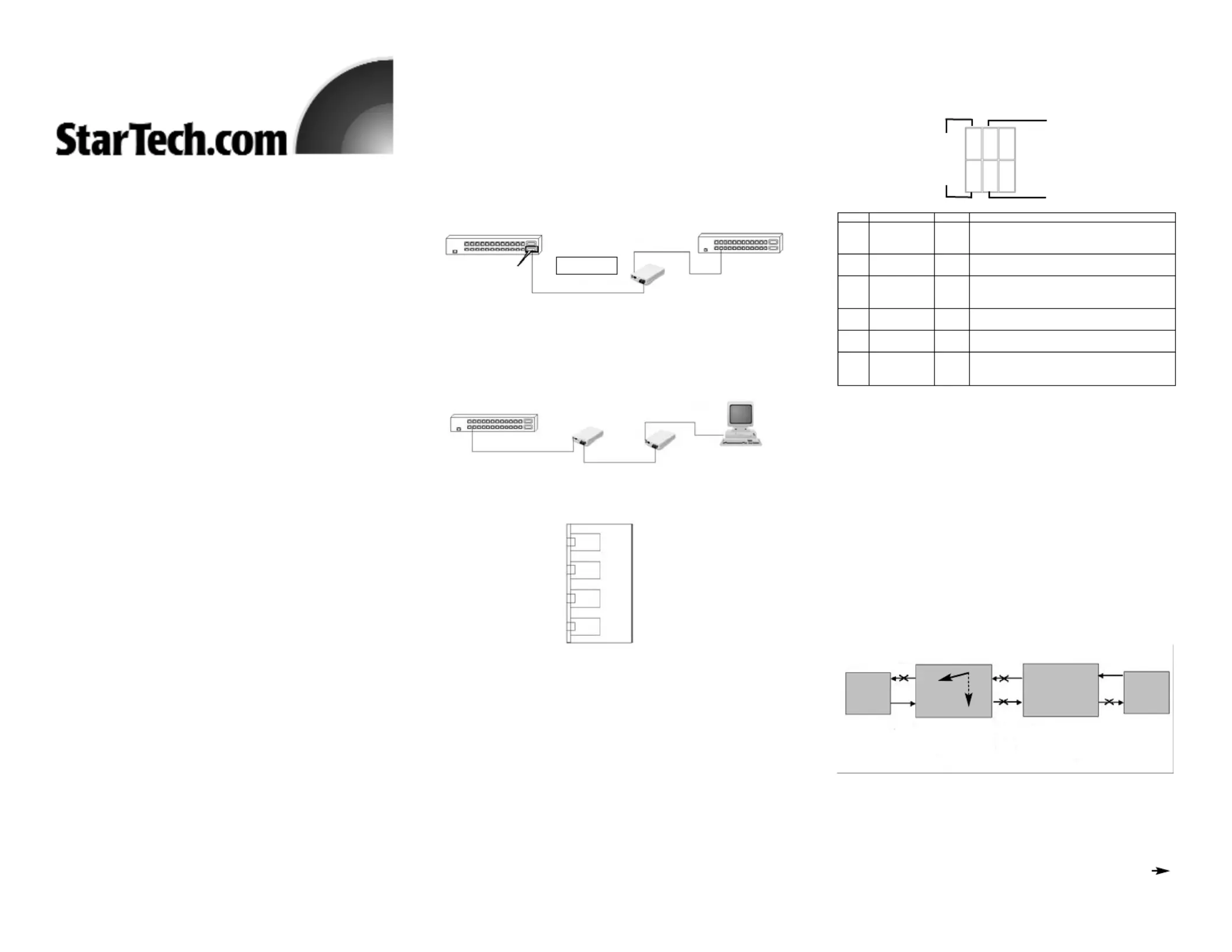

Introduction
Thank you for purchasing a StarTech.com Single-Mode WDM Media
Converter.This product offers a cost-effective method of bridging
two Ethernet networks using single-mode fiber optic cable, at dis-
tances up to 40km (24.85 miles).
Features
•Simple installation and use
•Supports full or half-duplex operating modes
•Supports link-loss forwarding, loop-back testing, remote monitor
status, two frame lengths
Before You Begin
System Requirements
•Fiber Cable
•10Base-T;Cat 3, 4 or 5
or
100Base-Tx, Cat 5 or 6 cable
•Power source
Contents (per unit)
•Media Converter (1)
•12V DC Power Adapter (1)
•Instruction manual (1)
Basic Setup
1. Connect the fiber interface cable to the A-Unit. Using UTPcable,
connect the ethernet connection to the RJ45 jack.
2. Set the switch (full/half) according to the specifications of Duplex
your equipment.
Media Converter Connections
The following example illustrates the connection scheme when
connecting from a 1000Base-TX port of one hub to a 1000Base-
SX/LX port of another hub, through the fiber converter:
The following example illustrates the connection scheme when con-
necting from a 1000Base-TX port of one hub to a 1000BASE-TX
Network Interface Card (NIC) in a computer through the fiber
converter:
Front Panel DIP Switch Settings
1.Full/ Half:
The Fiber and UTP Duplex will be configured in Full-duplex or Half-
duplex.*This switch includes an “Auto Reset”function so the
power-reset is not necessary when any modification is made
here.
2.LBT - Loop-back test and get remote side status:
(OFF = Not Active, ON = Active) If the local side Please note:
loop-back test is active, then LEDs (except PWR) will all blink
rapidly and refresh to display the remote side status.
3.LLF - Link Loss Forwarding (OFF = Not active, On = Active)
Gigabit Single Mode Media Converter (SC – 40km)
ET91000SM40
LEDFunctionStateStatus
PWRPower Indicator
On
Off
Blinking
Converter has power
Converter has no power
LB testing & Get CPEstatus function enabled
FullMode display
On
Off
Fiber side full duplex mode (200mbps)
Half-duplex mode
FXFiber link
On
Off
Blinking
The fiber link is ok
No link, or the link is faulty
Receiving data on the fiber
LBTMode display
Blinking
Off
LB testing & Get CPEstatus function enabled
LB testing & Get CPEstatus function disabled
LLFMode display
On
Off
Link loss forwarding function enabled
Link loss forwarding function disabled
TXEthernet Link
On
Off
Blinking
The UTPlink is ok
No link, or the link is faulty
Receiving data on Ethernet
LEDIndicators
The following diagram and chart outline the meaning of each LED
located on the media converter(s):
Fiber Connection
Fiber Cable
1000BASE-TX
UTPConnection
RJ-45 to HUB
connection
Fiber Transceiver
connection
Fiber Cable
1000BASE-TX
UTPConnection
FULL
LLF
LBT
HALF
Full
PWR
LLF
LBT
FX
TX
Link-Loss-Forwarding (LLF)
ET91000SM40 incorporates a Fiber Link Forwarding feature that
allows indirect sensing of a Fiber Link Loss via the 1000 Base-TX
UTP connection.Whenever the media device detects a Link Loss on
the Receive fiber (Fiber LNKOFF), it disables its UTPtransmitter so
that a Link Loss condition will be sensed on the receive UTPport (as
depicted in the following diagram).The Link Loss can then be easily
monitored and reported at the remote UTP port’s host equipment.
This feature has no effect on the media converter’s UTP LNK LED,
which continues to function normally, independent of the state of the
Fiber LNK LED and the UTP transmitter.This feature enabled by
default.
Switch
or PC
RX
TX
(off)
UTP
Link
Fail
RX
TX
(off)
Fiber
Link
Fail
Switch
or PC
RX
RX
TX
TX
Remote Fault
UTP
Fiber Break Responses
Cont’d on reverse
Produktspezifikationen
| Marke: | StarTech.com |
| Kategorie: | Audio/Video-Konverter |
| Modell: | ET91000SM40 |
| Gewicht: | 690 g |
| Paketgewicht: | 720 g |
| Vollduplex: | Ja |
| Maximale Datenübertragungsrate: | 1000 Mbit/s |
| Abmessungen (BxTxH): | 40 x 490 x 260 mm |
| Weitere Anschlüsse: | 2x Fiber Optic SC Female\n1x RJ45 Female |
