Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: December 2, 2020

Product Diagram (HB31C3A1CME)

Front View

Rear View

PortFunction

1USB-C Port

• SuperSpeed USB 10Gbps (USB 3.2 Gen 2)

• Supports USB BC 1.2 charging

• Supports surge and 15KV ESD (Electrostatic

Discharge) protection

• Connect to the USB-C Peripheral DevicesHub

2USB-A Ports (x 3)

• SuperSpeed USB 10Gbps (USB 3.2 Gen 2)

• Used to connect ( x 3) to USB-A Peripheral Devices

the .Hub

• Supports USB BC 1.2 charging

• Supports surge and 15KV ESD (Electrostatic

Discharge) protection

3Mounting Holes

• Wall mount the Hub

• Mount the to the side/underside of a Hub Desk

4USB-C Host Port

• SuperSpeed USB 10Gbps (USB 3.2 Gen 2)

• Connect the to a HubHost Computer

52-Wire Terminal Block

• Connect an external (+7 - 24V DC DC Power Source

Input) to the Hub

6Power Input Port• Connect a to power the DC 12V Power SourceHub

4-Port Industrial USB-C™ 10Gbps Hub - 3x USB-A + 1 USB-C - ESD + Surge Protection

Package Contents

• USB Hub x 1

• Universal Power Adapter (NA, JP, UK, EU, ANZ) x 1

• Terminal Block Connector x 1

• USB Type-C to Type-C Cable x 1

• USB Type-C to Type-A Cable x 1

• Quick-Start Guide x 1

Requirements

For the latest requirements, please visit:

www.startech.com/HB31C3A1CME.

• Mounting Screws (x 2)

Tools

• Phillips or Flat Head Screwdriver

• Writing Utensil

• Level

Installation

Warning: Connect the after all the other installation steps Universal Power Adapter

have been completed.

Notes: There are two ways to power the . Hub

It is recommended to use an external or a DC Power Source Terminal Block Power

Source (+7 - 24V DC)2-Wire Terminal Block connected to the to ensure full and

stable function.

Connect the USB Ports

1. Connect a (included) to the on theUSB Type-C to Type-C CableUSB-C Host Port

rear of theand to a on the . Hub USB-C Port Host Computer

2. The should detect the and automatically Host Computer’s Operating SystemHub

install it.

3. Connect the to the and the (x3) USB Peripheral DevicesUSB-C PortUSB-A Ports

on the front of the .Hub

Power the Hub

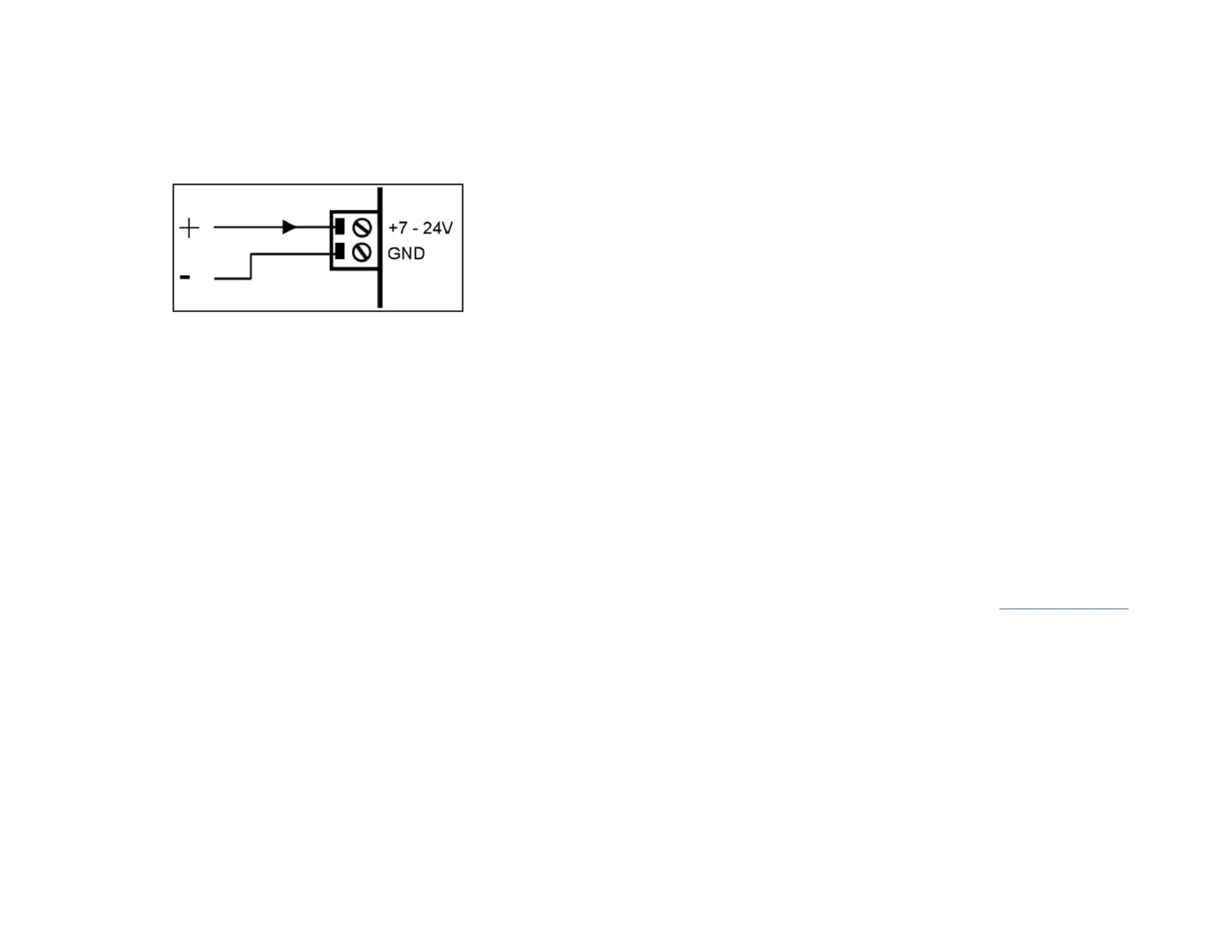

Power the Hub Using the 2-Wire Terminal Block

1. Remove the from the rear of the .Terminal Block Connector HousingHub’s Casing

1

2

45633
