Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 08/13/2020

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• RKPW161915 Power Distribution Unit

• Installation Guide

System Requirements

• 19” front/rear mounting rack/cabinet (EIA 310-D compliant)

• 125VAC power source

RKPW161915

16 Outlet PDU Power Distribution Unit 125V 15A (12A UL)

*actual product may vary from photos

Installation

1. The power distribution unit takes up 1U of rack space, so locate an

appropriate location on the rack and mount it against the front or

rear mounting posts.

2. Using the mounting hardware (screws, nuts, etc.) provided with

your rack or from your rack manufacturer, secure the unit to the

posts.

3. Connect the power cable from the distribution unit to a 125VAC

power source.

Note: It is recommended that the unit be connected directly to a

main source and not another distribution unit.

4. Toggle the “Reset” switch on the front of the unit to the ‘on’

position to energize the unit.

5. The “Power” and “Surge” LEDs should light up to indicate surge

protection is active. The “Ground” LED should light up to indicate

proper grounding is present.

Note: If the “SURGE” LED indicator is o, the surge protection circuit

is compromised. Power cycle the power strip by toggling the power

switch to the “OFF” position and back to the “ON” position. If a

power cycle does not remedy the issue, it is likely the power strip has

absorbed a power surge. Please contact your authorized

StarTech.com reseller to purchase a replacement, or StarTech.com if

you require additional support.

6. You may now attach your 125VAC compatible devices to the

distribution unit.

Note: Combined power draw from all devices should not exceed

15A, otherwise the built-in circuit breaker will trip.

7. In the event of an overload scenario, the built-in circuit breaker

will be tripped and power to all outlets will be stopped.

8. Disconnect the problem device or all devices from the distribution

unit and toggle the “Reset” switch to turn the ports back on.

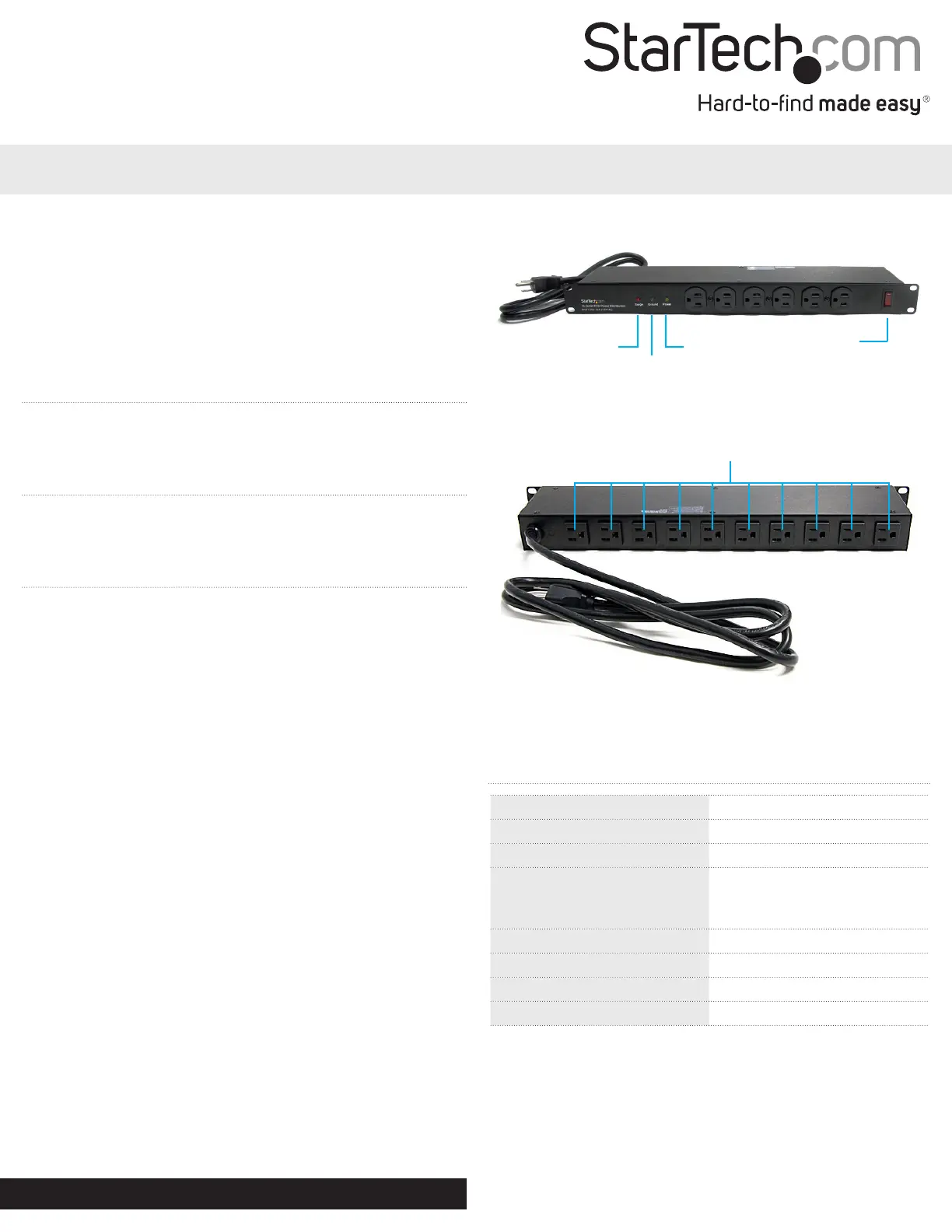

NEMA 5-15 outlets

Reset switch

Ground LED

Surge LED

Power LED

Front View

Rear View

Specications

Number of Power Outlets16

Connectors16 x NEMA 5-15 female

Electrical Rating125VAC / 15A

LEDs

1 x Ground (green)

1 x Surge (red)

1 x Power (yellow)

Operating Temperature-5

o

C to 45

o

C (23

o

F to 113

o

F)

Storage Temperature-25

o

C to 65

o

C (-13

o

F to 149

o

F)

Dimensions482.6mm x 95.5mm x 42.7mm

Weight2360g
