Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 06/07/2011

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1 x 5.25in bay backplane

• 1 x SATA to LP4 Molex power cable

• 1 x Set of keys

• 1 x Package of mounting screws

• 1 x Instruction Manual

System Requirements

• Computer case with available 5.25in front bay

• Available SATA or LP4 Molex power connector from power supply

• Internal SATA or SAS controller

NOTE: SATA drives can be used on SATA or SAS controllers, but SAS

drives can only be used on SAS controllers

• SFF-8087 mini-SAS cable

• 7-pin SATA cable (SATSAS225ODD only)

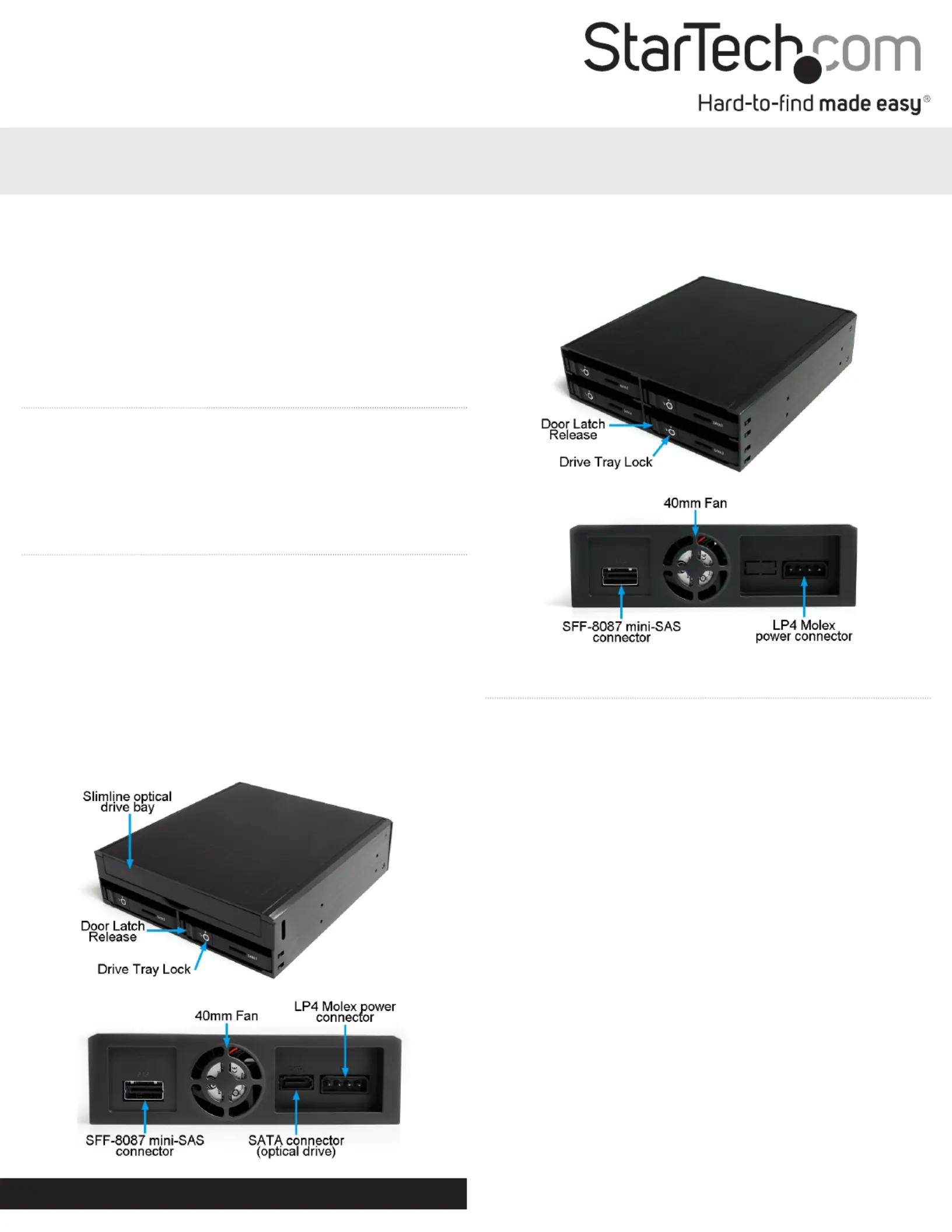

SATSAS425BK

SATSAS225ODD

4 Drive Removable 2.5in SATA/SAS Backplane

Dual 2.5in SATA/SAS Removable Hard Drive + Slim Optical Drive Backplane

*actual product may vary from photos

Installation

5.25in Backplane

1. Turn your computer o and any peripherals connected to the

computer (i.e. Printers, external hard drives, etc.). Unplug the

power cable from the rear of the power supply on the back of the

computer and disconnect all peripheral devices.

2. Remove the cover from the computer case, including any covers

for the 5.25in front bay. Refer to documentation for your computer

system for details.

3. Insert the 5.25in backplane into the front bay. Align the mounting

holes along the sides of the backplane, with the mounting points

of the computer case’s 5.25in bay.

4. Fasten the backplane to the computer case (see documentation

for the computer case for details).

5. Connect an available LP4 Molex power connector from the system

power supply to the rear of the backplane.

NOTE: If the computer system only has SATA power connectors, use

the included SATA to LP4 Molex adapter cable.

6. Connect an SFF-8087 cable into the rear of the backplane and

connect the other end to the SATA or SAS controller.

7. SATSAS225ODD:To use the optical drive bay, connect an

additional SATA 7-pin cable from the rear of the backplane to a

SATA controller port.

8. Place the cover back onto the computer case.

9. Insert the power cable into the socket on the power supply and

reconnect all other connectors removed in Step 1.

SATSAS425BK

SATSAS225ODD

*actual product may vary from photos

Produktspezifikationen
