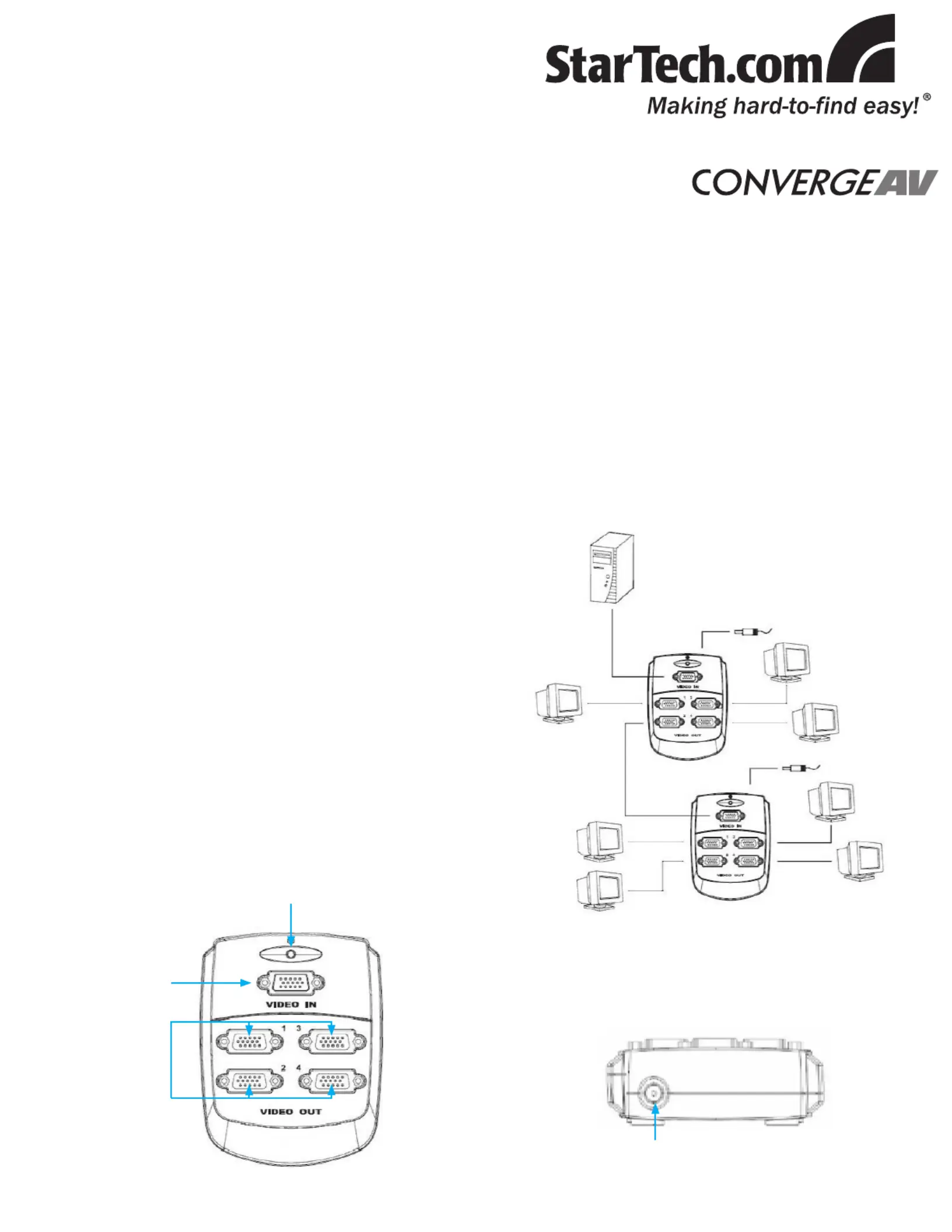

ST122WEU/ST124WEU/ST128WEU

2/4/8-Port VGA Video Splitter - Wall Mount

Installation Guide

Packaging Contents

1 x VGA Video Splitter unit•

1 x Power Adapter•

1 x Installation Guide•

System Requirements

VGA enabled video source•

VGA enabled display device•

Available electrical outlet•

Installation

With the video source device and display devices powered off, 1.

connect a male/female DE-15 VGA cable from the Video In

connector on the splitter to the VGA video output on the source

device.

Using high quality male/male DE-15 VGA cables, connect each 2.

display device to the Video Output connectors on the splitter.

Connect the supplied power adapter from an electrical outlet to 3.

the video splitter.

Power on the connected display devices, followed by the video 4.

source device.

Cascaded Installation

To cascade/daisy-chain multiple video splitters together, use 1.

a male/female DE-15 VGA cable to connect any one of the

Video Out connectors on the primary splitter, to the Video In

connector on the secondary splitter.

A video splitter can be connected to each Video Out connector 2.

on the primary splitter.

Up to three (3) levels of cascading is supported, so connecting 3.

another video splitter to the secondary splitter is possible,

allowing for up to 8 (ST122WEU), 64 (ST124WEU), or 512

(ST128W) video displays to be connected to a single source.

VGA Video Source

Power Adapter

Power Adapter

ST122WGB/ST124WGB/ST128WGB

Top View

Rear View

Power LED

DE-15 VGA connector

(input)

DE-15 VGA connector

(output)

DC Power connector

* ST124WEU/ST124WGB model shown
