PLUMBER NOTE

҃On-site testing using higher water pressures must be conducted

with the Mixer in the closed position. (STATIC TEST)

҃Under no circumstances is the Mixer to be opened when

exceeding the maximum stated water pressure.

҃At the completion of testing, do not relieve any high water

pressure by opening the Mixer.

҃Exposing the internals of the Mixer Cartridge to higher than

specified water pressures will void the manufacturers warranty

INSTALLATION GUIDELINES

҃The Mixer is supplied assembled, only the Fixing nut and the Brass

Clamp need to be removed.

҃Decide if the Optional Base Flange is to be used.

҃If using the Optional Base Flange discard the smaller Base O Ring.

҃Add the base Flange to base of Mixer and attach the Flexible Hoses

to the Mixer Hose extensions.

҃In some cases the Flexible Hoses may need to be fed through from

under the mounting surface and then attach.

҃Once the Flexible Hoses have been secured, lower the Mixer onto

the mounting surface.

҃Working from underneath the mounting surface fit Clamp and

Fixing Nut.

҃Before fully securing the Mixer ensure that the Base O Ring is

intact and the Mixer is centered over the mounting surface hole .

҃The Mixer mounting surface must be completely water-tight.

҃Connect the Hot and Cold Flexible hoses to the corresponding

1/2”BSP water feed lines.

҃The 1/2” connection of the Flexible hoses have a conical seal,

ensure the mating threads are cut square and burr free.

҃Isolating stop valves are recommended with all installations.

(not supplied)

҃Ensure all fittings and connections are water-tight.

NOTE:Optional Base Flange must be used when the clearance

hole for mounting the Mixer exceeds 35mm. If the mounting

hole clearance exceeds 45 mm a custom made Base flange

will be required.

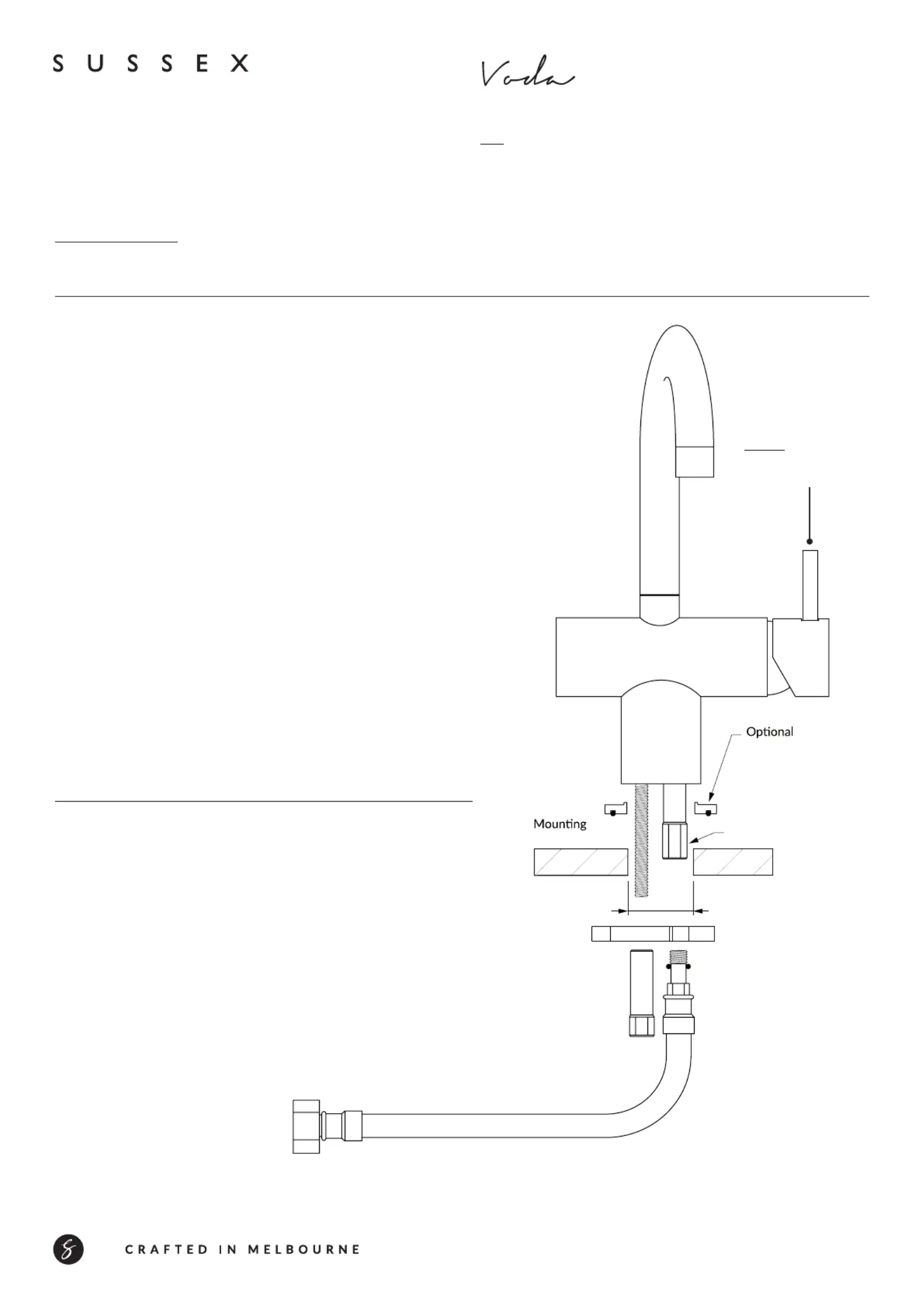

Pin

Handle

Handle

Body

Sink Mixer

Body

Sink Mixer

Stand

32 - 35mm

Hose extension

(Do not remove)

Base Flange

Clamp

Fixing

Nut

Surface

Flexible Hose

Voda Sink Mixer Right Hand

Product code:Available opons:

VSMSink Mixer

VSMCSink Mixer Curved

VSMQSink Mixer Square

VSMCSSRHSink Mixer Curved 316 S/S

VSMQSSRHSink Mixer Square 316 S/S

INSTALLATION GUIDE

sussextaps.com.au

Tapware is to be installed by a Licensed

Plumber in accordance with AS/NZS 3500:2003

Recommended working water pressure 300-500 kpa.

Maximum water temperature is 65 deg.c.

sussextaps.com.au

IMPORTANT NOTE: To provide proper function,

the Sink Mixer must be installed with the handle

to the RIGHT-HAND side of the operator.

NOTE: Mixer handle

to be RIGHT-HAND

side of the operator.
