litres per

minute

Licence No. 0124

In accordance with AS/NZS 6400

Sussex Taps Pty Ltd

WATER RATING

www.waterrating.gov.au

The more

stars the more

water efcient

1

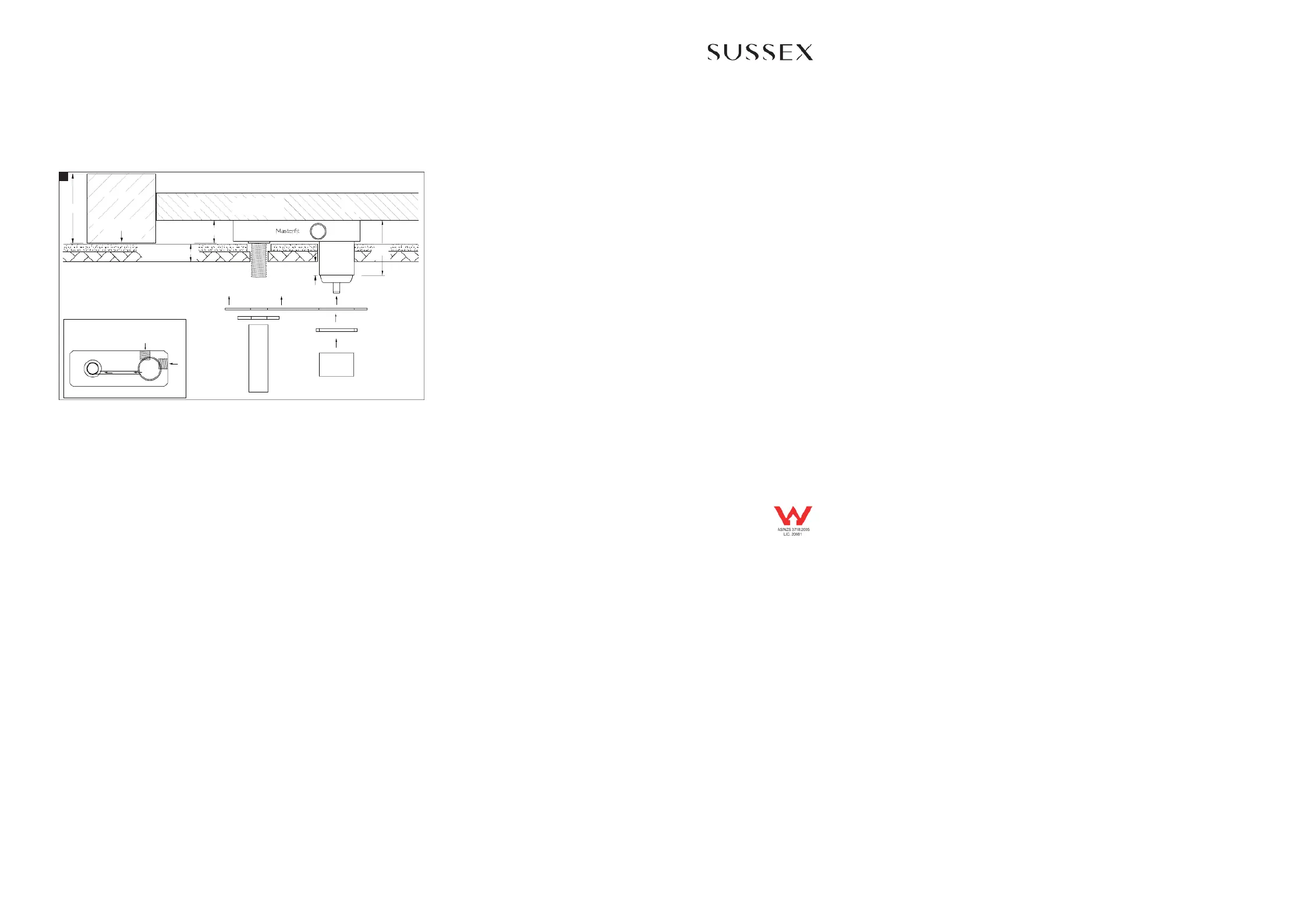

NOGGING

80 mm

B/Plate

Apply Silicone

64mm

Dress

Ring

t

Apply Silicone

Stud Face

Finished

Wall Surface

Handle

Pin

Set

Screw

Handle

Body

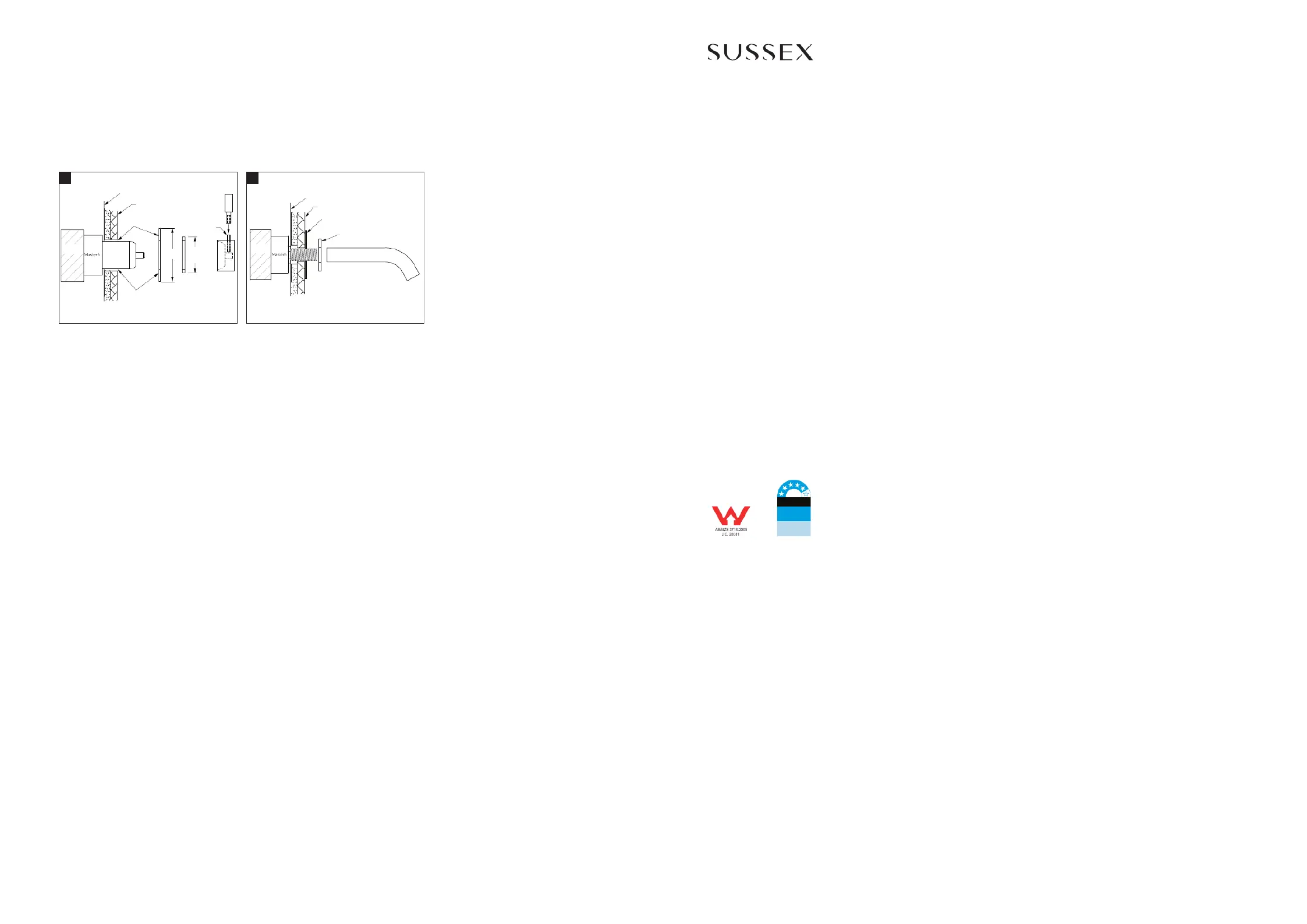

2

NOGGING

t

Stud Face

Finished

Wall Surface

Backplate

Dress Ring

Bath Outlet

Product code

Voda

VWBMS160RH Wall basin mixer outlet system 160mm

VWBMS200RH Wall basin mixer outlet system 200mm

VWBMS250RH Wall basin mixer outlet system 250mm

Wall basin mixer outlet system Dress kit

2. Outlet fit off

1. Mixer dress kit

-Remove Mixer protective cover.

-Using silicone, seal the wall surface around the Mixer and Outlet threads.

-Apply a small amount of silicone to the rear of the backplate prior to mounting onto the wall.

-After Backplate has been mounted, fit the Mixer Dress Ring.

-Fit the handle body onto the Mixer Cartridge Lever ensuring the Handle is fully engaged.

-Secure the Handle Body by tightening the Set screw using the Allen Key provided (tighten well).

-Attach the Handle Pin.

Note: Apply a small amount of silicone or mild adhesive (Loctite) to the thread of the Handle Pin to assist in

preventing the Pin from becoming loose).

-Apply sealing tape (Teflon) to male thread.

-Place Dress Ring and Dress Flange over prepared male thread.

-Fitthe Outlet.

To complete the installation, operate the Mixer(s) checking the flow of both hot and cold water from Outlet.

Check all fittings and fixtures for water leaks.

sussextaps.com.au

Tapware is to be installed by a Licensed Plumber in accordance with AS/NZS 3500:2003

Recommended working water pressure 300-500 kpa. Maximum water temperature is 65 deg.c
