Installation and
Maintenance
Instructions
BASE FAUCET
B-0230, B-0231,
B-0232 and B-0330
P/N: 098-003118-45 Rev.5
Date: 08-07-17
Drawn: TEH
Checked: DMH 09-20-17
Approved: JHB 10-09-17
Español:
Instrucciones de instalación y mantenimiento
Français:
Instructions pour l’installation et la maintenance
Deutsch:
Installations- und Wartungsanleitungen
中文:
安装与维护说明
ES
FR
DE
CN
Limited One Year Warranty
(Commercial Applications)
T&S warrants to the original purchaser (other
than for purposes of resale) that such product is
free from defects in material and workmanship for
a period of one (1) year from the date of purchase.
During this one-year warranty period, if the product
is found to be defective, T&S shall, at its options,
repair and/or replace it. To obtain warranty service,
products must be returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other
transportation charges of the product to T&S and
the return of repaired or replaced product to the
purchaser are the responsibility of the purchaser.
Repair and/or replacement shall be made within a
reasonable time after receipt by T&S of the returned
product. This warranty does not cover Items which
have received secondary fi nishing or have been
altered or modifi ed after purchase, or for defects
caused by physical abuse to or misuse of the
product, or shipment of the products.
Any express warranty not provided herein, and
any remedy for Breach of Contract which might
arise, is hereby excluded and disclaimed. Any
implied warranties of merchantability or fi tness
for a particular purpose are limited to one year in
duration. Under no circumstances shall T&S be
liable for loss of use or any special consequential
costs, expenses or damages.
Some states do not allow limitations on how
long and implied warranty lasts or the exclusion or
limitation of incidental or consequential damages,
so the above limitations or exclusions may not apply
to you. Specifi c rights under this warranty and other
rights vary from state to state.
Attention California Residents:
“WARNING: This product contains chemicals
known to the State of California to cause cancer,
and birth defects or other reproductive harm.”
2

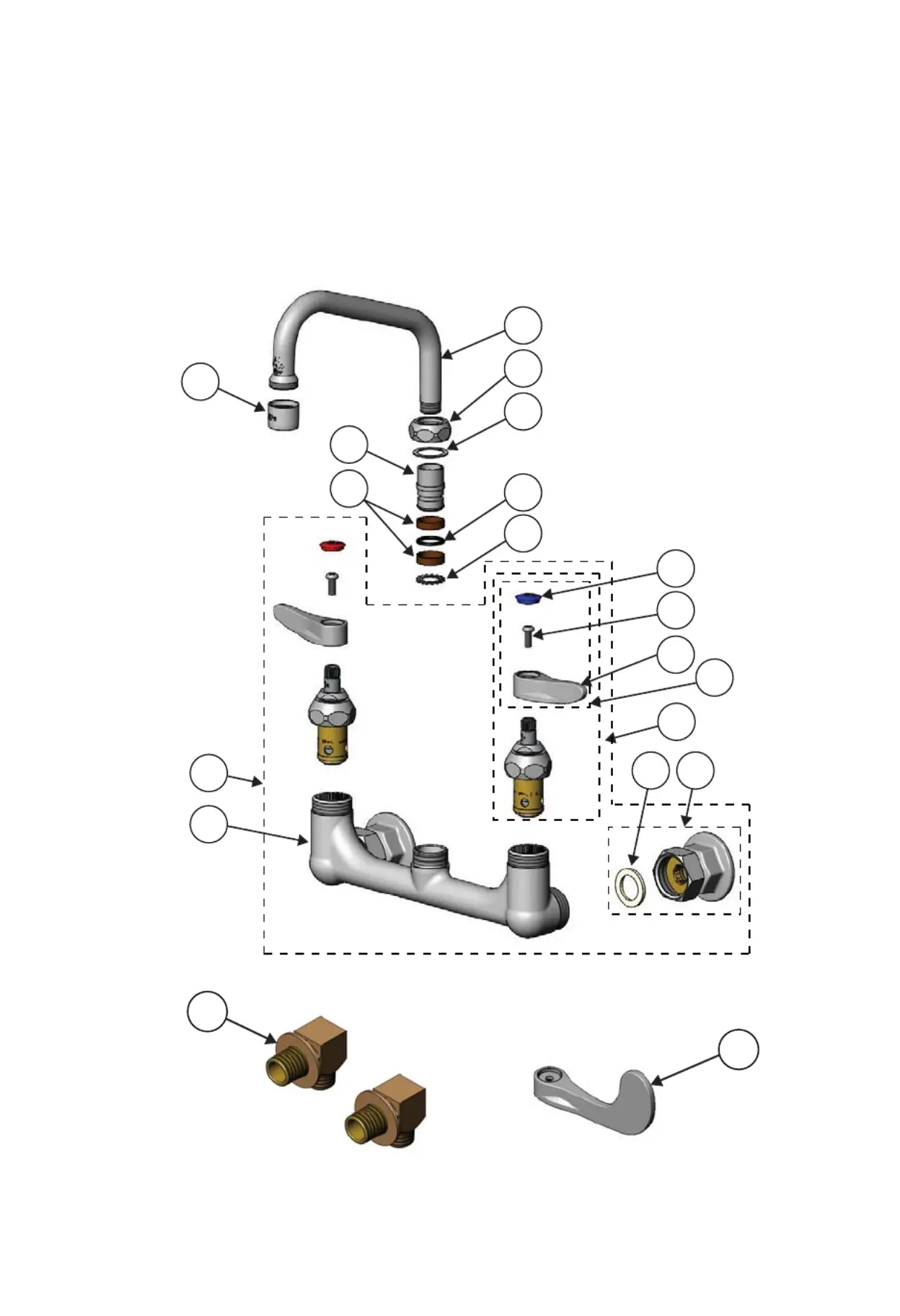

Exploded View
5
9
8
7
4 3
2
1
13
15
14
11
12
16
10
6
17
9
19
3
Base Faucet Assemblies
1 Asm, Faucet (Swivel) B-0230-LN
2 Faucet Body (Swivel) N/A
3 Asm, Coupling Flange 00AA
4 Washer 001019-45
5 Asm, Quarter-Turn Eterna Cartridge (new style) N/A
w/ Spring Checks, Handle, Blue Index & Screw, LTC 002711-40NS
w/ Spring Checks, Handle, Red Index & Screw, RTC 002712-40NS
5 Asm, Quarter-Turn Cerama Cartridge (new style) N/A
w/ Check Valve, Handle, Blue Index & Screw, LTC 012447-25NS
w/ Check Valve, Handle, Red Index & Screw, RTC 012446-25NS
6 Handle, Lever - Cold w/ Index & Screw 001636-45NS
Handle, Lever - Hot w/ Index & Screw 001637-45NS
7 Index, Button N/A
Cold (Blue) 018506-19NS
Hot (Red) 001193-19NS
8 Screw, Handle 000925-45
9 Handles N/A
Lever Handle 001638-45NS
Wrist Action Handle B-WH4-NS
13 Lock Washer 014200-45
19 *Optional Supply Connector Kit B-0230-K
Nozzle Assemblies
10 Asm, Nozzle Swing N/A(includes items 10-16)
Nozzle, 6” 059X
Nozzle, 12” 062X
Nozzle, 18” 065X
Asm, Gooseneck Nozzle 133X (includes items 10-16)
11 Swivel Piece N/A
12 Washer, Swivel Piece 009538-45
Repair Kit (includes items 14-15) 011643-45
14 Sleeve, Swivel (2) 011429-45
15 O-Ring 001074-45
16 Nut, Swivel N/A
17 Stream Regulator Outlet, Full Flow B-PT
18 Grease Tube 011676-45
*Order separately
Part Number Guide
