Seite 1/5
Installation and
Maintenance
Instructions

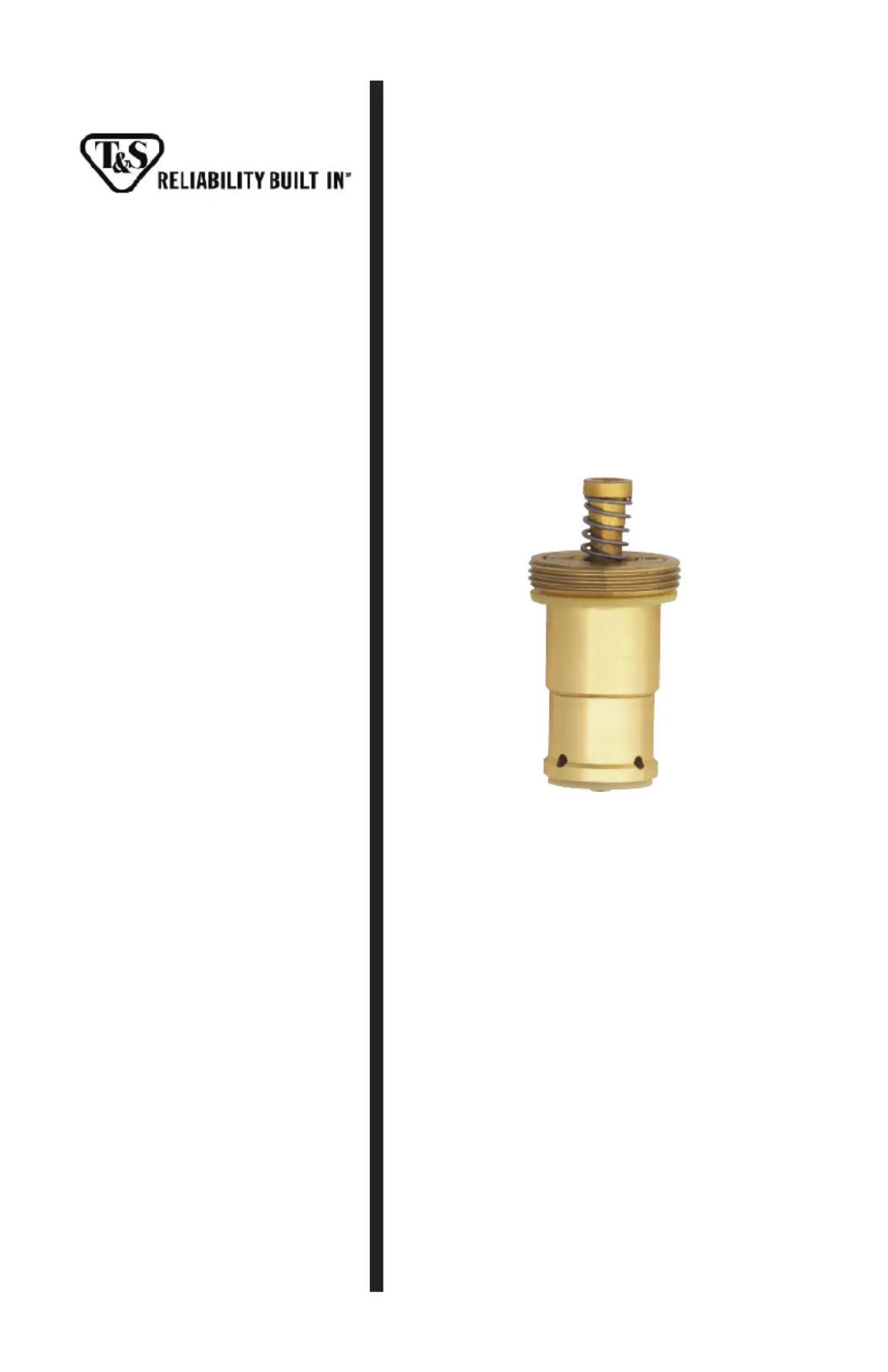

METERING BARREL
ASSEMBLY
Limited One Year Warranty
T&S warrants to the original purchaser (other
than for purposes of resale) that such product is
free from defects in material and workmanship
for a period of one (1) year from the date of
purchase. During this one-year warranty period,
if the product is found to be defective, T&S shall,
at its options, repair and/or replace it. To obtain
warranty service, products must be returned
to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other
transportation charges of the product to T&S
and the return of repaired or replaced product
to the purchaser are the responsibility of the
purchaser. Repair and/or replacement shall be
made within a reasonable time after receipt by
T&S of the returned product. This warranty does
not cover Items which have received secondary
fi nishing or have been altered or modifi ed after
purchase, or for defects caused by physical
abuse to or misuse of the product, or shipment
of the products.
Any express warranty not provided herein, and
any remedy for Breach of Contract which might
arise, is hereby excluded and disclaimed. Any
implied warranties of merchantability or fi tness
for a particular purpose are limited to one year in
duration. Under no circumstances shall T&S be
liable for loss of use or any special consequential
costs, expenses or damages.
Some states do not allow limitations on how
long and implied warranty lasts or the exclusion
or limitation of incidental or consequential dam-
ages, so the above limitations or exclusions may
not apply to you. Specifi c rights under this war-
ranty and other rights vary from state to state.
P/N: 098-014733-45 Rev.1
Date: 05-18-10
Drawn: TEH
Checked: GEF 09-13-10
Approved: JHB 09-13-10

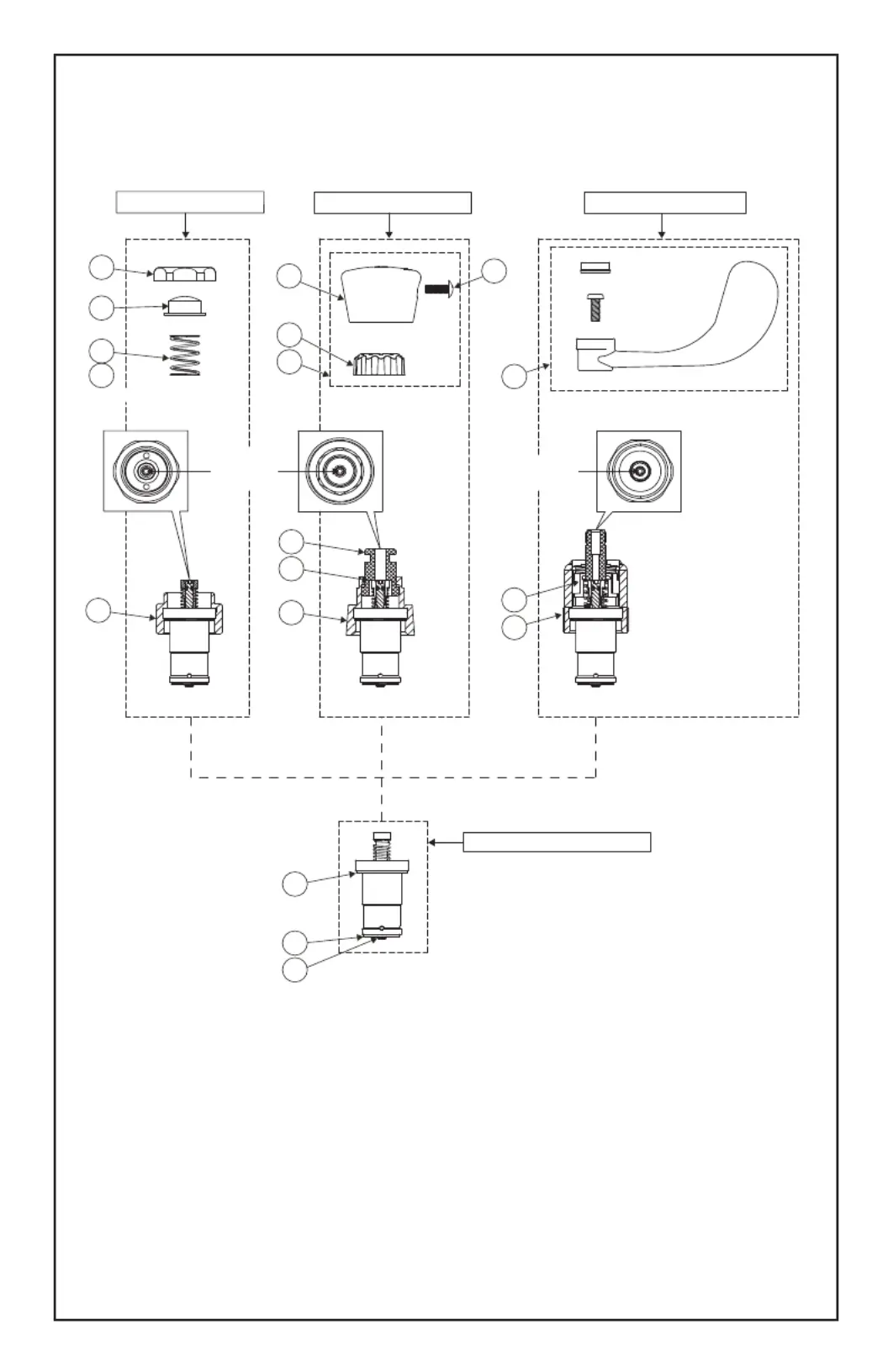

Exploded View
(NOT SHOWN)
METERING
SCREW
METERING
SCREW
F6
C3
C4
C5
F2
F3
F4
P4
P3
P5
P2
P6
P7
P8
W3
W2
F5
(HANDLE TYPE MAY VARY)
C1- METERING BARREL ASM
F1-FOOT PEDAL ASM P1-PUSH BUTTON ASM W1-WRIST ACTION ASM
W4
Part Number Guide
Foot Pedal
F1 Asm, Floor Mounted Foot Pedal 011399-40
F2 Screw Cap, Foot Pedal *
F3 Button, Foot Pedal *
F4 Spring *
F6 Bonnet, Foot Pedal *
F1 Asm, Wall Mounted Foot Pedal 011406-40
F2 Screw Cap, Foot Pedal *
F3 Button, Foot Pedal *
F4 Spring *
F5 Spring (011406-40 Asm Not Shown) *
F6 Bonnet, Foot Pedal *
Push Button
P1 Push Button Asm, Blank Valve 238AB
Screw Cap, Foot Pedal 238AH
Button, Foot Pedal 238AC
P2 Blank Cap Asm, Push Button 014193-40
Hot Cap Asm, Push Button 014194-40
Cold Cap Asm, Push Button 014195-45
P3 Screw Cap, Push Button 014145-45
P4 Blank Cap, Push Button *
Hot Cap, Push Button *
Cold Cap, Push Button *
P5 Insulator, Push Button *
P6 Guide Bushing, Push Button *
P7 Kapton Washer (Not Shown) *
P8 Bonnet, Push Button *
Wrist Action
W1 Wrist Action Asm 012449-40
W2 Handle Asm (Various Options Available) *
W3 Repair Kit, Wrist Action 012555-40
Return Spring *
Kapton Washer *
Asm, Stem Cam *
Linear Cam *
Bellville Springs *
Stem Bushing *
W2 Bonnett *
Metering Barrel Assembly
C1 Metering Barrel Assembly 014152-40
C2 Seal Repair Kit 014152-40K
C3 Top Seal *
C4 Bottom Seal *
C5 Stem Seal *
* Items not sold as separate parts; listed for instruction purposes only.
