LSF0101 1-Channel Auto-Bidirectional Multi-Voltage Level Translator
for Open-Drain and Push-Pull Applications
1 Features
•Provides bidirectional voltage translation with no
direction pin
•Supports up to 100-MHz up translation and greater
than 100-MHz down translation at
≤ 30 pF capacitive load and up To 40-MHz up or
down translation at 50 pF capacitive load
•Allows bidirectional voltage-level translation
between
–0.95 V ↔ 1.8/2.5/3.3/5 V
–1.2 V ↔ 1.8/2.5/3.3/5 V
–1.8 V ↔ 2.5/3.3/5 V
–2.5 V ↔ 3.3/5 V
–3.3 V ↔ 5 V
•Low standby current
•5-V tolerance I/O port to support TTL
•Low R
ON
provides less signal distortion
•High-impedance I/O pins for EN = Low
•Flow-through pinout for easy PCB trace routing
•Latch-up performance >100 mA per JESD 17
•–40°C to 125°C operating temperature range
2 Applications
•GPIO, MDIO, PMBus, SMBus, SDIO, UART, I
2
C,
and other interfaces in telecom infrastructure
•Enterprise systems
•Communications equipment
•Personal electronics
•Industrial applications
3 Description
The LSF family of devices supports bidirectional
voltage translation without the need for DIR pin which
minimizes system effort (for PMBus, I
2
C, SMBus, and
so forth). The LSF family of devices supports up to
100-MHz up translation and greater than 100-MHz
down translation at ≤ 30 pF capacitive load and up to
40-MHz up or down translation at 50 pF capacitive
load which allows the LSF family to support more
consumer or telecom interfaces (MDIO or SDIO).
LSF family supports 5-V tolerance on I/O port which
makes it compatible with TTL levels in industrial and
telecom applications. The LSF family is able to set up
different voltage translation levels which makes it very
flexible.
Package Information
PART NUMBERPACKAGE
(1)
PACKAGE SIZE
(2)
LSF0101
DRY (SON, 6)1.45 mm × 1 mm
DTQ (X2SON, 6)1 mm × 0.8 mm
(1)For all available packages, see the orderable addendum at
the end of the data sheet.
(2)The package size (length × width) is a nominal value and
includes pins, where applicable.
Vref_A
Vref_B
25
3
6EN
4
1
GND
A1B1
LSF0101
SW

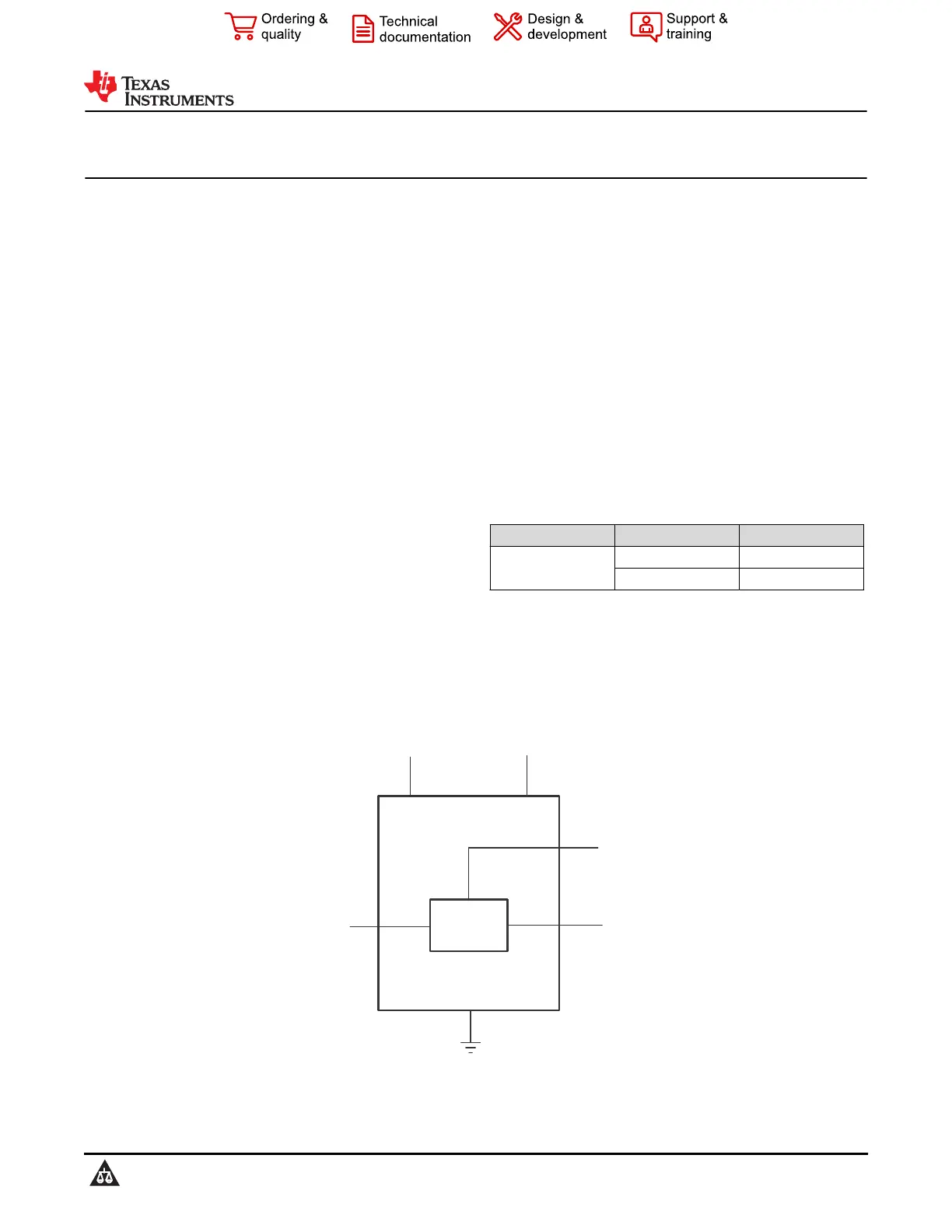

Functional Block Diagram
LSF0101
SDLS973 – JUNE 2023
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
