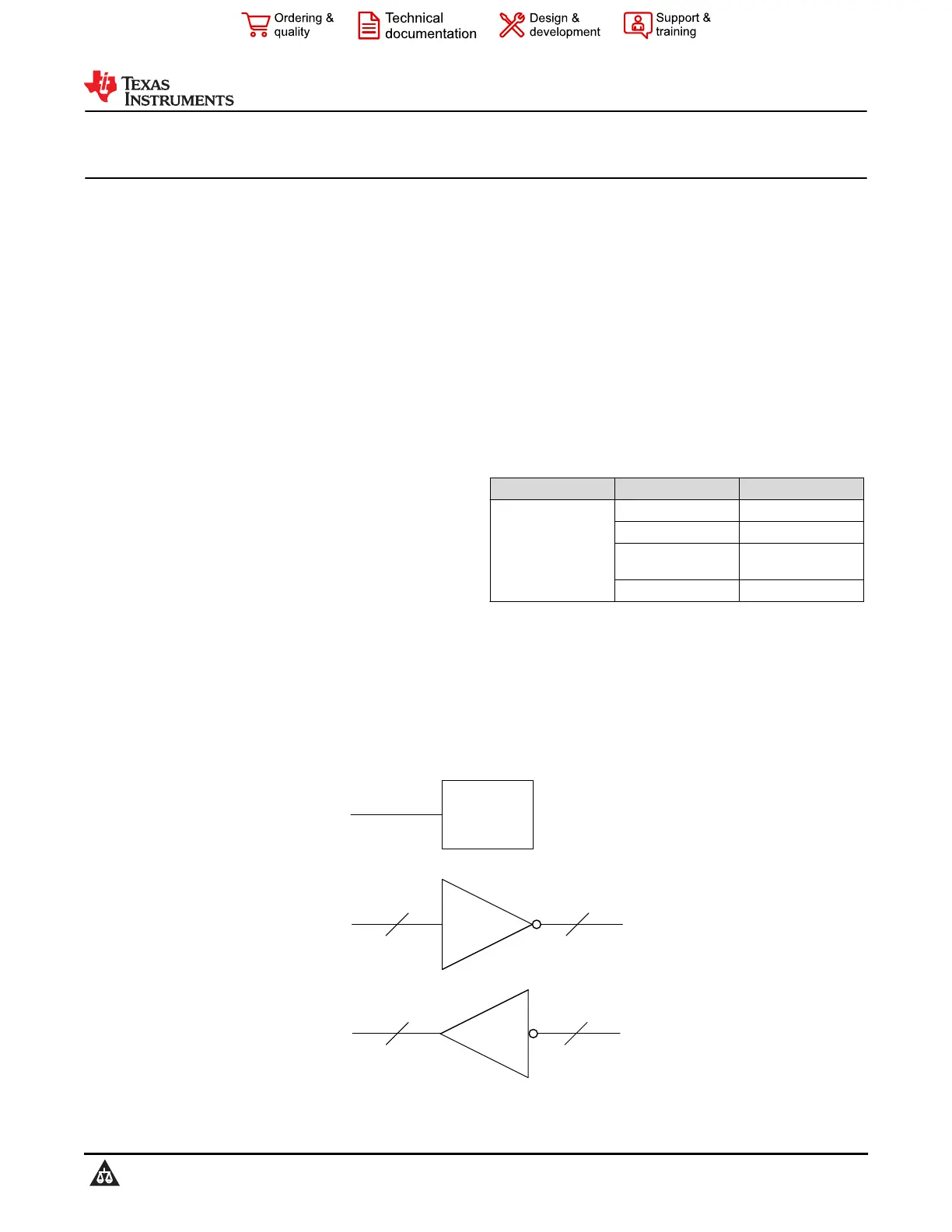

MAX3232 3-V to 5.5-V Multichannel RS-232 Line Driver and Receiver
With ±15-kV ESD Protection
1 Features
•RS-232 Bus-terminal esd protection exceeds
±15 kV using human-body model (HBM)
•Meets or exceeds the requirements of TIA/
EIA-232-F and ITU V.28 standards
•Operates with 3-V to 5.5-V V
CC
supply
•Operates up to 250 kbit/s
•Two drivers and two receivers
•Low supply current: 300 μA Typical
•External capacitors: 4 × 0.1 μF
•Accepts 5-V logic input with 3.3-V supply
•Alternative high-speed terminal-compatible
devices (1 Mbit/s)
–SN65C3232 (–40°C to 85°C)
–SN75C3232 (0°C to 70°C)
2 Applications
•Industrial PCs
•Wired networking
•Data center and enterprise networking
•Battery-powered systems
•PDAs
•Notebooks
•Laptops
•Palmtop PCs
•Hand-held equipment
3 Description
The MAX3232 device consists of two line drivers,
two line receivers, and a dual charge-pump circuit
with ±15-kV ESD protection terminal to terminal
(serial-port connection terminals, including GND).
The device meets the requirements of TIA/EIA-232-
F and provides the electrical interface between
an asynchronous communication controller and the
serial-port connector. The charge pump and four small
external capacitors allow operation from a single 3-V
to 5.5-V supply. The devices operate at data signaling
rates up to 250 kbit/s and a maximum of 30-V/μs
driver output slew rate.
Device Information
PART NUMBERPACKAGE
(1)
BODY SIZE
MAX3232
SOIC (D) (16)9.90 mm × 3.91 mm
SSOP (DB) (16)6.20 mm × 5.30 mm
SOIC (DW) (16)
10.30 mm × 7.50
mm
TSSOP (PW) (16)5.00 mm × 4.40 mm
(1)For all available packages, see the orderable addendum at
the end of the data sheet.
spacer
spacer
spacer
RX
TX
POWER
3.3V,5V
DIN
ROUT
DOUT
RS232
RIN
RS232
2
2
2
2
Simplified Schematic
MAX3232
SLLS410O – JANUARY 2000 – REVISED JUNE 2021
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
