Warranty Registration and Inquiry
For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit
our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con-
tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260
(888) 295-8134 or (678) 466-1300 when calling from outside of U.S.A.
Installation Manual
Manual de Instrucciones
Manuel d’Installation
Wall Mounted Lavatory
Lavabo para montaje en pared
Lavabo mural
LT307/.4.8
LT308/.4/.11
2
ENGLISH
TABLE OF CONTENTS
THANKS FOR CHOOSING TOTO!
The mission of TOTO is to provide the world with healthy, hygienic and more
comfortable lifestyles. We design every product with the balance of form and function
as a guiding principle. Congratulations on your choice.
Thanks for Choosing TOTO
®
! 2 ...........................................................................................
Warnings.............................................................................................................................. 2
Before Installation 2 ...............................................................................................................
Installation Procedure 3 ........................................................................................................
After Installation 3 .................................................................................................................
Warranty 4 ..............................................................................................................................

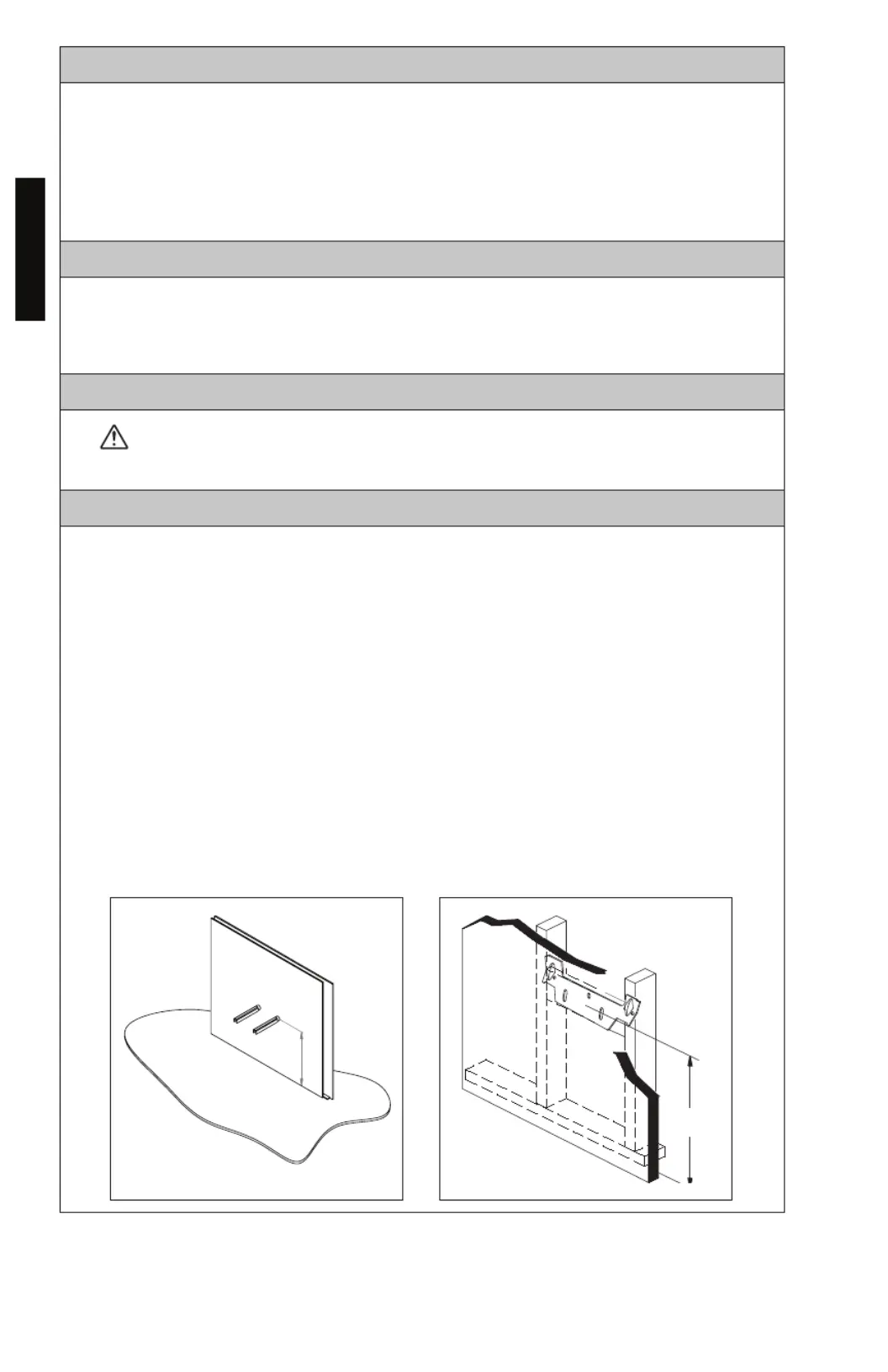

BEFORE INSTALLATION
The floor must be level and the wall must be square with the floor for best results.
Use the recommended wall carrier listed on the Spec Sheet. Install it per
manufacturer’s instructions and local codes.
WARNINGS
When this symbol appears in the manual, be aware that potential
misoperations may cause personal injury and/or property damage.
WARNING
For installation with bracket (optional for LT307 only), provide proper
reinforcement, such as a brace, between the studs of the wall to securely mount
the bracket and to support the lavatory.
1. Position the mounting bracket at the appropriate height, H (see Ill. 2) for
installation. Use a pencil to mark the center of the slotted holes on the
bracket.
2. Drill pilot holes for the wood screws (mounting screws not provided) at the
marked locations.
3. Secure the mounting bracket to the wall using the bottom slots only.
H
Ill. 1 Carrier Installation
H
Ill. 2 Bracket Installation
For installation with carrier (required for LT308), install the carrier arms at the
appropriate height. To determine arm height, (H), use the hole to rim distance
as shown on the Spec Sheet.

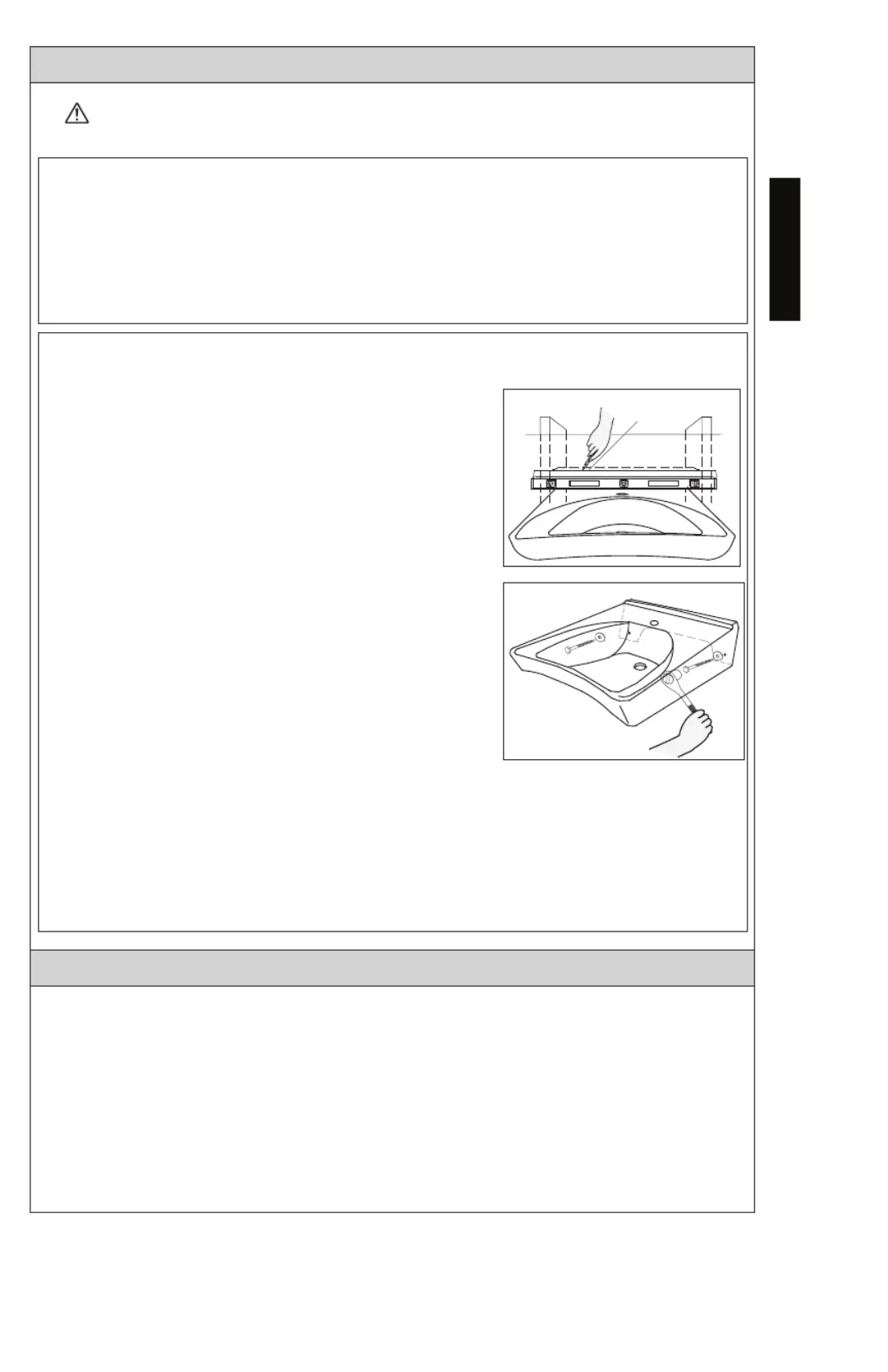

3
ENGLISH
1. Connect the water supply to the faucet according to the faucet instructions.
2. Connect and tighten the p-trap to the drain.
3. Turn on the water supplies to the faucet.
4. Purge air from the hot and cold water by running the water for a few seconds.
5. Fill the lavatory with water.
6. Check for any leaks at the water supply and drain connections.
1. Install the faucets and drain (not supplied) per the manufacturer’s instructions.
2. Slide lavatory over carrier arms.
3. Use the screws on the underside front and back holes to level the lavatory.
4. Use the underside center holes to lock the lavatory in place.
INSTALLATION PROCEDURE
1. Place the lavatory on the bracket. Brace it
adequately so that the lavatory cannot tip over.
2. Verify that the lavatory is level and at the
correct height (see Ill. 3). Mark the location of
the mounting holes.
N OTE: To help recall the lavatory position,
trace a line along the sides and top edge of
the lavatory with a pencil.
3. Remove the lavatory from the bracket.
4. Drill the remaining holes for the mounting
bracket and install the four remaining screws.
5. Install the faucets and drain (not supplied) per
the manufacturer’s instructions.
6. Return the lavatory into position.
7. Install the lavatory mounting hardware (see Ill. 4).
A. Place a metal washer onto the screw. Do not secure the screw at this time.
B. Place the remaining metal washer onto the screw and insert the screw
through a mounting hole in the lavatory.
C. Verify the lavatory is level with the mark along the top and sides of the
lavatory and secure the lavatory to the wall by tightening screws.
Ill. 3
WARNING
Ill. 4
Installation using bracket (LT307 only)
Installation using carrier
DO NOT OVERTIGHTEN HARDWARE. Overtightening hardware may
damage the products and cause personal injury and/or property damage.
