Inspection

The following items are inside the box:

●UPS unit ●User manual

Remove the UPS from its package and inspect it for damage that

may have occurred during shipping. If damage is discovered,

re-pack the unit and return it to the place of purchase.

Connecting to Utility Power

Connect the AC power cord to the UPS and to your power source.

The UPS will start to charge the battery. For best results, charge

the battery for 6 hours prior to initial use.

Connecting Modem/Phone Line

This UPS protects a single line (1 in/1 out) phone, modem, or fax

machine from surges when connected through the UPS. Plug the

incoming RJ-11 cable into the “IN” socket and the outgoing RJ-11

cable into the “OUT” socket.

A Battery backed-up outlets:

BAC input

C USB com. port (option)

D Modem/Phone line surge protection (option)

Plugging in Equipment

Plug your equipment into outlets on the rear panel of the UPS.

CAUTION: NEVER connect a laser printer or scanner to the

battery backup outlets of UPS. The equipment may draw

significantly more power than UPS can provide, overloading the

UPS.

Connecting to USB Communications Port and

Installing ViewPower Software

Connect one end of the USB cable to PC and the other to the USB

port at the rear of the UPS.

Download the latest version of ViewPower software and manuals

from http://www.v7world.com/us/downloads to your hard drive.

Follow on-screen instructions to complete the software installation.

Operation Display

UPS

Mode

LCD

Description

UPS

Power on

When UPS is powered

on, it will enter this mode

for 4 seconds.

AC Mode

When AVR is

functioning, icon will

flash every second.

LCD information will be

displayed in the following

order when LCD is

touched.

1.Output voltage

2.Input voltage

3.Load level

4.Battery capacity

Overload

in AC

mode

icon will flash.

If overload occurs, alarm

will beep every 0.5

second.

Battery

Mode

When battery level is

low, icon will flash.

Alarm will beep every 10

seconds and LCD

information will be

displayed in the following

order when LCD is

touched.

1.Output voltage

2.Input voltage

3.Load level

4.Battery capacity

Overload

in battery

mode

icon will flash.

When overload occurs,

alarm will beep every 0.5

second.

NOTE: If backlight shuts off, you may activate it by touching the

screen.

Fault Code Table:

Fault condition

LCD

Solutions

Output short

circuited

Disconnect short-circuited loads

and restart the UPS again.

Overload fault

Disconnect all output loads and

restart the UPS again.

Overcharge

Call for service immediately.

Bad or severely

discharged battery

Please replace the battery.

High output voltage

fault

Call for service immediately.

Over-temperature

1.Turn off the unit and wait for

cooling.

2.Or remove excessive loads

and wait for cooling.

If fault alarm occurs, record the fault and contact

[email protected] immediately.

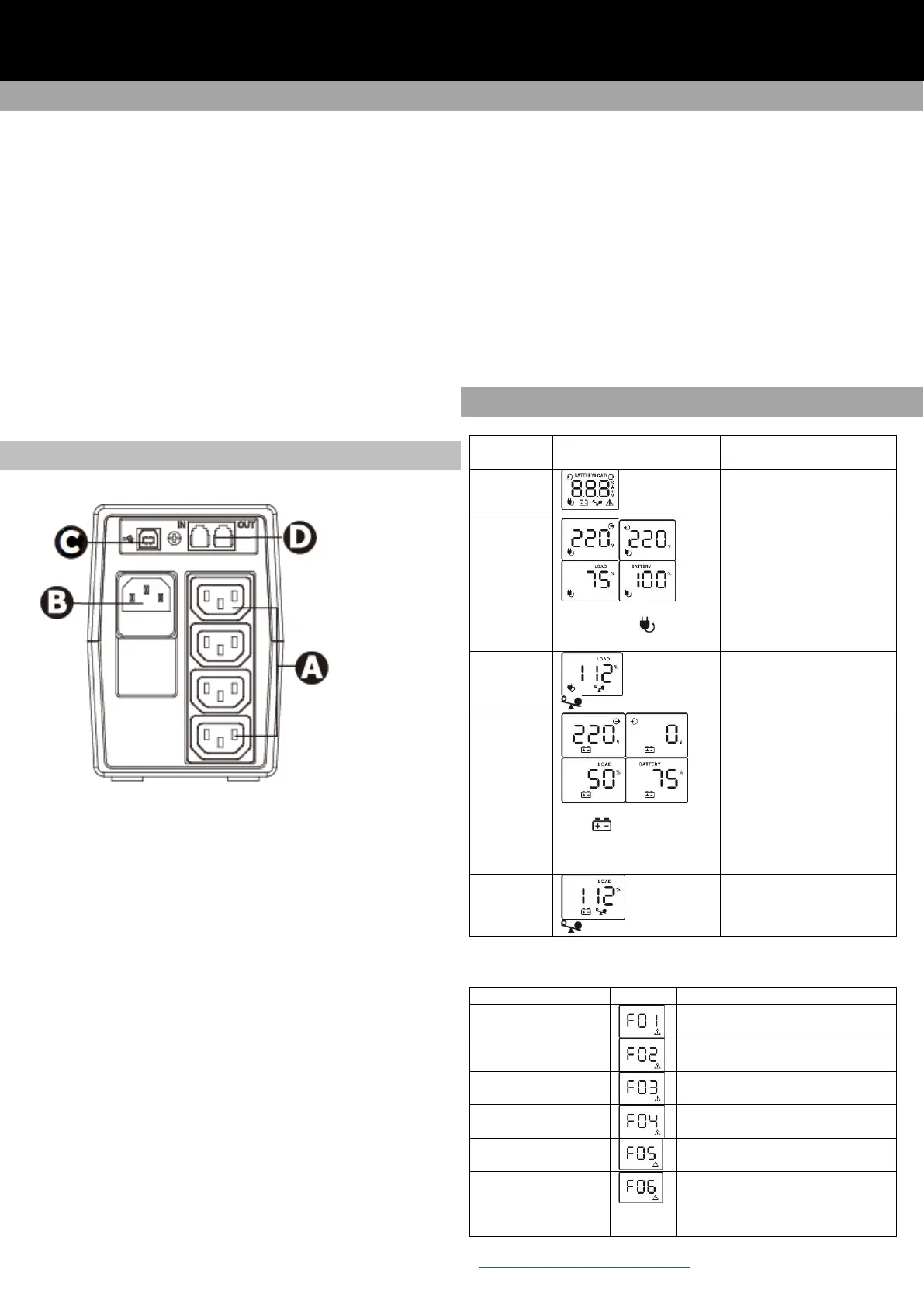

INSTALLATION & OPERATION
