Issue 1
S- - S- - 9830 25 and 9830 70
25V and 70V Stealth FlexH s™ orn
INTRODUCTION
The Clarity S-9830 25- HStealth Flex orn is a 25
Volt - - Vpaging horn and the S 9830 70 is a 70 olt
paging horn designed to provide voice paging as
well as background music. These horn s are
weather resistant and can be used indoors or
outdoors in environments ranging from -20 to
+50 degrees C. Different wattage taps to the
transformer are achieved by connecting to the
color-coded cable.
SPECIFICATIONS
Dimensions & Weight
• " " " D 9.3 H x 15.0 W x 5.0
(23.6 cm x 38.1 cm x 12.7 cm)
• 7.6 (3.4 Weight: lbs. 5 kg)
INSTALLATION
( ) Refer to Figure 1
• , Using a Phillips screwdriver remove 4
s crews attaching grille to enclosure base.
• Remove nting two nuts to remove horn mou
bracket horn from ( with still attached)
enclosure base.
• Mount enclosure base to wall using
a .ppropriate hardware Holes are provided
for mounting to a single gang or double
gang outlet box.
• Rea and bracket ttach horn to enclosure
base.
• Make consignal nections to Flexhorn (see
Cable Tap Connections diagram).
• . Install grille onto enclosure base
Cable Tap Connections
TECHNICAL ASSISTANCE
Assistance in troubleshooting is available from
the factory. When calling, you should have a
VOM available and be calling from the job site.
Call (540) 2000 and ask for Technica 563- l
Support.
Visit our website at http://www.clarity-com.com.
CLARITY equipment is not field repairable.
CLARITY maintains service facilities in
Roanoke, VA. Should repairs be necessary,
attach a tag to the unit clearly stating company
name, address, phone number, contact person,
and the nature of the problem. Send the unit to:
Clarity
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
WARRANTY
Warranty information may be found on our
website at www.valcom.com/warranty.
Wattage Taps
Color
Designation
Black
Common
White
0. 5 Watt
Brown
1 Watt
Green
2 Watts
Red
4 Watts
4 947 33
2

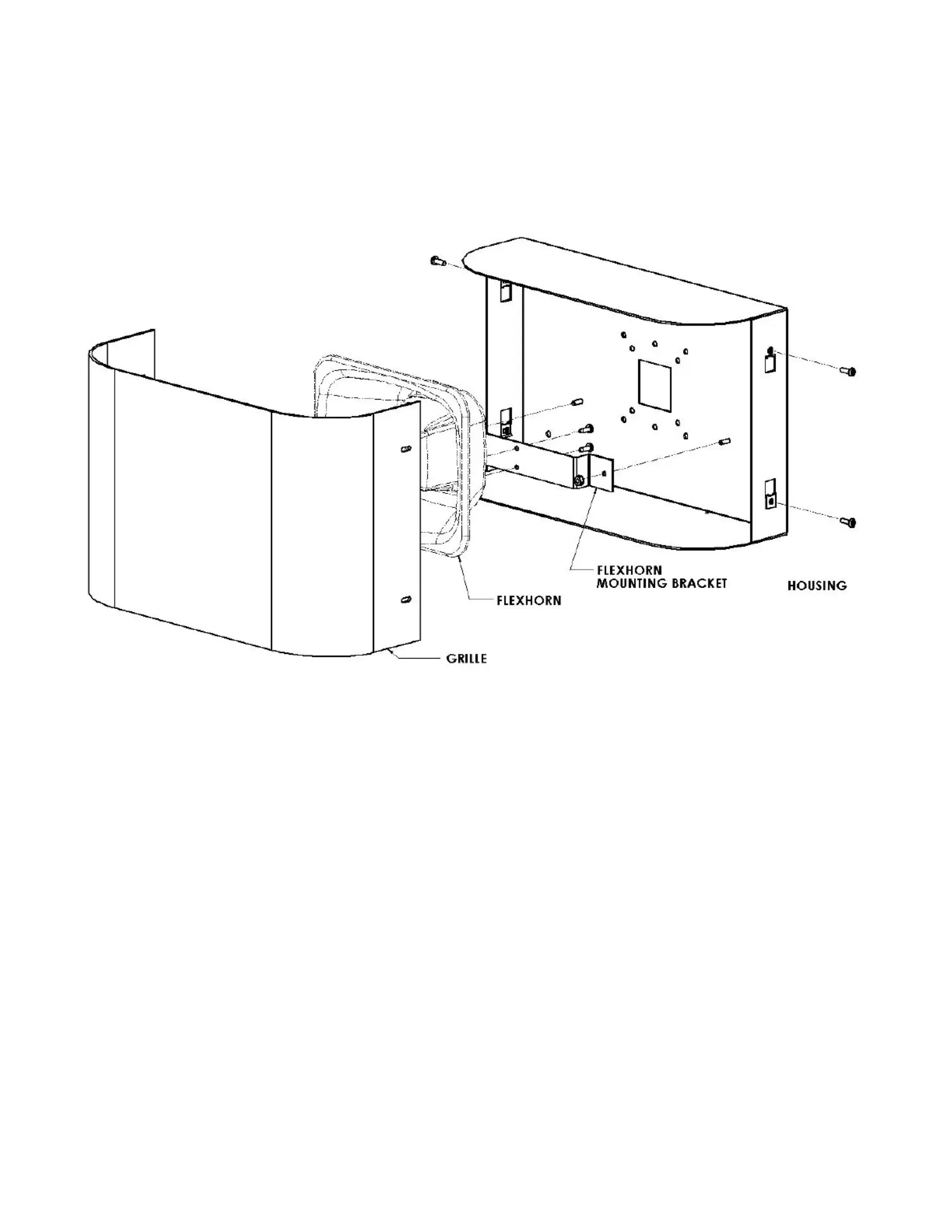

Figure 1
