Issue 1
1 947577
VIP-428A- IC
InformaCast® Compliant
IP PoE SPEAKER WITH SQUARE FACEPLATE
INTRODUCTION
The VIP-428A-IC InformaCast Compliant PoE IP
Speaker with Square Faceplate enables voice
access to a single zone of paging over an IP-based
LAN/WAN. This allows a page zone extension
anywhere on the network. The faceplate is made of
steel with a durable white powder coated nish.
The color of the faceplate can easily be changed to
match any decor. Power is provided to the
VIP-428A- via a Power over Ethernet (PoE) IC
switch meeting the 802.3af specification.
SPECIFICATIONS
Access Methods
Singlewire / InformaCast Server
SIP enabled telephone system –
Valcom M Cast Page Group
Features
802.3af compliant
High E iciency Class-D Amplier ff
DIMENSIONS/WEIGHT
.5 1.5 3.7 11 ” H x 1 ” W x ” D
(29.2 cm x cm W x 11.4 ) 29.2 cm
Weight: 4.25 LBS (1.91 kg)
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
PSE (Power Sourcing Equipment) to be compliant
to IEEE 802.3 af
These products are intended for use with a UL
Listed power source marked “Class 2” or “LPS”
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
intra-building.
Precautionary Designati ons
WARNING-To Reduce The Risk Of Fire Or
Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.
• AVERTISSEMENT - An de réduire les
risques d'incendie ou de décharge électrique,
évitez d'exposer le système à la pluie ou à
l'humidité.
• Apparatus shall not be exposed to dripping or
splashing and no objects lled with liquids,
such as vases, shall be placed on the
apparatus.
• L’appareil ne doit pas être exposé à des
égouttements et éclaboussures et aucun Objet
Rempli de liquide, comme vase, ne doit être
place .sur l’appareil
2 947577
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualied service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
INSTALLATION
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when
the equipment is operated in a commercial
environment. This equipment generates, uses
and can radiate radio frequency energy and if
not installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference in which case
the user will be required to correct the
interference at his own expense.
Network Connection
The VIP-4 - has one RJ-45 network connector 28 IC
on the rear panel. Use a standard patch cable and
connect the VIP-4 A- Ethernet switch. 28 IC to an
(See Figure 1)
LED Connection
LED 1 (+) and LED 2 (-) is a current limited output
designed to illuminate an optional LED. The LED is
intended to provide visual indication of call
progress. The LED illumination will ash when the
call switch is pressed and will continue to ash until
the call is answered. The LED illumination will be
solid when a connection to the unit is established
-10 dB Line Level Out Connection
The -10dBm Line Level Out may be connected to
up to 40 Valcom Self Amplied Speakers in order to
provide additional sound reinforcement in an area.
IMPORTANT SAFETY INFORMATION
CONSIGNES DE SÉCURITÉ IMPORTANTES
1. Read these instructions.
Lisez ces instructions.
2. Keep these instructions.
Conservez ces instructions.
3. Heed all warnings.
Respectez tous les avertissements.
4. Follow all instructions.
Suivez toutes les instructions.
5. Do not use this apparatus near water.
Ne pas utiliser cet appareil près de l'eau.
6. Clean only with dry cloth.
Nettoyer avec un chion sec.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Ne pas bloquer les ouvertures de ventilation. Installer formément aux instructions du
fabricant.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including ampliers) that produce heat.
Ne pas installer à proximité de sources de chaleur telles que radiateurs, registres de
chaleur, poêles ou autres appareils (y compris les amplicateurs) produisant de la chaleur.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade and the third prong are provided for your safety. If
the provided plug does not t into your outlet consult an electrician for replacement of the
obsolete outlet.
Ne pas contourner le dispositif de sécurité de la che polarisée ou de mise à la terre. Une
che polarisée possède deux lames dont une plus large que l'autre. Une che de terre a
deux lames et une troisième broche de mise à la terre. La lame large et la troisième
broche sont fournies pour votre sécurité. Si la che fournie ne rentre pas dans votre prise,
veuillez consulter un électricien pour le remplacement de la prise obsolète.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
11.Only use attachments/accessories specied by the manufacturer.
N'utilisez que des xations / accessoires spéciés par le fabricant.
12. Use only with the cart, stand, tripod, bracket or table specied
by the manufacturer or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
Utilisez uniquement avec le chariot, stand, trépied, support ou table spécié par le
fabricant ou vendu avec l'appareil. Quand un chariot est utilisé, Soyez prudent lorsque
vous déplacez l'ensemble chariot / appareil pour éviter des blessures dues au
renversement.
13. Unplug this apparatus during lightning storms or when unused for a long period of time.
Débranchez cet appareil pendant les orages ou lorsqu'il n'est pas utilisé pendant une
longue période de temps.
14. Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way. Such as when the power supply cord or plug is
damaged, liquid has been spilled, objects have fallen into the apparatus or the
apparatus has been exposed to rain or moisture and does not operate normally or has
been dropped.
Conez toute réparation à un personnel qualié. Une réparation est nécessaire lorsque
l'appareil a été endommagé de quelque façon. Par exemple lorsque le cordon
d'alimentation ou la che est endommagé, du liquide a été renversé, si des objets sont
tombés dans l'appareil ou le appareil a été exposé à la pluie ou à l'humidité et ne
fonctionne pas normalement ou s'il est tombé.
3 947577

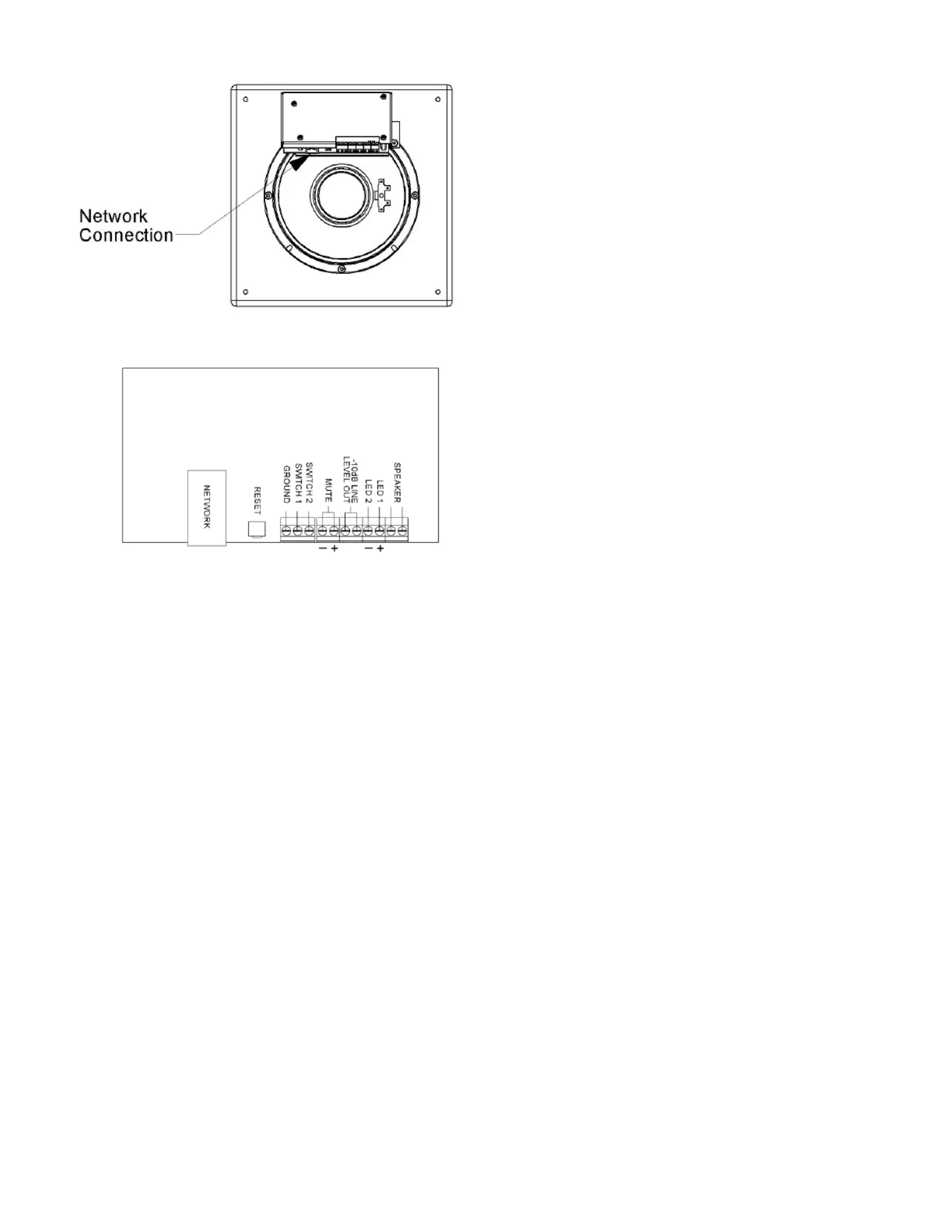

Figure 1. Network Connection
Figure 2. Connections
Call Switch Connection
The VIP-428A- provides a call switch input via IC
screw terminal connections, labeled Switch 1 and
Ground.
Setup
The VIP-428- will automatically acquire an IP IC
address (using DHCP) and connect to the
InformaCast server when connected to the
network and powered up. Information specic
to your application will need to be programmed
into the InformaCast server. Refer to the
InformaCast documentation for further
Information.
Mounting
Valcom oers three backboxes (not included) for
mounting the VIP-428A- speaker. The VB-S11 IC
(surface mount), VB-A13 (angled surface mount)
and VB-R12 (recess mount) are all designed to t
the VIP-428A- . Mount the backbox according to IC
the instructions provided with the backbox. After
mounting the backbox, connect the Ethernet cable
to the RJ-45 jack on the speaker. Mount the
speaker bale to the backbox with the hardware
provided.
TECHNICAL ASSISTANCE
When trouble is reported, verify power is being
supplied to the unit and there are no broken
connections. If a spare unit is available, substitute
a spare unit for the suspected defective unit.
Assistance in troubleshooting is available from the
factory. Call (540) 563-2000 and press 1 for
Technical Support or visit our website at
http”//www.valcom.com
Valcom equipment is not eld repairable. Valcom,
Inc. maintains service facilities in Roanoke, VA.
Should repairs be necessary, attach a tag to the
unit clearly stating your company name, address,
phone number, contact person and the nature of
the problem. Send the unit to:
Valcom, Inc.
Repair & Return Dept.
5614 Hollins Road
Roanoke, Va. 24019-5056
WARRANTY
Warranty information may be found on our website
at www.valcom.com/warranty.
