Issue 2

1 947809

CAUTION: To reduce the risk of electric shock,

Do not remove cover.

No user serviceable parts inside.

Refer servicing to qualied service personnel.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates that dangerous

voltage constituting a risk of electric

shock is present within this unit.

This symbol indicates that there are

important operating and maintenance

instructions in the literature accompanying

this unit.

V - A-D IP 429

IP FLUSH MOUNT SPEAKER/CLOCK ASSEMBLY

INTRODUCTION

The VIP-4 A-D IP Wall Speaker with Clock enables 29

voice access and visual time indication to a single zone of

paging over an IP-based LAN/WAN. This allows page

zone extension anywhere on the network. The speaker

level is adjusted via software during set up. Clock

synchronization is initiated via connection to any Network

Time Protocol (NTP) server accessible via the network.

The enclosure is made of steel with a durable powder

coated nish. The color of the enclosure can easily be

changed to match any decor. Power is provided to the

VIP-4 A-D via a Power over Ethernet (PoE) switch 29

meeting the 802.3af specication.

SPECIFICATIONS

Access Methods

• PBX, FXO Port using a VIP- 811

• POTS telephone set using a VIP-811

• PBX, FXS Port using a VIP- 821

• Valcom M Cast Page Group

• –SIP enabled telephone system

Features

 -45 network connection RJ

 802.3af compatible

 Network Time Protocol (NTP) synchronization

 Four digit time display

DIMENSIONS/WEIGHT

 . 3.14 50” H x 1 00” W x 3.40” D

( . cm x 33. cm W x 8.64cm D) 36 93 02

 Weight: 4.8 LBS (2 7 kg) .1

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

Nominal Power Requirements

Via 802.3af PoE Ethernet Switch: Class 3

Precautionary Designations

INSTALLATION

FCC Information

This equipment has been tested and found to

comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference when

the equipment is operated in a commercial

environment. This equipment generates, uses

and can radiate radio frequency energy and if

not installed and used in accordance with the

instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a residential area

may cause harmful interference in which case

the user will be required to correct the

interference at his own expense.

2 947809

Assembly and Mounting

Valcom oers three backboxes (not included) for

mounting the VIP-429A-D speaker. The -R22 VB

(recess mount) -S23 (surface mount) ; VB and

VB A2- 4(angled surface mount) are all designed to

t the VIP-429A-D. Mount the backbox according

to the instructions provided with the backbox. After

mounting the backbox, connect the Ethernet cable

to the RJ-45 jack on the speaker. Mount the

speaker bale to the backbox with the hardware

provided.

Mute Out Connection

The Mute Out may optionally be connected to the

mute input of Valcom Classroom audio

management systems in order to suspend locally

originated classroom audio during intercom

announcements.

Network Connection

The VIP-4 -D has one RJ-45 network connector 29A

on the rear panel. Use a standard patch cable to

connect the VIP-4 A-D to an Ethernet switch 29

providing Power over Ethernet (PoE) meeting the

802.3af specication. If the switch does not provide

power, a mid-span power injector may be used.

(See Figure 1)

Call Switch Connection

The VIP-429A-D provides a call switch input via

screw terminal connections, labeled Switch 1 and

Ground.

LED Connection

LED 1 (+) and LED 2 (-) is a current limited output

designed to illuminate an optional LED. The LED is

intended to provide visual indication of call

progress. The LED illumination will ash when the

call switch is pressed and will continue to ash until

the call is answered. The LED illumination will be

solid when a connection to the unit is established.

-10 dB Line Level Out Connection

The -10dBm Line Level Out may be connected to

up to 40 Valcom Self Amplied Speakers in order to

provide additional sound reinforcement in an area.

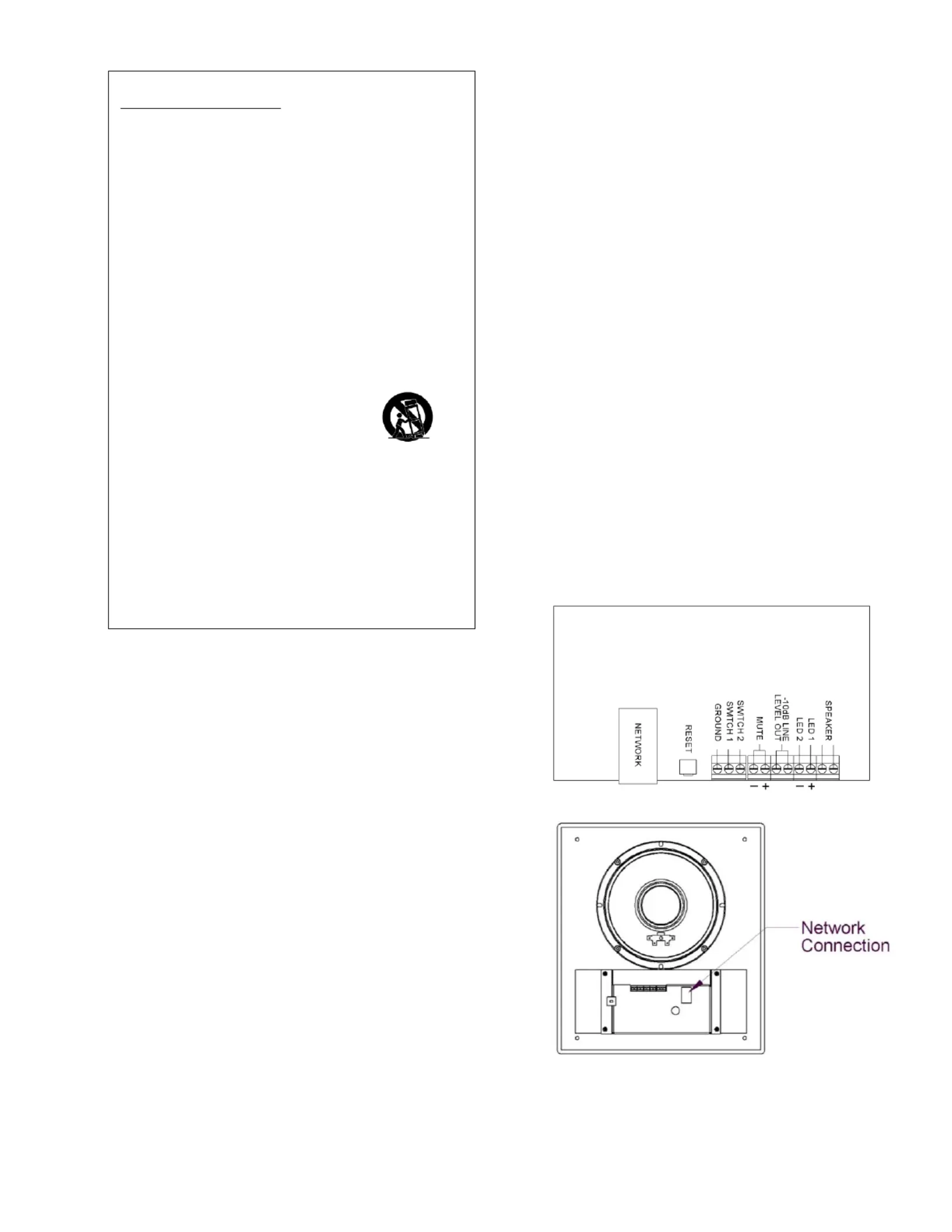

Figure 1. Connections

IMPORTANT SAFETY INFORMATION

CONSIGNES DE SÉCURITÉ IMPORTANTES

1. Read these instructions.

Lisez ces instructions.

2. Keep these instructions.

Conservez ces instructions.

3. Heed all warnings.

Respectez tous les avertissements.

4. Follow all instructions.

Suivez toutes les instructions.

5. Do not use this apparatus near water.

Ne pas utiliser cet appareil près de l'eau.

6. Clean only with dry cloth.

Nettoyer avec un chion sec.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

Ne pas bloquer les ouvertures de ventilation. Installer formément aux instructions du

fabricant.

8. Do not install near any heat sources such as radiators, heat registers, stoves or other

apparatus (including ampliers) that produce heat.

Ne pas installer à proximité de sources de chaleur telles que radiateurs, registres de

chaleur, poêles ou autres appareils (y compris les amplicateurs) produisant de la chaleur.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding type plug has two blades and a

third grounding prong. The wide blade and the third prong are provided for your safety. If

the provided plug does not t into your outlet consult an electrician for replacement of the

obsolete outlet.

Ne pas contourner le dispositif de sécurité de la che polarisée ou de mise à la terre. Une

che polarisée possède deux lames dont une plus large que l'autre. Une che de terre a

deux lames et une troisième broche de mise à la terre. La lame large et la troisième

broche sont fournies pour votre sécurité. Si la che fournie ne rentre pas dans votre prise,

veuillez consulter un électricien pour le remplacement de la prise obsolète.

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles and the point where they exit from the apparatus.

11.Only use attachments/accessories specied by the manufacturer.

N'utilisez que des xations / accessoires spéciés par le fabricant.

12. Use only with the cart, stand, tripod, bracket or table specied

by the manufacturer or sold with the apparatus. When a cart is

used, use caution when moving the cart/apparatus combination

to avoid injury from tip-over.

Utilisez uniquement avec le chariot, stand, trépied, support ou table spécié par le

fabricant ou vendu avec l'appareil. Quand un chariot est utilisé, Soyez prudent lorsque

vous déplacez l'ensemble chariot / appareil pour éviter des blessures dues au

renversement.

13. Unplug this apparatus during lightning storms or when unused for a long period of time.

Débranchez cet appareil pendant les orages ou lorsqu'il n'est pas utilisé pendant une

longue période de temps.

14. Refer all servicing to qualied service personnel. Servicing is required when the

apparatus has been damaged in any way. Such as when the power supply cord or plug is

damaged, liquid has been spilled, objects have fallen into the apparatus or the

apparatus has been exposed to rain or moisture and does not operate normally or has

been dropped.

Conez toute réparation à un personnel qualié. Une réparation est nécessaire lorsque

l'appareil a été endommagé de quelque façon. Par exemple lorsque le cordon

d'alimentation ou la che est endommagé, du liquide a été renversé, si des objets sont

tombés dans l'appareil ou le appareil a été exposé à la pluie ou à l'humidité et ne

fonctionne pas normalement ou s'il est tombé.

3 947809

Setup

Information specific to your application will need to

be programmed to the VIP- A-D using a 429

computer. The PC used for programming should

be connected to the same subnet as VIP-429A-D.

Setup will be done using the IP Solutions Setup

Tool. Download the latest version of the free IP

Solutions Setup Tool from Valcom web site at

www.valcom.com/vipsetuptool.

TECHNICAL ASSISTANCE

When trouble is reported, verify power is being

supplied to the unit and there are no broken

connections. If a spare unit is available, substitute

a spare unit for the suspected defective unit.

Assistance in troubleshooting is available from the

factory. Call (540) 563-2000 and press 1 for

Technical Support or visit our website at

http://www.valcom.com.

Valcom equipment is not eld repairable.

Valcom, Inc. maintains service facilities in Roanoke,

VA. Should repairs be necessary, attach a tag to

the unit clearly stating your company name,

address, phone number, contact person and the

nature of the problem. Send the unit to:

Valcom, Inc.

Repair & Return Dept.

5614 Hollins Road

Roanoke, Va. 24019-5056

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products only to the original purchaser, for its own use, to be free from defects in materials and workmanship under conditions of normal

use and service for a period of one year from the date of shipment. This Limited Warranty obligation shall be limited to the replacement, repair or refund of any

such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse or negligence after the original shipment;

3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge plus parts

and labor will be applied to units defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5. all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs (major repairs will be subject to

additional charges for parts and labor).

This Limited Warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be liable for any

anticipated prots, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation,

maintenance, installation, removal or use of the product. The maximum liability of Valcom under this warranty is limited to the purchase price of the

specic Product covered by the warranty.

Disclaimer. Except for the Limited Warranty provided herein, the product is provided “as is” without any warranty of any kind whatsoever including, without -

limitation, any WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT.

This warranty specically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be notied

immediately. Claims for such damage should be led with the carrier involved in accordance with the F.O.B. point.

Headquarters:

Valcom, Inc.

5614 Hollins Road Roanoke, VA 24019-5056

Phone: (540) 563-2000 FAX: (540) 362-9800
