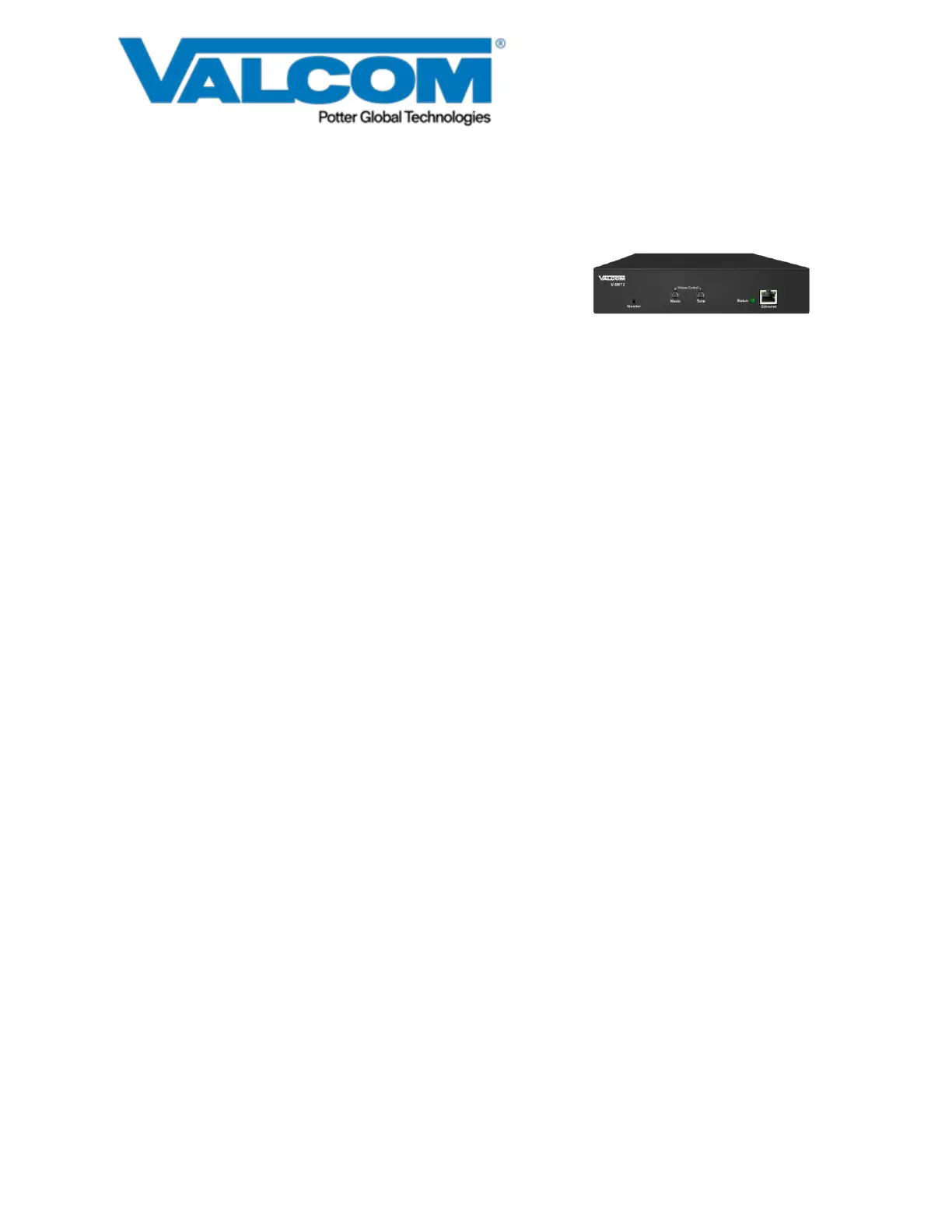

ezIP PAGE CONTROLLER
EZ-PC3, EZ-PC6
INTRODUCTION
The ezIP Page Controller is a three or six zone hybrid
analog one-way page controller, combining analog paging
zones with IP capabilities to bridge the analog and IP
worlds. The EZ-PC3 Page Controller has three one-way
zones enabled, with three more zones available by
license purchase. The EZ-PC6 Page Controller has six
one-way zones enabled without additional purchase.
Both the 3-zone and 6-zone models can be upgraded to
Talkback capability with license purchase.
SPECIFICATIONS
Access Methods
•FXS extension
•PABX station extension
•PABX loop start trunk port
•Standard telephone
•SIP (Session Initiation Protocol)
Electrical Specifications
FXO Input
Ring Detect Voltage 13.5V Min
REN 0.2
FXS Input
DC Open Circuit Voltage -48V Nominal
DC Feed Circuit 45mA Max
DC Differential Output Resistance 60-640 Ohms
Ringing Amplitude (nominal, open circuit) 108V peak
Ring Frequency 20Hz
Audio Sense Release: Programmable, 0-600 Seconds
Time Out Release: Programmable, 0-3600 Seconds
Zone Outputs
Impedance: Min. 8 Ohms
Page Level: -10dBm to 0dBm
Music Level: -17dBm to 0dBm
Music Input Impedance: 10k Ohms
-23dBm to 0dBm
Answer Verification Tone: User Programmable
Form A Contacts: 24Vdc, 1.0 Amp
Nominal Power Requirements
Via rear panel screw terminals: 24Vdc, 1 Amp
Via 802.3af PoE Ethernet Switch: Class 3 Class 3
These products are intended for use with a UL Listed
power source marked “Class 2” or “LPS” rated 24VDC.
All interconnected ITE are intended for intra-building.
Features
•Supports Valcom 45 Ohm, 25 Volt or Self-Amplified
speakers
•Use with SIP (Session Initiation Protocol) VoIP PBX
•Multiple units may be connected over the network for
expanded paging zones
•Background music input; music mutes during page
•Security code option to restrict page access
•Store & Play feedback eliminator option
•Multiple disconnect options
•Page verification tone
•Customizable page alert tone
•Scheduler for tone output on a timed basis
The following features can be enabled with additional
license purchase:
•Full compatibility with standard Valcom IP endpoints,
including two-way communication with directly
attached or IP talkback speakers
•SIP expanded to 4 extensions, with Night Ring and
Store & Play on all lines
Dimensions/Weight
Single unit:
8.13” W x 10.75” D x 1.72” H
(20.7cm W x 27.3cm D x 4.4cm H)
Weight 2.0 lbs (0.91 kg)
Two units mounted for 19” Rack:
19.0” W x 10.75” D x 1.72” H
(48.3cm W x 27.3cm D x 4.4cm H)
Weight 4.1 lbs (2.31 kg)
Environment
Temperature: 0 to +50°C
Humidity: 0 to 80% (non-precipitating)
