ezIP 1 ZONE AUDIO GATEWAY

EZ-GW1W, EZ-GW1R

INTRODUCTION

The EZ-GW1W and EZ-GW1R ezIP 1 Zone Audio

Gateways enable voice access to a single zone of

one-way paging over an IP-based network. This

allows page zone extension anywhere on the

network.The EZ-GW1W is designed for wall or

table placement. The EZ-GW1R is designed for 19”

mounting (1U).

SPECIFICATIONS

Features

•Compatible with Valcom ezIP Protocol

•Upgradable to full Valcom IP capability

•1 Audio Input

•2 Audio Outputs

•2 Form C Relays

•1 Contact Closure Input

•RJ-45 jack for network connection

•Front panel activity LED

•Provides audio for up to 40 Valcom one-way

amplified speaker assemblies

•AUX audio input via RCA jack

•Contact closure or VOX operation of audio input

•Removable screw terminal connectors provided

for audio and relay interface

•AUX input music mutes during page

•Output control contact closure provided during

paging output

•Compatible with 25 or 70 Volt amplifiers

•Barrel jack for optional DC power

•Power over Ethernet 802.3af Compatible

Dimensions/Weight (EZ-GW1W)

•1.38 H x 6.13" W x 5.25" D

(3.50cm H x 15.6cm W x 13.33cm D)

•Weight: 1.25 lbs. (0.57 kg)

Dimensions/Weight (EZ-GW1R)

•1 Standard 19” Rack Unit

•1.75” H x 16.50” W x 5.25” D

(4.45 cm x 41.91 cm x 13.33 cm)

•Weight: 5.10 lbs. (2.32 kg)

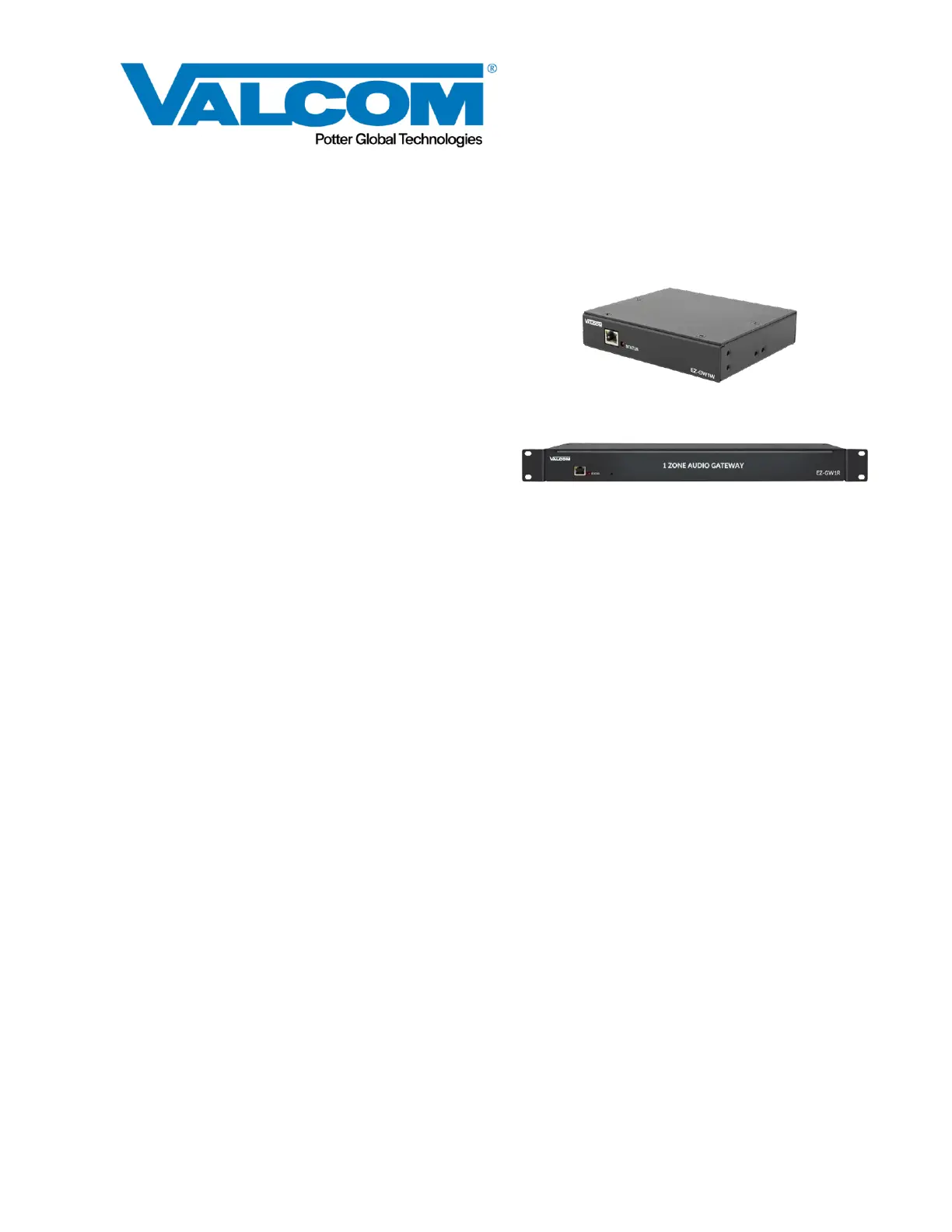

EZ-GW1W

EZ-GW1R

Nominal Specifications

Input Impedance: 600 Ohms

Input Level: -10dBm nominal

Voice Switch Sensitivity: -21dBm

Music Source Input Impedance: 8 to 600 Ohms

Music Input Level: -10dBm nominal

Output Impedance: 50 Ohms

Output Level: - 10dBm nominal

Relay Current: 1 Amp @ 24Vdc

Nominal Power Requirements

Via rear panel barrel connector:

Voltage: 24Vdc

Current: 325mA

Via 802.3af PoE Ethernet Switch:

802.3af: Class 3

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating
