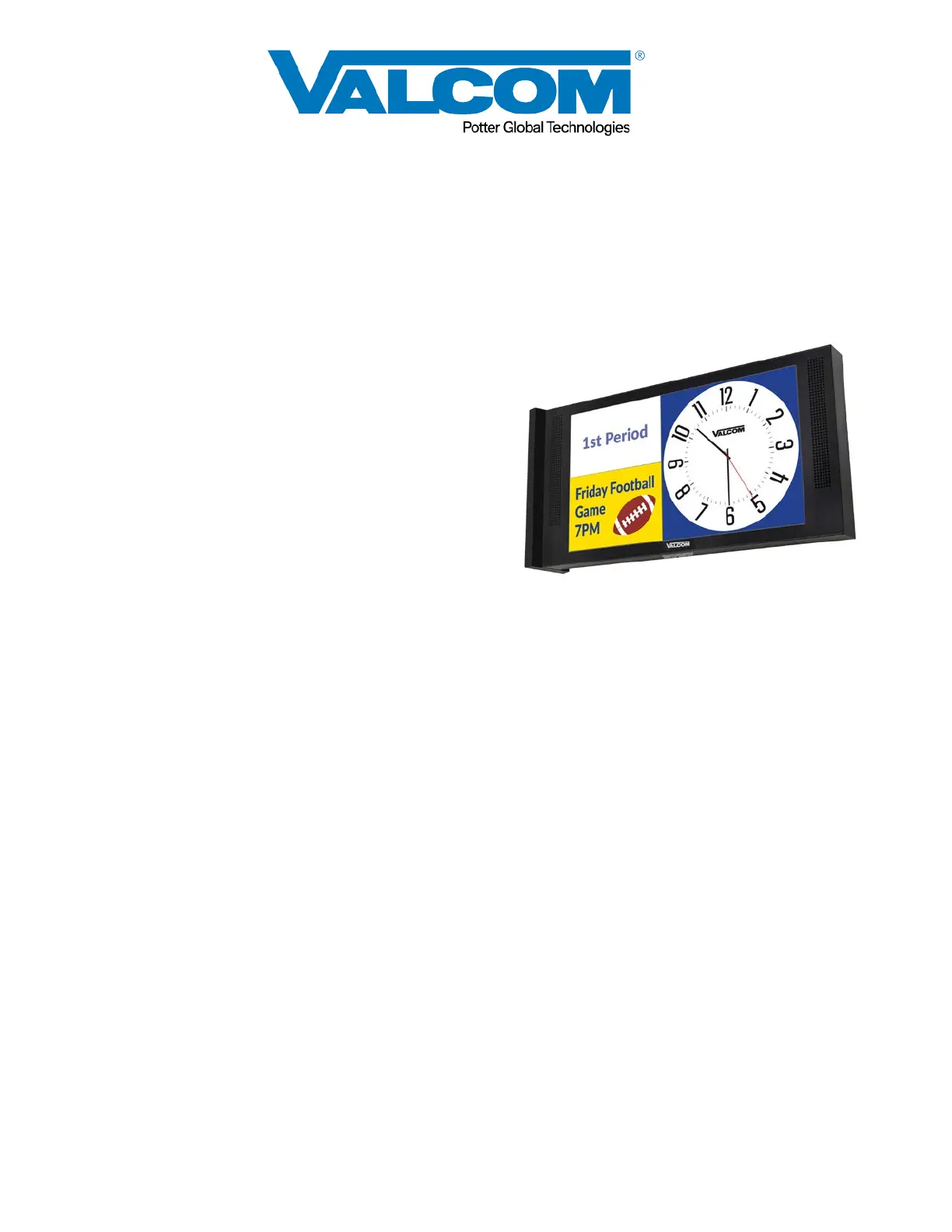

ISSUE 1

1 9471031

VIP-LD222-SA

Revolution

®

Compliant Dual LCD Display Speaker with Flashers

VIP-LD221C-SA

Revolution

®

Compliant Single LCD Display Speaker with Flashers

INTRODUCTION

The VIP-LD222-SA Revolution® Compliant Dual LCD

Display Speaker with Flashers and the VIP-LD221C-

SA Revolution® Compliant Single LCD Display

Speaker with Flashers combine audio paging and

intercom with visual notifications. Bright flashers on

the bottom edge attract attention for important

announcements. Templates provide preset display

areas for easy and quick visual layout.

SPECIFICATIONS

Features

•Cost effective and versatile solutions for applications

requiring audio and visual alerts

•Multiple template options for displaying clocks,

images and messages

•Synchronized flashing when used with additional

Valcom Flashers

•Wall or Ceiling mountable

•VIP-LD222-SA has displays on both sides

•VIP-LD221C-SA has the display on one side only

Video Specifications

•178° Vertical x 178° Horizontal viewing angle

•Contrast Ratio 1000:1

•White luminance 500 cd/m

2

•Full HD Resolution (1920 x 1080)

•60 Hz Refresh Rate

•High brightness Flashers, Red, Green, Blue, White

LEDs, combine to create millions of colors

Audio Specifications

•Full duplex talkback audio with omni-directional

microphone

•Dual speakers with 5 Watt output

Activation Methods

•Intrado Revolution server

•Valcom Site Manager server

•Valcom Interactive Console

•Valcom Group Page

•SIP Phone Call

Nominal Power Requirements

•VIP-LD222 Dual Display

IEEE 802.3bt Type 4, 90 Watts minimum

•VIP-LD221C-SA Single Display

IEEE 802.3bt Type 3 or 4, 60 Watts minimum

Input/Output

•Two Contact Closure Inputs

•One Relay Output, Form C, Rated 1A @ 24 Vdc

•One Line Level Audio Output

•One Line Level Audio Input for local audio

Dimensions / Weight

•12.75" H x 23.75" W x 3.0" D

(32.4cm H x 60.3cm W x 7.6cm D)

Ceiling mount Height with bracket14.0” (35.6cm)

Wall mount Width with bracket 25.0” (63.5cm)

•VIP-LD222-SA 15.1 lbs. (6.9 kg)

•VIP-LD221C-SA 12.5 lbs. (5.7 kg)

Environment

•Temperature: +32 to +104°F (0 to +40°C)

•Humidity: 0 to 85% non-precipitating
