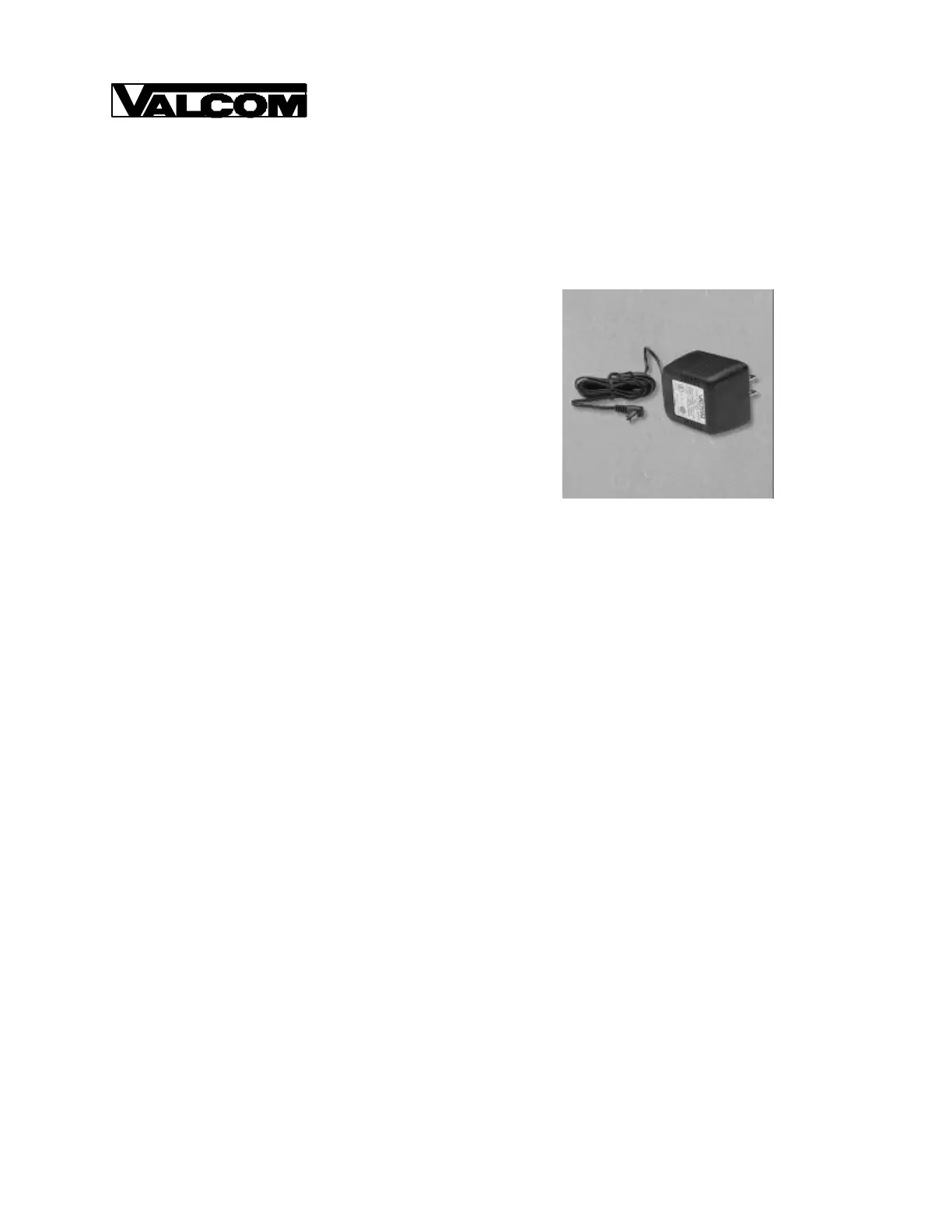

VSP-VP-412A

Issue 9

1947312

VP-412A

12 VOLT DC POWER SUPPLY

INTRODUCTION

These instructions contain the specifications and

information necessary to install, operate and maintain

the VP-412A, 12 Volt DC Power Supply.

SPECIFICATIONS

Description

The VP-412A is a 12 Volt DC power supply designed

to provide up to 0.4 Amp of 12VDC "unfiltered

battery." The VP-412A features a right angle

barrel-type connector.

Application

The VP-412A is for use with the Valcom V-2952,

FM Tuner.

Dimensions/Weight

•2.60" H x 2.00" W x 2.30" D

(6.60cm H x 5.08cm W x 5.84cm D)

•0.7 lbs. (.32 kg)

Features

•High impact, ABS plastic case

•UL listed

Power Requirements

•Input 105-130V, 60Hz

Environment

•Temperature: 0 to +50 Degrees C

•Humidity: 0 to 85% non-precipitating

INSTALLATION

The VP-412A is a receptacle mount, 2-prong power

supply with a coaxial "barrel-type" plug.

1.To install the VP-412A, insert the

"barrel-type" plug into the hole on the

V-2952 marked "-12VDC" (Refer to the figure

on the next page).

2.Plug 2-prong power supply into 120VAC wall

receptacle.

TECHNICAL ASSISTANCE

When trouble is reported, verify that AC power is

being supplied to the unit.

To test the power supply, remove barrel-type plug

from the V-2952 and measure the output voltage with

a meter. Nominal voltage unloaded should measure

16 to 24VDC. If no voltage is measured, replace the

unit.

Assistance in troubleshooting is available from the

factory. When calling, you should have a VOM

available and be calling from the job site. Call

(540)563-2000 and ask for Technical Support, or call

(540) 767-1555 for Valcom 24-hour Faxback System or

visit our website at http://www.valcom.com.

The VP-412A is not field repairable. Should repairs be

necessary, attach a tag to the unit clearly stating your

company name, address, phone number, contact

person and the nature of the problem. Send the unit

to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056
