1. Unscrew the bolt nuts (D), take out the mounting plate unit (A),
then attach to the outlet box by using two mounting screws (B).
2. Rod Connections:
a. Thread the fixture wire from the fixture through the lower rod, then
secure the lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod, and then secure the
middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, and then secure the
upper rod onto the middle rod using the threaded pipe.
Note: Length adjustable from 16-3/4" to 46-3/4". Use fewer rods if
shorter length is desired.
3.
Thread the fixture wire through the canopy kit, then
secure the rod assembly to the set threaded pipe of
the canopy kit.
4. Pull out the wires and ground wire from the outlet box.
Make wire connections using the wire connectors (C)
as follows:
---Connect the hot wire (black insulation) from the
fixture to the black wire from the power source.
---Connect the neutral wire (white insulation) from
the fixture to the white wire from the power source.
---Attach the fixture ground wire (bare wire) to the mounting
plate unit (A) with the green ground screw, then connect it
to the house ground wire with the wire connector (C).
Carefully put the wires back into the outlet box.
5. Attach the canopy kit to the mounting plate unit (A) by inserting the
fixture mounting screws, then secure it with two bolt nuts (D).
6. Install 3 X 60W Max. medium base bulbs (not included). See relamping label at socket area or
packaging for maximum wattage allowed.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
P0416
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

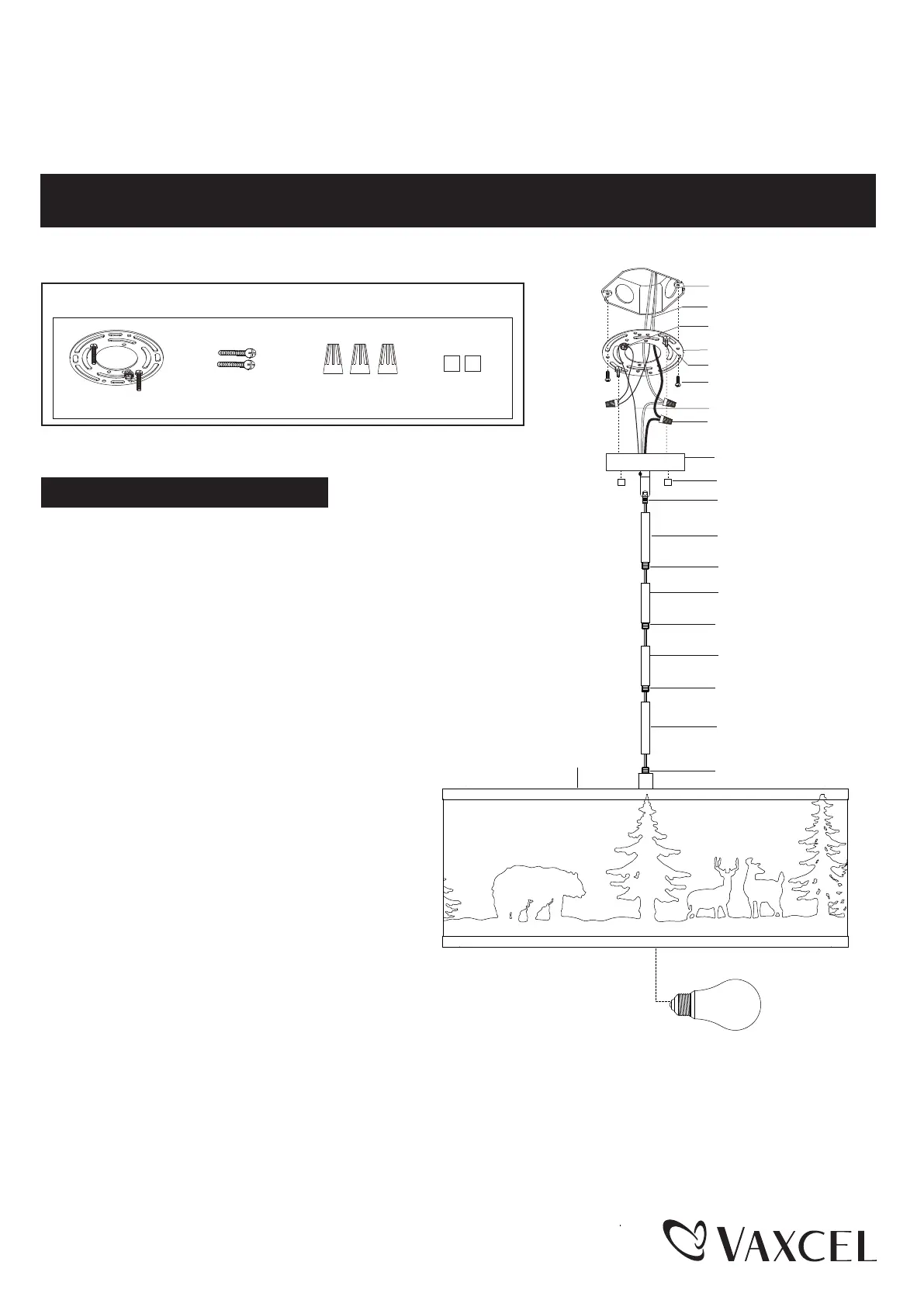

Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Canopy Kit
Bolt Nut (D)
Upper Rod
Middle Rod
Threaded Pipe
Threaded Pipe
Threaded Pipe
Fixture
Lower Rod
Set Threaded Pipe
Bolt Nut (D)
Mounting Screw (B)
Wire Connector (C)
Mounting Plate Unit (A)
Middle Rod
Threaded Pipe
Page 1 / 2
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
Max. 60W Medium Base Bulb
(not included)
