Vaxcel VL55704 Bedienungsanleitung

Lies die bedienungsanleitung für Vaxcel VL55704 (2 Seiten) kostenlos online; sie gehört zur Kategorie Beleuchtung. Dieses Handbuch wurde von 58 Personen als hilfreich bewertet und erhielt im Schnitt 4.1 Sterne aus 2 Bewertungen. Hast du eine Frage zu Vaxcel VL55704 oder möchtest du andere Nutzer dieses Produkts befragen? Stelle eine Frage

Glass Shade

Glass Holder

House Grounding

Wire

Wire Nut

Outlet Box

V-B1

V-C

V-E

V-D

V-B2

V-C

Back Plate

Bolt Nut

Socket Ring

Mounting Plate

Screw

Mounting Screw

Anchor

V-C

V-B2

V-D

V-B3

V-C

Dry Wall Screw

Set Hole

Green Grounding Screw

Fixture Wire

Fixture Grounding wire

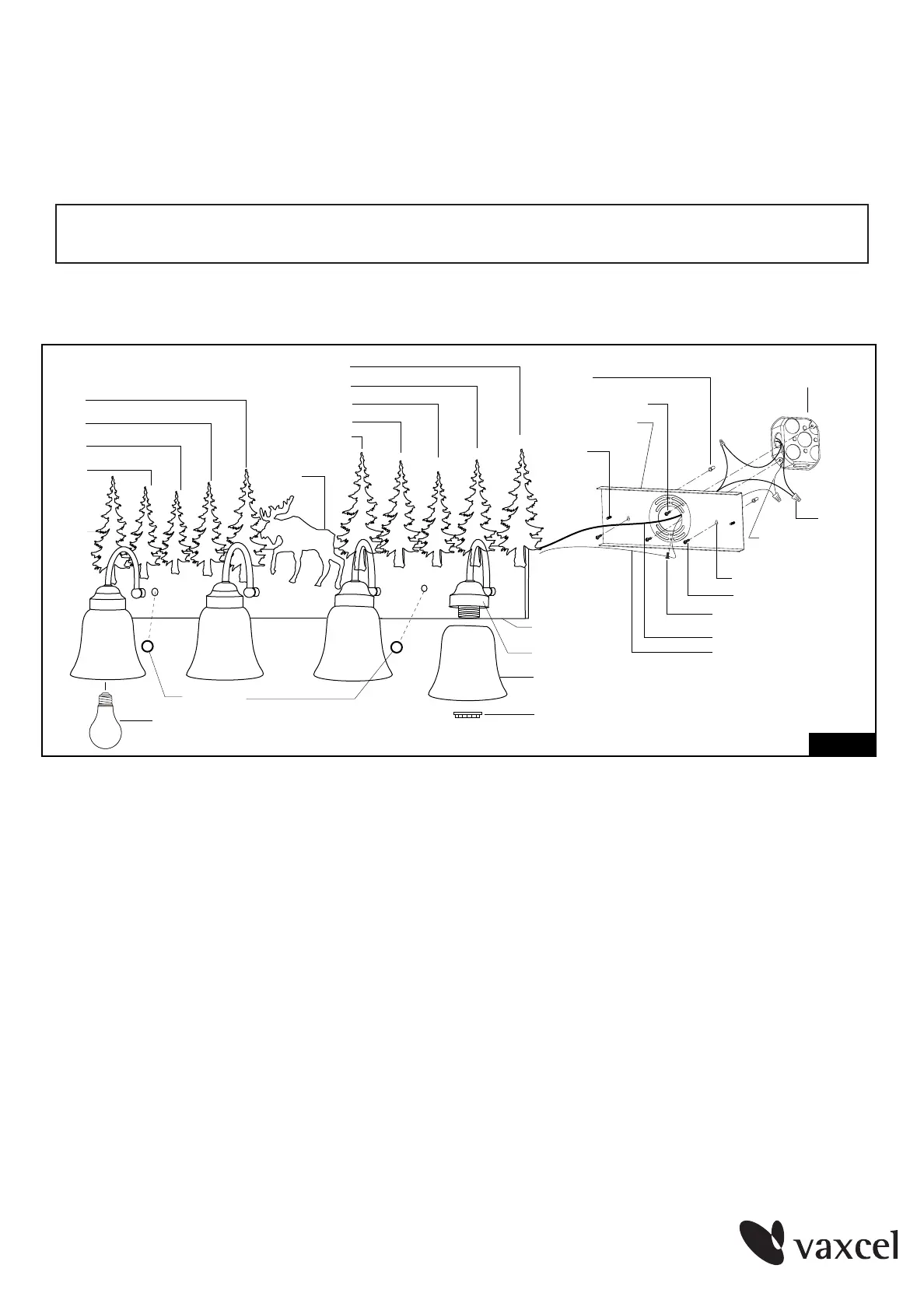

Figure 1

100525

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT

BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2.

READ AND SAVE THESE INSTRUCTIONS

.

VL55404 / VL55504 / VL55604 / VL55704

1. Unscrew two bolt nuts, and remove the mounting plate from the back plate.

2. Fix the mounting plate to the wall.

a) For wooden material:

Attach the mounting plate to the outlet box by using two mounting screws, and

then secure the dry wall screws through the set holes to the wall.

b) For cement material:

Place the mounting plate to the outlet box and mark the target on the wall from

the set hole for drilling two holes. Remove the mounting plate from the outlet box.

Thread the anchors into the holes, then attach the mounting plate to the outlet

box by using two mounting screws. Secure the dry wall screws through the set

holes into the anchors.

Page 1

Bulb Type A Max.100W

(not included)
