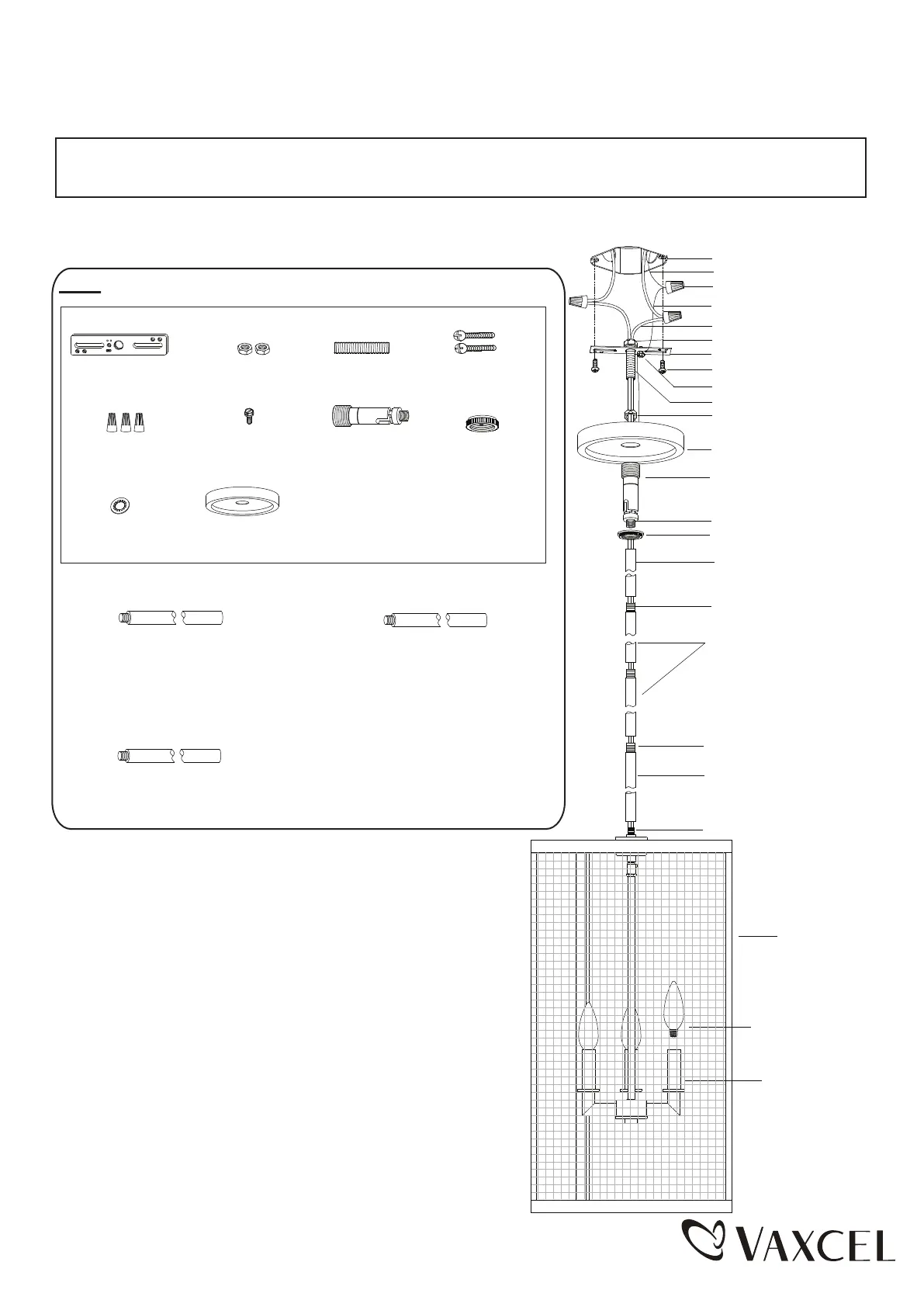

1. Rod Connections:

a. Thread the fixture wire from the fixture through the

lower rod, then secure the lower rod onto fixture using

the threaded pipe.

b. Thread the fixture wire through the middle rod, and

then secure the middle rod onto the lower rod using

the threaded pipe.

c. Thread the fixture wire through the upper rod, and

then secure the upper rod onto the middle rod using

the threaded pipe.

The height can be adjustable to 30-1/2"~84-1/2", by

using the rods.

2. Thread the fixture wire through the collar, coupling kit,

canopy, then secure the rod assembly to the coupling kit.

3. Thread the fixture wire through the nipple, hex nut and

mounting strap. Install the hex nut onto one end of the

nipple leaving about 3/8” (10mm) thread exposed. Install

same end of nipple by screwing into coupling kit, secure

nipple by tightening hex nut.

Collar (H)

Canopy (J)

Outlet Box

House Grounding Wire

Wire Nut (E)

Nipple (C)

Mounting Strap (A)

Green Grounding Screw (F)

Hex Nut

Mounting Screw (D)

Upper Rod

Middle Rod

Lower Rod

Threaded Pipe

Threaded Pipe

Fixture Wire

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT

BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

P0101

Bulb Type B Max.60W

(Not Included)

Coupling Kit (G)

Fixture Grounding Wire

Hex Nut (B) & Washer (I)

Threaded Pipe

Socket

Set Screw

Parts:

Parts Number (4940MM)

Mounting Screw (D)

Hex Nut (B)

Wire Nut (E)

Mounting Strap (A)

Nipple (C)

Green Grounding

Screw (F)

Coupling Kit (G)

Collar (H)

Washer (I)

140102

Fixture

12”Rod (K) (X4)

6”Rod (L) (X1)

Parts Number (4945RR)

Parts Number (4946RR)

Canopy (J)

3”Rod (M) (X1)

Parts Number (4947RR)
