ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

C0241

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

191106

Turn on the power at fuse or circuit box

Green Ground Screw (C)

Mounting Screw (B)

Wire Connector (D)

Mounting Strap (A)

Finial (H)

Threaded Pipe (E)

Hex Nut (F)

Washer (G)

Turn off the power at fuse or circuit

box.

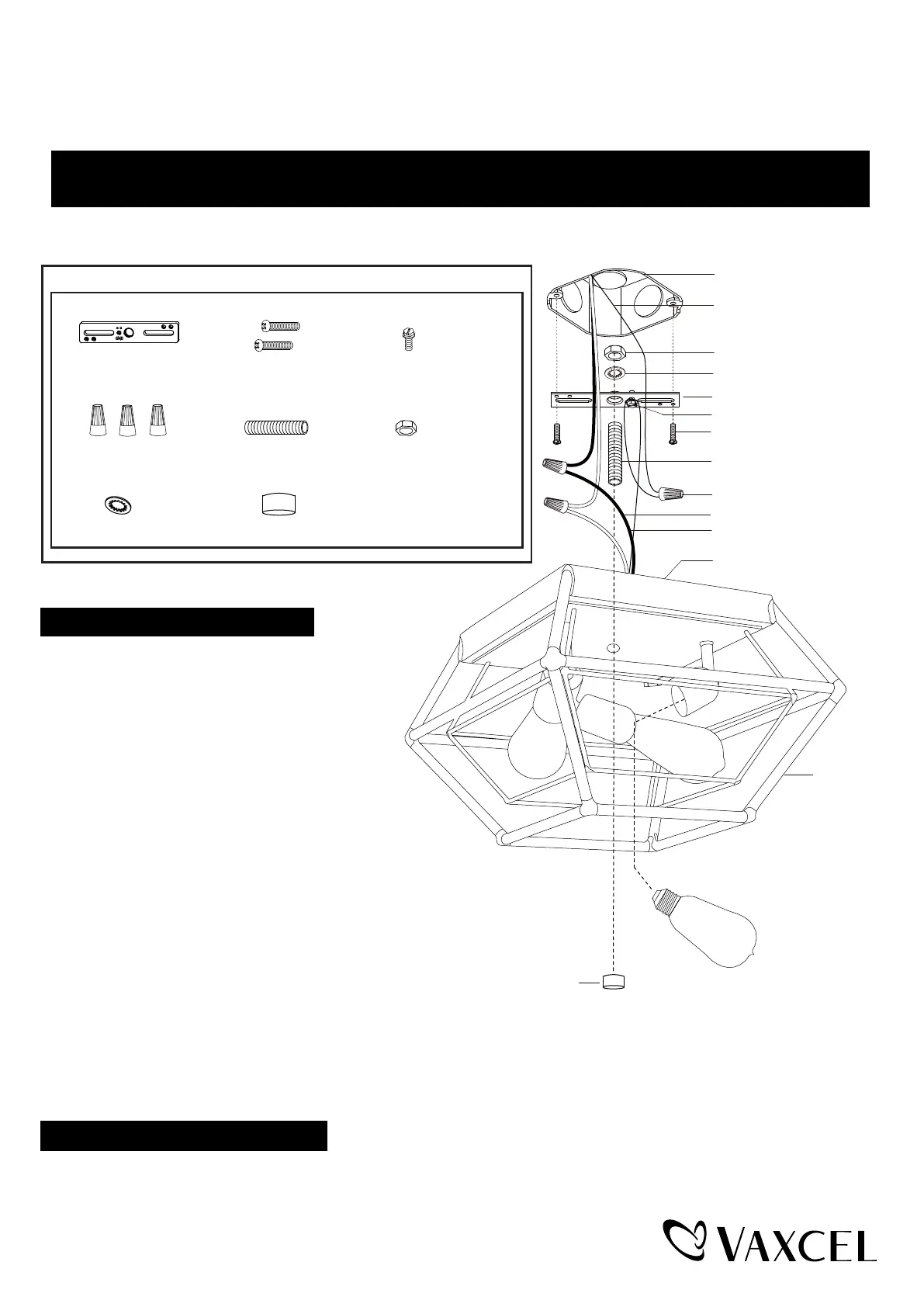

Installation Steps

1. Attach the threaded pipe (E) to the mounting

strap (A), then secure it with a washer (G)

and hex nut (F).

2. Attach the mounting strap (A) to the outlet box

using two mounting screws (B).

3. Pull out the wires and ground wire from the

outlet box. Make wire connections using the wire

connectors (D)：

---Connect the hot wire (black insulation) from the

fixture to the black wire from the power source.

---Connect the neutral wire (white insulation) from

the fixture to the white wire from the power source.

---Attach the fixture ground wire (bare wire) to the

mounting strap (A) with the green ground screw (C).

Then connect it to the house ground wire with the

wire connector (D).

Carefully put the wires back into the outlet box.

4. Attach the ceiling plate to the mounting strap (A) by inserting threaded pipe (E) into the center holes of the

ceiling plate

and screw the finial (H) to secure the

ceiling plate

.

5. Install bulbs (not included). See relamping label at socket area or packaging for maximum wattage allowed .

Mounting Screw (B)

Green Ground Screw (C)

Wire Connector (D)

House Ground Wire

Fixture Ground Wire

Ceiling Plate

Outlet Box

Fixture Wire

Threaded pipe (E)

Mounting Strap (A)

Hex Nut (F)

Washer (G)

Fixture

Finial (H)

Medium Base Bulb Max.60W

(not included)
