ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and s

ave these instructions.

C0121

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Turn off the power at fuse or circuit box.

Mounting Strap (A)

Green Ground

Screw (C)

Fixture Mounting

Screw(E)

Ball Nut(G)

Mounting Screw (B)

Wire Connector (D)

Lock Nut (F)

1. Attach the mounting strap to the outlet box by using

two mounting screws.

2. Screw the threaded pipe with hex nut end into the coupling,

and tighten it with the washer and hex nut.

NOTE:Depth of threaded pipe may need to be adjusted

to properly fit glass shade, decorative cover and small

pine cone.

4. Install bulbs (not included). See relamping label at socket

area or packaging for maximum allowed wattage.

5. Attach the glass shade to the fixture by inserting the threaded

pipe,and then secure it with a rubber pad, metal pad

and hex

nut.

6. Slip the decorative cover up through the threaded pipe,

and then

secure it with the pine cone.

7. Pull out the source wires from the outlet box, make wire

connections using wire nuts as follows:

---Connect the hot wire (usually black insulation) from

the fixture to the black wire from the power source.

---Connect the neutral wire (usually white insulation)

from the fixture to the white wire from the power

source.

---Attach the fixture grounding wire (usually green

insulation or bare wire) to the mounting strap with

the green grounding screw,and then connect it to the

house grounding wire with the wire nut.

Carefully put the wires back into the outlet box.

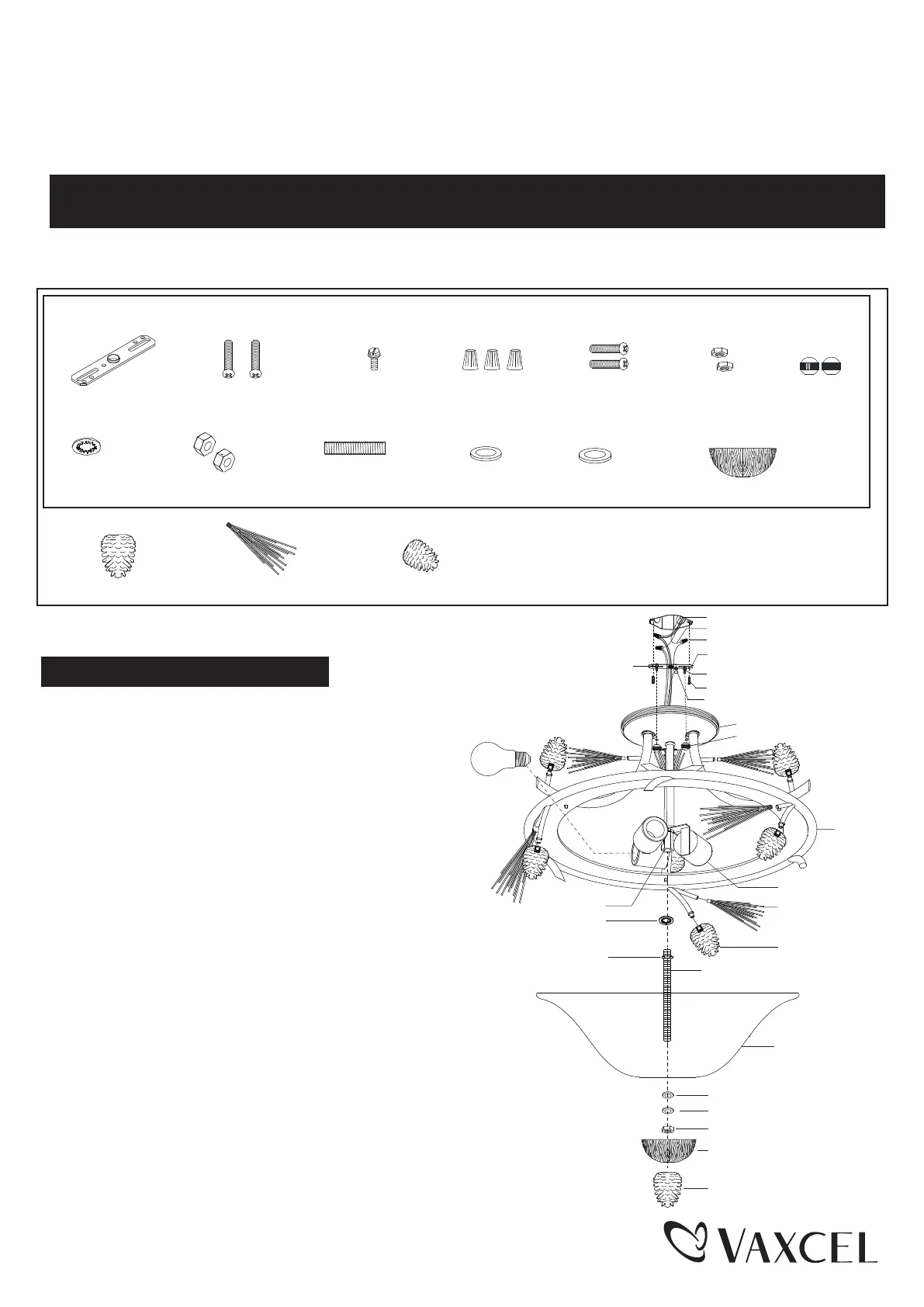

Installation Steps

Washer (H)

Hex Nut (I)

Rubber Pad (K)

Metal Pad (L)

Threaded pipe (J)

Outlet Box

House Grounding Wire

Wire Nut (D)

Fixture Mounting Screw (E)

Mounting Strap (A)

Green Grounding Screw (C)

Canopy

Main Body

Socket

Pine Needle (O)

Coupling

Washer (H)

Hex Nut (I)

Small Pine Cone (P)

Threaded Pipe (J)

Glass Shade

Rubber Pad (K)

Metal Pad (L)

Hex Nut (I)

Decorative Cover (M)

Pine Cone (N)

Mounting Screw (B)

Lock nut (F)

Ball Nut (G)

Decorative Cover (M)

Pine Cone (N)1pc

Small Pine Cone (P)6pcs

Pine Needle (O)6pcs

Bulb Type A Max.60W

(not included)

3. Secure the small pine cones and the pine needles onto the main

body as shown in the diagram.

240628

Page 1 / 2
