221107

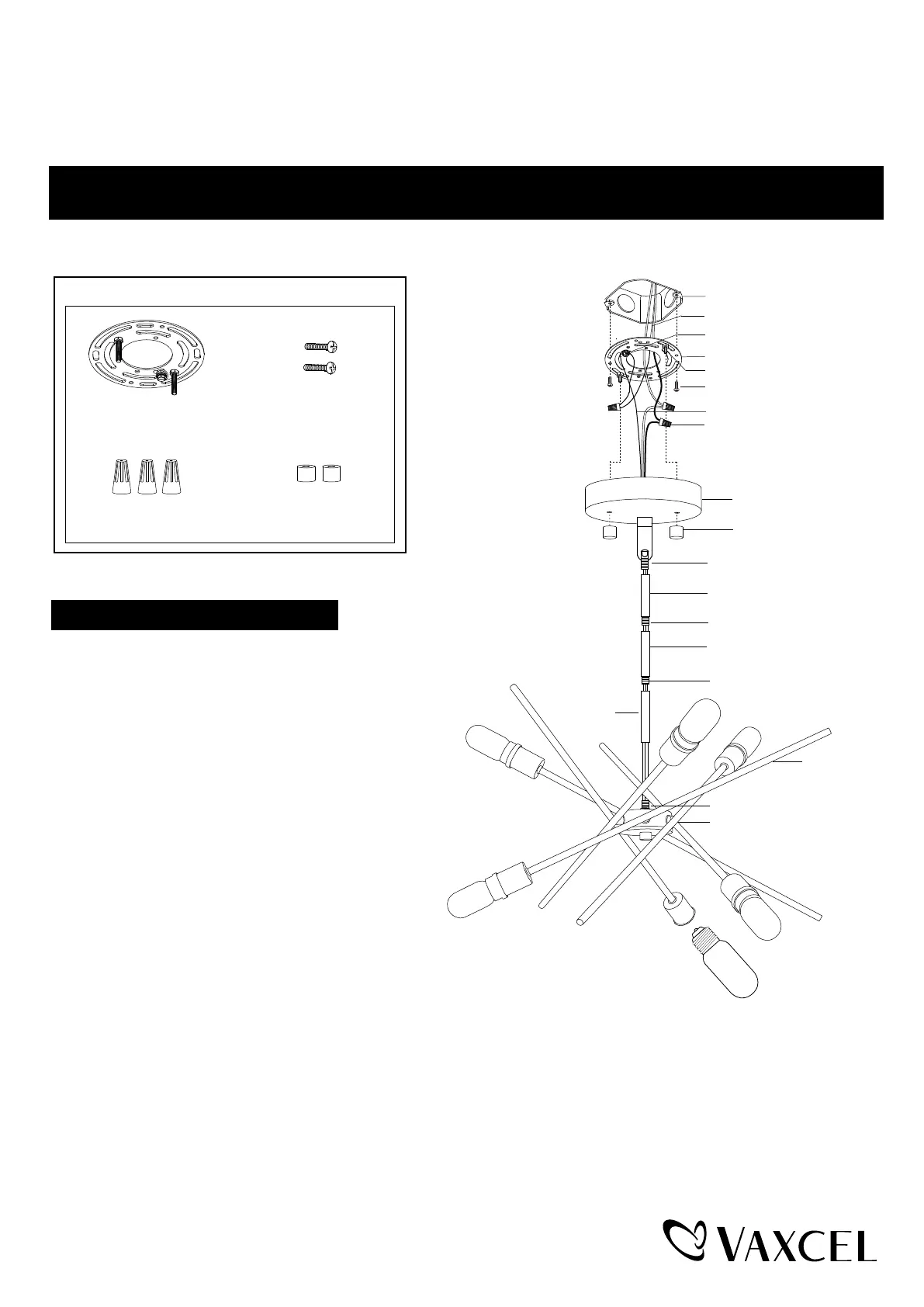

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
P0390
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
1. Attach mounting plate unit (A) to outlet box using two mounting
screws.
2. Rod Connections:
a. Thread the fixture wire from the fixture through the
lower rod, and then secure the lower rod onto fixture
using the threaded pipe.
b. Thread the fixture wire through the middle rod, and
then secure the middle rod onto the lower rod using
the threaded pipe.
c. Thread the fixture wire through the upper rod, and
then secure the upper rod onto the middle rod using
the threaded pipe.
Note: Length adjustable from 14-1/4" to 64-1/2".
Use fewer rods if shorter length is desired.
3. Thread the fixture wire through canopy, and then
secure the rod assembly to the set threaded pipe.
4. Carefully adjust the 6 pcs long rods as the picture shown by
rotating the long rods slightly in the same direction.
5. Pull out the source wires from the outlet box. Make wire connections using wire connectors
(C)
as follows:
---Connect the smooth-coated wire (marked) from the fixture to the black wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the white wire from the power source.
---Attach the fixture ground wire to the mounting
plate unit (A)
with the green ground screw, then connect it to
the house ground wire with a wire connector
(C)
.
Carefully put the wires back into the outlet box.
8. Install 6 X 60W Max. medium base bulbs (not included). See relamping label at socket area or packaging for
maximum wattage allowed.
Turn off the power at fuse or circuit box.
Installation Steps
Max. 60W Medium Base bulb
(not included)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
Canopy
Upper Rod
Middle Rod
Lower Rod
Threaded Pipe
Threaded Pipe
Threaded Pipe
Fixture
Long Rod
Set Threaded Pipe
Bolt Nut (D)
Wire Connector (C) Bolt Nut (D)
Mounting Screw (B)
Mounting Plate Unit (A)
Produktspezifikationen
| Marke: | Vaxcel |
| Kategorie: | Beleuchtung |
| Modell: | Halsted P0390 |
