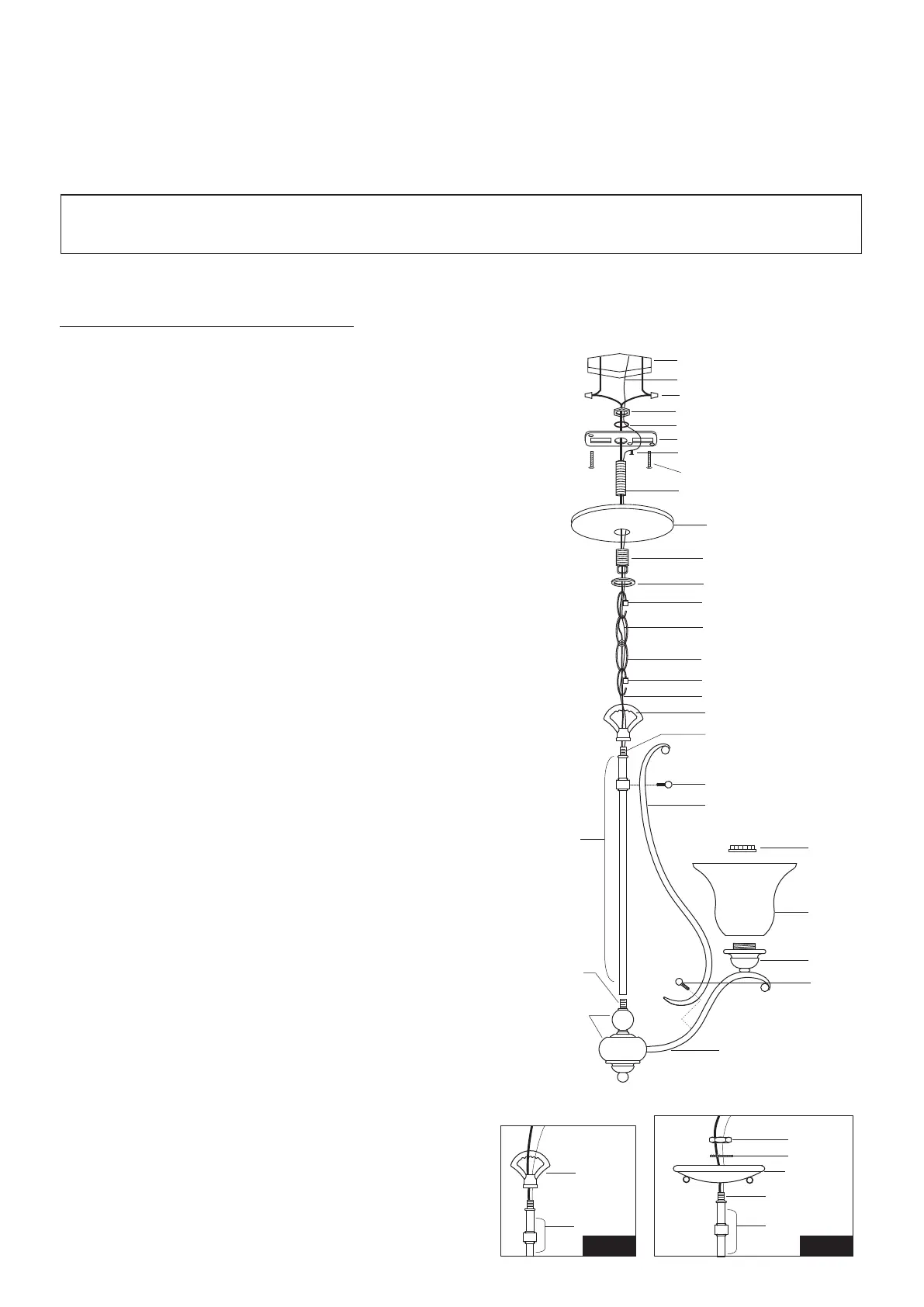

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: Before installing, consult local electrical codes for wiring and grounding requirements.
Installation Steps
CH35404
For Pendant:
For Semi-Flush:(See Fig.1)
1. Attach the nipple-1 to the mounting strap, and then secure with
a washer and a hex nut.
2. Attach the mounting strap to the ceiling box by using two
mounting screws.
3. Place one end of the arm-1 onto the arm-2, make the hole on
the arm-1 to the hole on the arm-2, and then secure with the
set screw.
4. Attach the other end of the arm-1 to the rod, and then secure
with the set screw.
5. Do the same way for other arms-1.
6. Secure the loop to the nipple-2 of the fixture.
7. Choose a certain length of the chain you need, and then weave
the fixture wire and the grounding wire through the chain. Then
connect one end of the chain with the loop by using the loop lock.
8. Secure the top loop to the nipple-1 tightly.
9. Thread the fixture wire and grounding wire through the collar, top
loop, canopy, nipple-1 and mounting strap in order.
10. connect the other end of the chain with the top loop by using
the loop lock.
11. Make wire connections with wire nuts:
---The smooth wire (marked) from fixture to the black
wire from power source.
---The ridged wire (unmarked) from fixture to the white
wire from power source.
---Attach the grounding wire and house grounding wire
to the mounting strap with a green grounding screw.
Carefully tuck wires back into the ceiling box.
12. Attach the canopy to the mounting strap by inserting
the top loop, and then secure with the collar.
13. Attach the glass shades to the glass holders, and then
secure with socket rings.
Note:The glass shades should be all in horizontal line.
14. Install bulbs. (Please do not exceed the maximum
capacity which is recommended on the package.)
15. Turn on the power at fuse or circuit box.
1. Remove the loop from the wires.(See Fig.1)
2. Attach the canopy-1 onto the rod, and then secure with
a washer and a hex nut.(See Fig.2)
Fixture Wire
Chain
Mounting Screw
Nipple-1
Grounding Wire
Collar
Top Loop
Canopy
Mounting Strap
Green Grounding Screw
Hex Nut
Wire Nut
Washer
Ceiling Box
House Grounding Wire
Loop Lock
Loop Lock
Loop
Set Screw
Set Screw
Arm-1
Rod
Socket Ring
Glass Shade
Glass Holder
Arm-2
Fixture
Nipple-3
Nipple-2
Rod
Rod
Loop
Washer
Hex Nut
Nipple-2
Canopy-1
Fig.2
Fig.1
CH35404---Page 1
