Loop

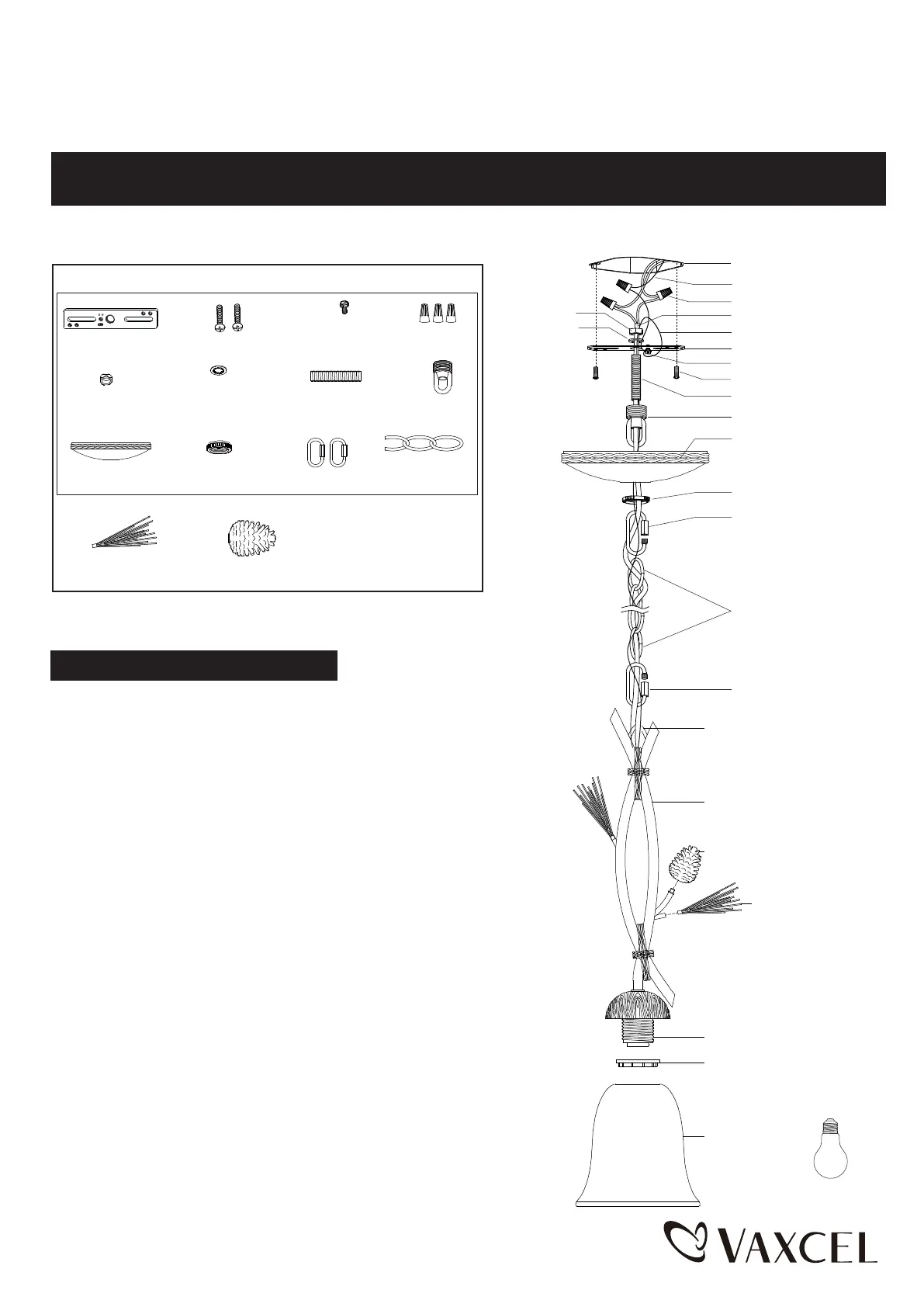

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

P0201

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Turn off the power at fuse or circuit box

Installation Steps

Hardware Package (included):

Outlet Box

House Grounding Wire

Wire Nut(D)

Fixture Wire

Fixture Grounding Wire

Mounting Strap(A)

Green Grounding Screw(C)

Mounting Screw(B)

Threaded Pipe(G)

Canopy(I)

Top Loop(H)

Hex Nut(E)

Washer(F)

Collar(J)

Loop Lock(K)

Loop Lock(K)

Chain(L)

Mounting Strap (A)

Mounting Screw (B)

Green Grounding

Screw (C)

Wire Nut (D)

Canopy (I)

Loop Lock (K)

Chain (L)

Hex Nut (E)

Washer (F)

Threaded Pipe(G)

Top Loop (H)

Collar (J)

Pine Needle (M)2pcs

Small Pine Cone (N)1pcs

6. Install bulbs (not included). Check relamping label at socket area or

packaging for maximum allowed wattage.

7. Connect the chain:

- Determine needed length of chain to achieve desired fixture height.

(To remove excess chain section, use pliers to bend link open).

- Weave the fixture wires through the chain, collar and canopy.

8. Connect one end of the chain to the loop using a loop lock.

9. Connect the other end of the chain to the top loop using the other

loop lock.

10. Thread the fixture wire and fixture grounding wire through the

top loop, threaded pipe and mounting strap.

1. Attach threaded pipe to the mounting strap, and then secure it with a

washer and a hex nut.

2. Attach mounting strap to outlet box using two mounting screws.

3. Secure the top loop to the threaded pipe.

4. Secure the small pine cone (N) and pine needle (M)

onto the fixture as shown in graph.

5. Attach the glass shades onto the socket , and then

secure it with the socket ring.

Main Body

Small Pine Cone(N)

Pine Needle(M)

Socket

Socket Ring

Glass Shade

Bulb Type A Max.60W

(not included)

Page 1 / 2

240702
