240703

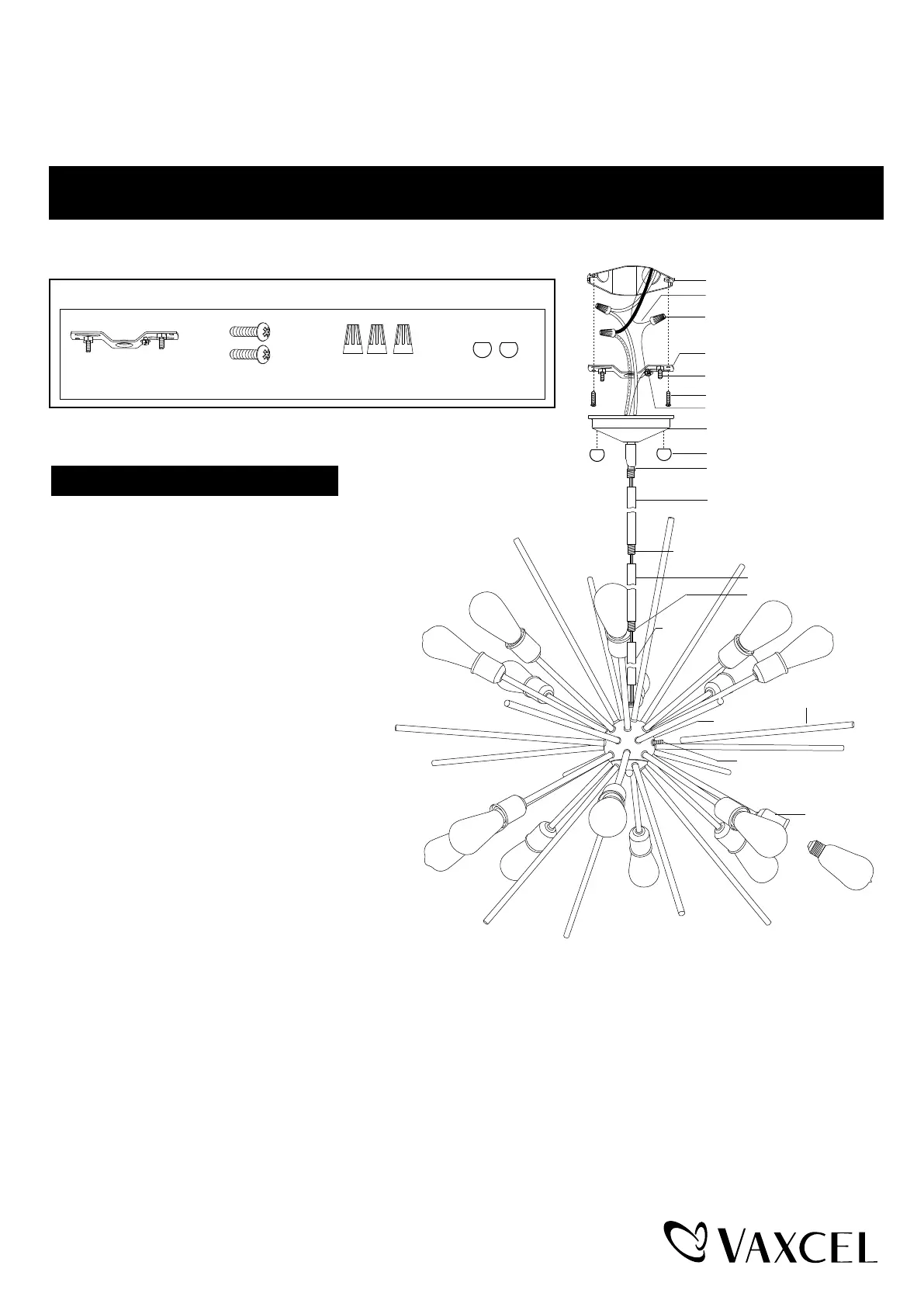

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

P0344

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

1. Attach mounting strap unit (A) to outlet box

using two mounting screws (B).

2. Rod Connections:

a. Thread the fixture wire from the fixture through

the lower rod, and then secure the lower rod

onto fixture using the threaded pipe.

b. Thread the fixture wire through the middle rod,

and then secure the middle rod onto the lower

rod using the threaded pipe.

c. Thread the fixture wire through the upper rod,

and then secure the upper rod onto the

middle rod using the threaded pipe.

Note: Length adjustable from 31" to

79". Use fewer rods if shorter length is

desired.

3. Thread the fixture wire through coupling kit, canopy,

then secure the rod assembly to the coupling kit.

4. Screw 16 long rods to the other threaded pipes of fixture.

5. Pull out the source wires from the outlet box. Make wire connections

using wire connectors

(C)

as follows:

---Connect the smooth-coated wire (marked) from the fixture to the black wire from the power source.

---Connect the ribbed-coated wire (unmarked) from the fixture to the white wire from the power source.

---Attach the fixture ground wire to the mounting strap unit

(A)

with the green ground screw, then connect it to

the house ground wire with a wire connector

(C).

Carefully put the wires back into the outlet box.

6. Attach the canopy to the mounting strap unit (A), then secure it with two bolt nuts (D).

7. Install bulbs (not included). See relamping label at socket area or packaging for maximum wattage allowed .

Turn off the power at fuse or circuit box.

Installation Steps

Mounting Strap Unit (A)

Socket

Long Rod

Fixture

Threaded Pipe

Threaded Pipe

Bolt Nut (D)

Canopy

Coupling Kit

Vintage Bulb

Max.40W

(not included)

Outlet Box

House Grounding Wire

Wire Connector (C)

Fixture Mounting Screw

Mounting Strap Unit (A)

Green Ground Screw

Mounting Screw (B)

Mounting Screw (B)Wire Connector (C)Bolt Nut (D)

Threaded Pipe

Upper Rod

Middle Rod

Lower

Rod
