PRODUCT MANUAL

Designed, Manufactured and Supported in the USA

C O M M U N I C AT I O N & S E C U R I T Y S O L U T I O N S

Gooseneck Pedestal Mounting Kit for the

E-1600A, E-1600-45A, E-1600-60A and E-1600-65A

Features

The model is a mounting kitE-1600A-MK-GNP

for attaching the E-1600A E-1600-45A E-, ,

1600-60A or E-1600-65A Emergency Phone to

a Viking gooseneck pedestal.VE-GNP

The kit includes stainless steel mounting hard-

ware, two gaskets to seal the back of the Emer-

gency Phone and a durable powder coated 12

gauge steel mounting plate.

• allows the ,E-1600A-MK-GNP E-1600A

E-1600-45A E-1600-60A E-1600-65A, or

Emergency Phone to be mounted directly

to a Viking gooseneck pedestalVE-GNP

• Durable 12 gauge steel mounting plate

• Plate is powder coat primed then top

coated with a UV stable black textured

powder coat

• Stainless steel mounting hardware is in-

cluded

• Two gaskets are included for sealing the

back of the Emergency Phone to the

gooseneck pedestal

• For mounting the following Viking Emer-

gency Phones to a Viking VE-GNP

gooseneck pedestal for emergency pool

phone applications etc.

- Red Emergency PhoneE-1600A

- Yellow Emergency PhoneE-1600-45A

- “Police” Emergency PhoneE-1600-60A

- Blue Emergency PhoneE-1600-65A

For more information on Viking Emer-

gency Phones, see DOD# 215

Dimensions: 5.37” x 3.40” x 0.105” (136.4mm x

86.4mm x 2.67mm)

Shipping Weight: 1.2 lbs (0.544 kg)

Environmental: -40°F to 150°F (-40°C to 65°C)

with up to 100% humidity

Included Hardware: (4) #10-24 x 5/8 stainless

steel truss head screws, (4) 10-24 stainless steel

nylock nuts

E-1600A-MK-GNP

E-1600A Gooseneck

Pedestal Mounting Kit

December 20, 2016

Applications

Specifications

www.vikingelectronics.com

Information: (715) 386-8861

VIKING

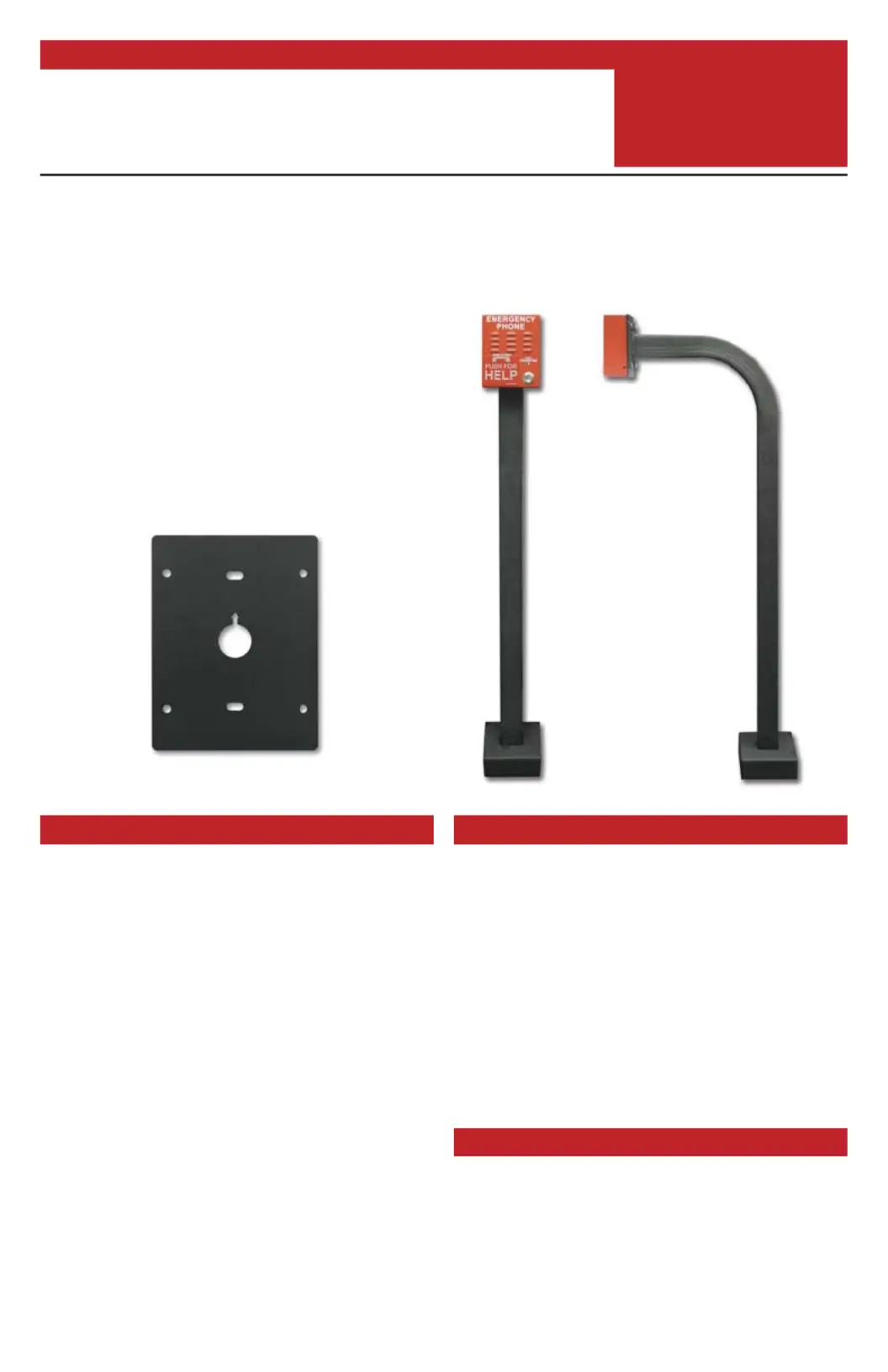

E-1600A-MK-GNP Mounting Plate

Model E-1600A

Emergency Phone

shown with VE-GNP

Pedestal and

E-1600A-MK-GNP

Mounting Kit

Square Gasket

(included)

Rectangle Gasket

(included)

E-1600A-MK-GNP

Mounting Plate

(included)

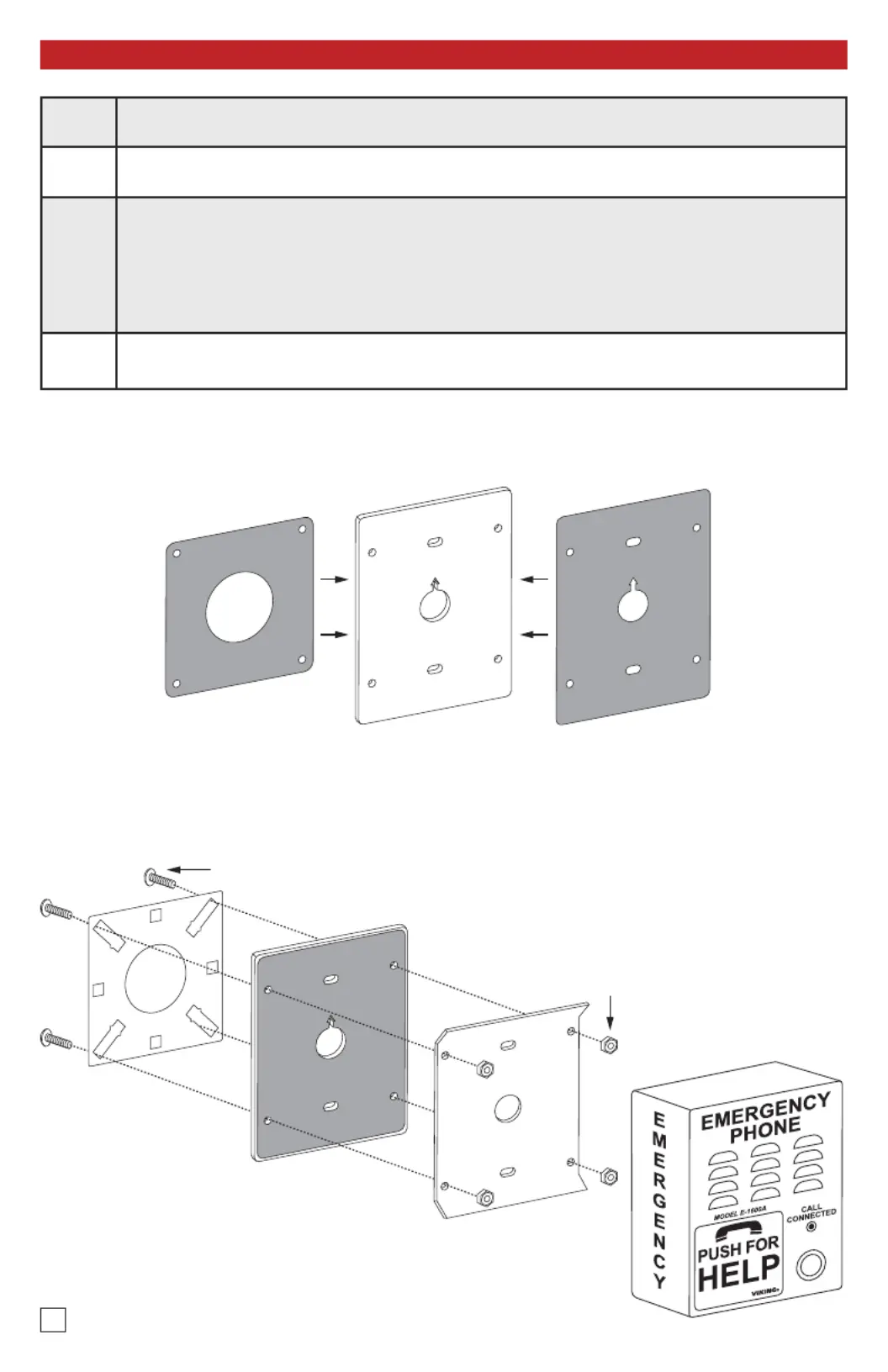

Installation

Step 1.

Adhere the square gasket to the mounting plate. Make sure gasket isE-1600A-MK-GNP

centered and holes align. (Figure 1)

Step 2.

Adhere the rectangular gasket to the other side of the mounting plate.E-1600A-MK-GNP

Make sure gasket is centered and holes and arrow symbol align. (Figure 1)

Step 3.

Place the back plate on the rectangular gasket side of the E-1600A E-1600A-MK-GNP

mounting plate. Pull the wires through the center hole on the plates. Make sure the arrow

symbol on the E-1600A-MK-GNP mounting plate is pointing UP then attach the

square gasket side of the plate to the pedestal mounting plate with the 4 trussVE-GNP

head screws and nylock nuts as shown. Do not tighten screws until all 4 screws are in-

serted and plate is aligned. (Figure 2)

Step 4.

Attach the wires from the pedestal to the with provided butt connectors then fas-E-1600A

ten the to mounting plate by tightening the set screw on the bottom of the unit.E-1600A

Model E-1600A

(not included) see DOD# 215

(4) 10-24 Nylock nuts

included with mounting kit

E-1600A-MK-GNP Mounting Plate

with both gaskets adhered

(4) #10-24 x 5/8 Truss Head screws

included with mounting kit

VE-GNP

mounting plate

(not included)

see DOD# 424

E-1600A back plate,

included with model E-1600A

Figure 1

Figure 2

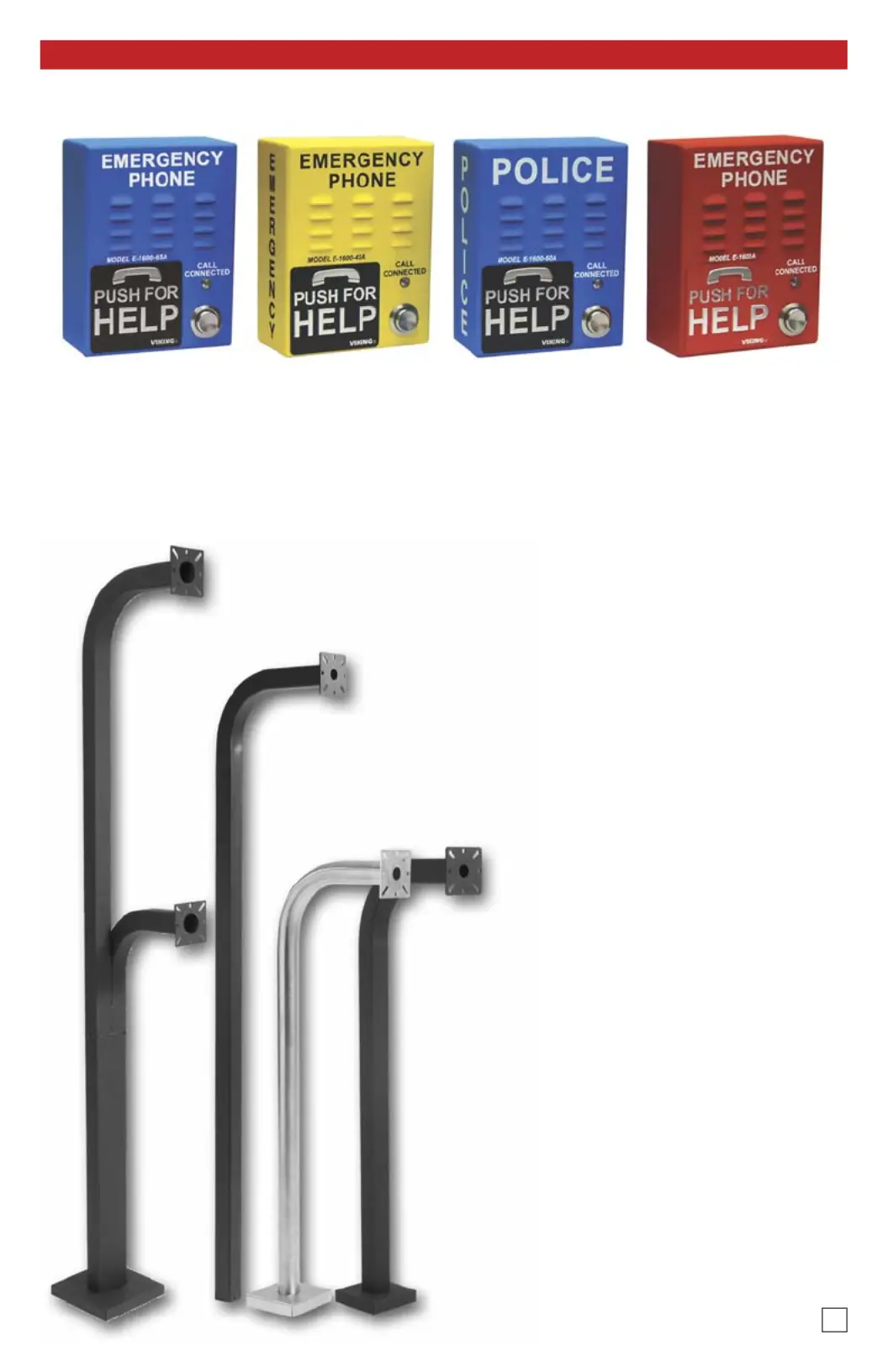

Compatible Viking Products

The 1600A Series ADA Compliant Emergency Phones are designed to provide quick and reliablehands-

free communication for any standard analog telephone line or analog phone system station port. All

1600A Series phones meet ADA requirements for elevator/emergency telephones, and can be pro-

grammed from any Touch Tone phone. The phones can dial up to 5 programmable emergency numbers,

as well as 2 central station numbers.

1600A Series Emergency Phones

E-1600-65A

Emergency Blue

E-1600-45A

Safety Yellow

E-1600-60A

Police Blue

E-1600A

Emergency Red

The 1600A Series phones can be programmed to auto-

matically deliver a digital announcement to identify the lo-

cation of the emergency call. Alternatively, a DTMF Touch

Tone code may also be delivered. A “Call Connected”

LED can be initiated manually or automatically. All pro-

gramming parameters, including phone numbers and lo-

cation numbers, are stored in non-volatile memory. All

units are phone line powered, requiring no batteries or

external power and are compatible with common Central

Station Monitoring equipment.

Gooseneck Pedestals

Viking’s gooseneck pedestals are designed to

be compatible with Viking products. Model

VE-GNP is a 42” tall, pad mount, black powder

paint gooseneck pedestal. Model VE-GNP-SS

is a 42” tall, pad mount, 304 brushed stainless

steel gooseneck pedestal. The VE-GNP-IG is

a 64” tall, in-ground mount, black powder paint

gooseneck pedestal. Model is aVE-GNP-2

42”/72” dual height, pad mount, black powder

paint gooseneck pedestal.

For more information on Viking Gooseneck

Pedestals, see DOD# 424.

For outdoor installations where the unit

is exposed to precipitation or conden-

sation, select 1600A Series phones

are available with Enhanced Weather

Protection (EWP).

For more information on the Viking

1600A Series, see DOD# 215.

VE-GNP-2

VE-GNP-IG

VE-GNP-SS

VE-GNP
