Compact Entry Phones available in Four Attractive Finishes

Features

Applications

Specifications

• Compact size: Front panel is the size of a typical single gang mid-size

wall plate

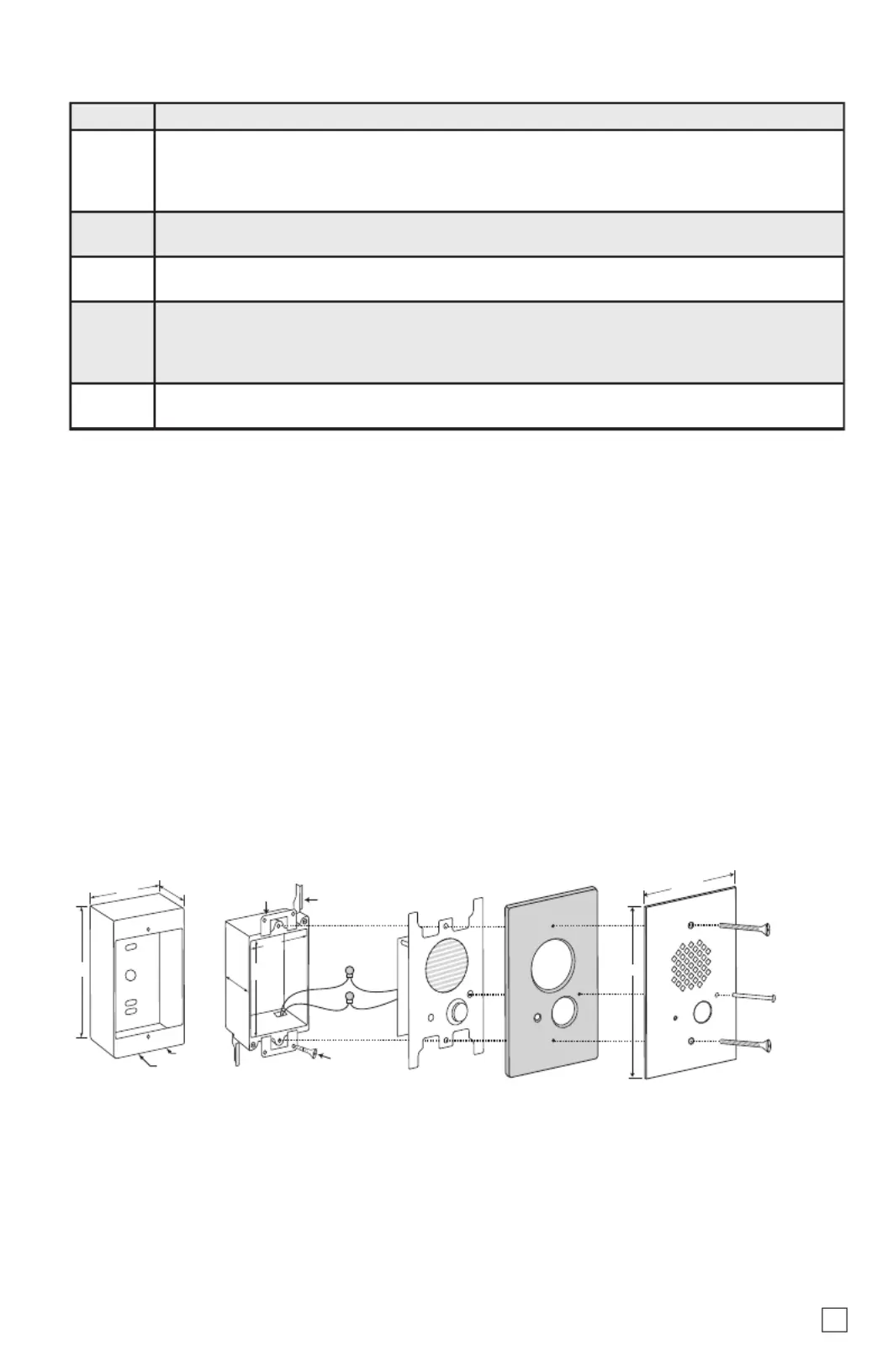

• Mounting: Flush mounts in a single gang electrical box (2.25” deep x

2.00” wide x 2.84” tall minimum) or surface mounts in a Viking model

VE-3x5 DOD 424 (not included, see ) for mounting on a wall, post or

VE-GNP Gooseneck Pedestal (EWP recommended)

• Available in 4 standard faceplate finishes: Brushed Stainless Steel,

Oil Rubbed Bronze, Satin Black and Satin White

• PNL-40 faceplates: Replacement faceplates with matching screws

available in all four standard finishes

• Vandal Resistant Features: 18 gauge 304 stainless steel faceplate,

316 stainless steel push button, fiberglass reinforced plastic speaker

screen, scratch resistant powder coating, hex drive mounting screws

• Weather Resistant Features: Mylar speaker, faceplate gasket,mic

and speaker gasket, internally sealed (IP67) push button switch, self

draining mic mount and UV stable weather resistantpowder coating

(excluding 304 Stainless Steel faceplate) E-40-SS

• is designed to meet IP66 Ingress Protection Rating (see E-40-EWP

DOD 859 for more information)

• Telephone line powered

• Microphone and speaker volume controls

• Programmable intelligent call progress detection for automatic hang-up

on CPC, silence, busy signal, or time out

• Selectable auto answer feature for monitoring

• Programmable VOX (mic/speaker) switching speed

• Blue LED helps locate push button, indicate ringing and off hook

• Door or gate communication, business delivery entrances

• Use with a or to control on a single line Viking C-200 C-250 E-40

• Use with a to control 1 or 2 (expandable to 8) Viking C-500 E-40’s

and door/gate control on a single phone line

• Use with a to control 1 to 4 ’s and door/gate Viking C-2000B E-40

control on a single phone line

• Provide unique front and back door chimes and paging when

used with a , and Viking SLP-1 SLP-4 C-2000B

• Residential, commercial and industrial door security

• Use with a or for automatic speed Viking K-1900-5 K-1900-30

dialing on telephone lines or analog PABX/KSU station ports

• Use on any analog PABX station port with programmable

ringdown capability

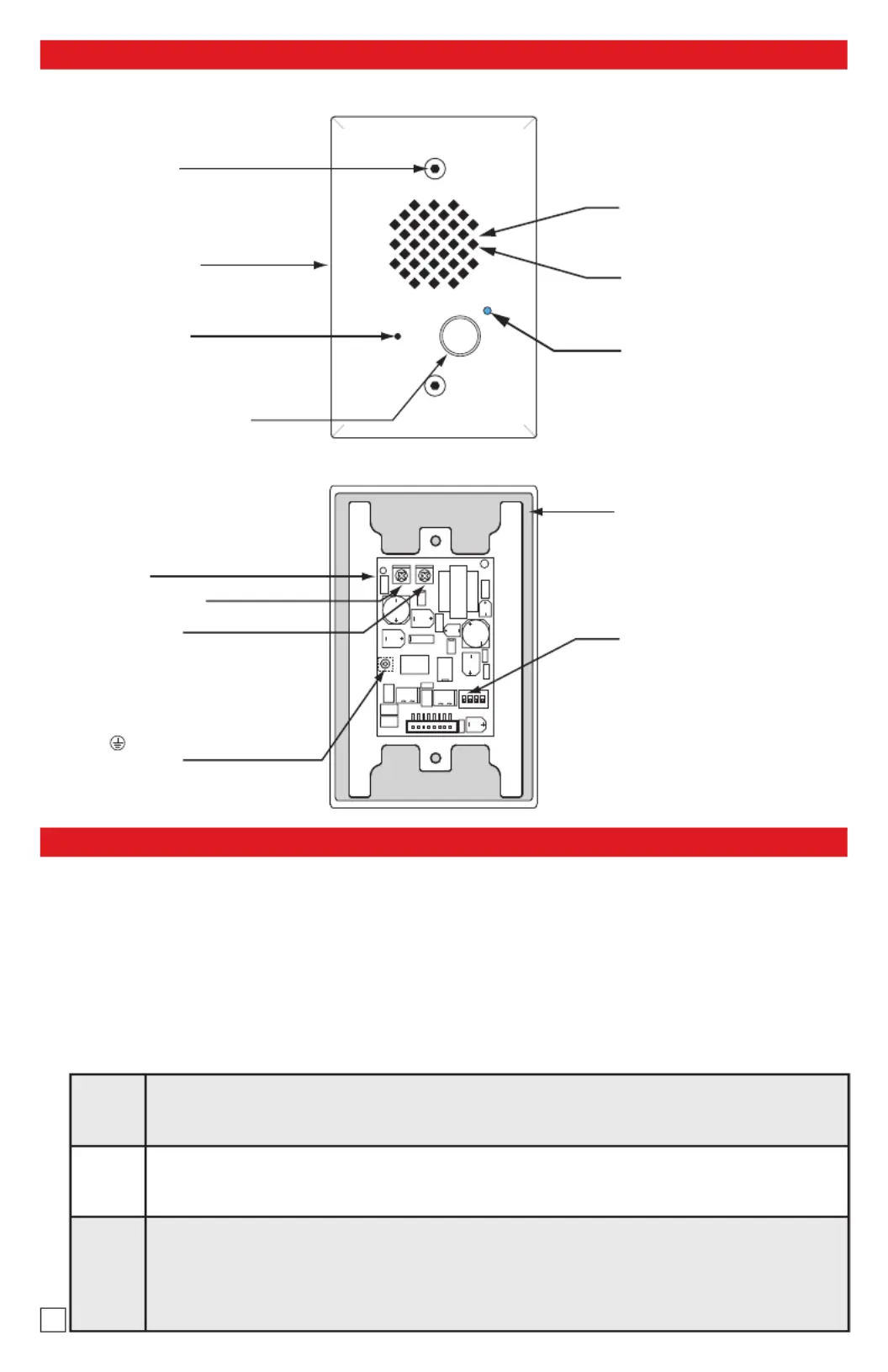

The E-40 Series entry phones are compact,

weather and vandal resistant, telephone line

powered speaker phones designed to provide

two-way handsfree audio communication. The

E-40's compact size allows it to be mounted in

a standard single gang electrical box. The E-

40 is available in four different attractive

finishes to match your door hardware, light

fixtures, etc. Replacement faceplatesE-40

( PNL40) can be purchased separately and are

available in all four standard finishes. The

E- 40’s blue LED continually provides light for

locating the push button in dark locations, dims

to indicate off hook and flashes during incoming calls.The entry phones can share a single phone line with house or smallE-40

business telephones when used with a model or Entry Phone controller. The entryViking C-200 500, C-250, C- C-2000B E-40

phones can also be connected to an unused analog station port (programmed for ring down) on a phone system or connected

directly to a telephone line when used with a Viking model K-1900-5 or K-1900-30 auto dialer. The E-40 features microphone and

speaker volume controls, selectable auto answer for monitoring and intelligent call progress detection for automatic hang-up when

the call is completed. For outdoor installations where the unit is exposed to precipitation or condensation, the Series is availableE-40

with Enhanced Weather Protection ( ). For more information on , see .EWP EWP DOD 859

Power: Telephone line powered. Minimum 18V DC talk battery

voltage with a minimum loop current of 20mA. Loop current may be

boosted on low current lines with a Viking model TBB-1B Talk Battery

Booster (see ). DOD 632

Dimensions: Faceplate: 4.875” x 3.125” x 0.18” (123.8mm x 79.4mm

x 4.6mm), Phone: 2.84” x 1.8” x 1.65” (72mm x 46mm x 42mm)

Shipping Weight: 1.0 lbs (0.45 kg)

Operating Temperature: -30° F to 150° F (-34° C to 65° C )

Humidity: Standard model: 5% to 95% non-condensing humidity,

EWP model: up to 100% humidity

Speaker Volume: Approximately 62db maximum @ 1m

Ring Voltage: 25V AC RMS minimum (for auto answer)

CPC Disconnect Time: 300ms minimum

REN: 0.8A

Connections: (2) gel-filled butt connectors

E-40-SS

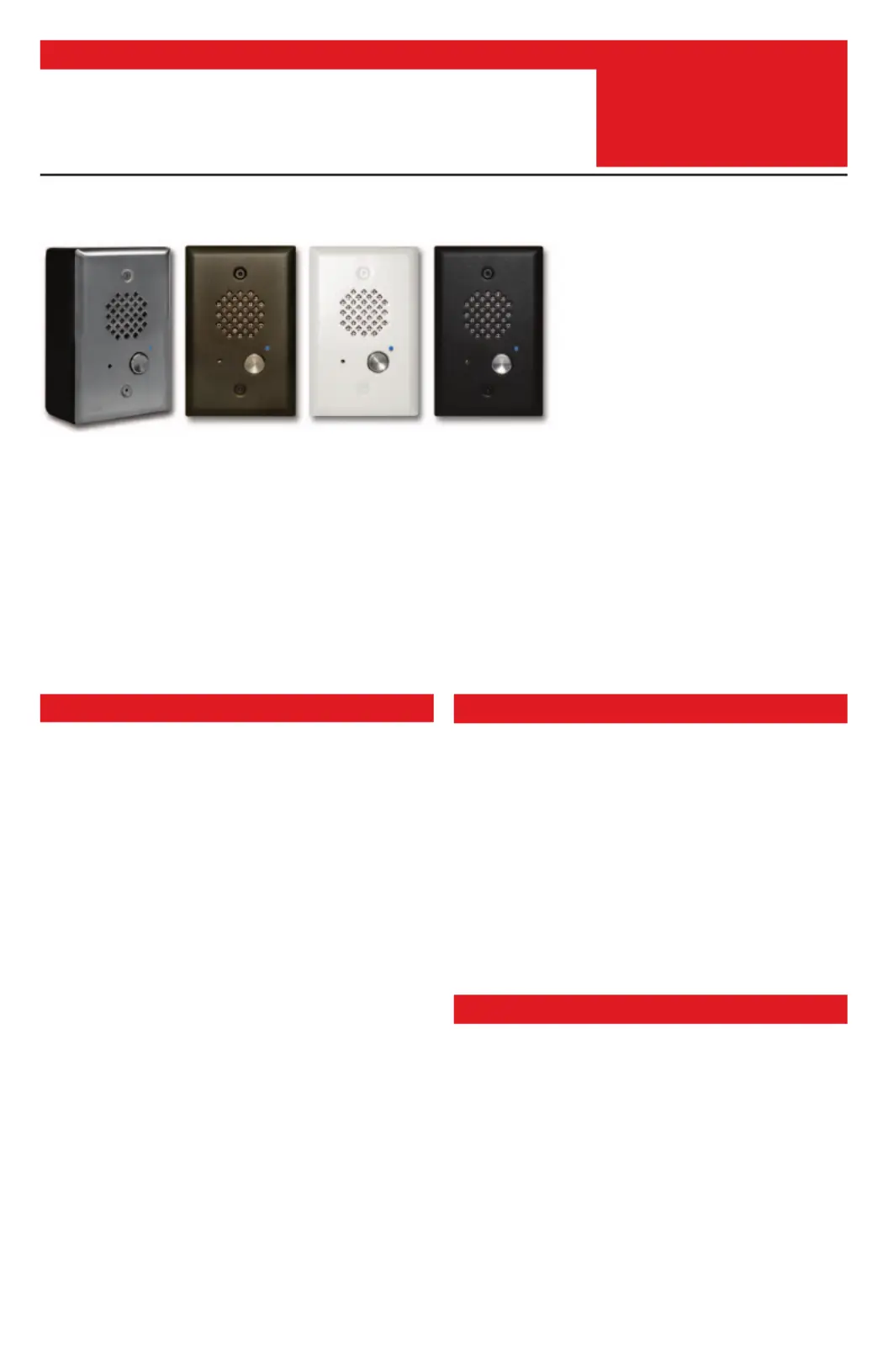

“Brushed Stainless Steel”

(similar to brushed nickel) Shown

with optional surface VE-3x5

mount box

E-40-BK

“Textured Black”

(fine texture black

powder paint)

E-40-WH

“Satin White”

(satin white

powder paint)

E-40-BN

“Oil Rubbed Bronze”

(satin dark brown

powder paint with fine

copper metallic)

www.VikingElectronics.com

Information: 715-386-8861

DESIGNED, MANUFACTURED AND SUPPORTED IN THE USA

E-40 Series

Compact Single Gang

Entry Phone with LED

September 2, 2021

PRODUCT

MANUAL

SECURITY & COMMUNICATION

VIKING
