PRODUCT MANUAL

Designed, Manufactured and Supported in the USA

C O M M U N I C AT I O N & S E C U R I T Y S O L U T I O N S

Features

The K-1205 Entry Phone is a two-way, handsfree

telephone with 12 buttons for calling individual

residences in an apartment building. It also has a

built-in color CCTV video camera. The rugged

stainless steel faceplate has a printed directory

housed in a waterproof, scratch-resistant lens.

Each button is beside the tenants name in the

directory so there are no confusing codes to deal

with. Calling a particular tenant is as easy as

pressing a single button. The has a built inK-1205

speed dialer that can handle up to 12 primary

phone numbers, each with 22 digits. If there is no

answer at the first number, a second number can

be called automatically. Once the tenant answers

their phone, a single touch tone command can

activate the door strike relay. For “no phone line”

applications, the is compatible with the K-1205 C-

3000 no CO (phone line) controller. The high

resolution video camera is mounted on an

adjustable bracket so it can be positioned just right

to view the outside visitor.

The K-1205-EWP shares all of the features of the

K-1205 in addition to Enhanced Weather

Protection (EWP) for outdoor installations where

• Vandal Resistant Features: 14 gauge louvered 316

stainless steel faceplate with permanent laser etched

graphics, heavy duty metal keypad and T-10 Torx

security screws.

• Marine grade 316Weather Resistant Features:

stainless steel faceplate and screws. Internally sealed

keypad. Mylar speaker. Self-draining mic mount.

Faceplate, keypad, mic and speaker gaskets.

• is designed to meet IP66 IngressK-1205-EWP

Protection Rating (see DOD 859 for more info)

• Built-in high resolution color video camera with wide

viewing angle, tilt/swivel adjustments and wide oper-

ating temperature of -30°F to 150°F

• Entry phone operates on 12 to 24 volts AC/DC. Video

camera requires 6 to 22 volt DC power.

• 12 speed dial buttons (22 digits each)

• 12 alternate number positions (22 digits each)

• One button operation (no call button)

• Hang up on CPC, busy, silence, time-out or dial tone

• Touch tone restriction from microphone

• Integral relays for camera control and door strike

• Works with for increased securityC-1000B

• Works with for “No CO” (phone line) operationC-3000

• 50 keyless entry codes and postal lock input

• Small apartment buildings

• Professional buildings

• Gated communities

Dimensions: 5" x 10" x 2.5 (127mm x 254mm x 63.5mm )

Shipping weight: 5.5 lbs. (2.5 kg)

Standard K-1200 Environment: -30° F to 150° F (-34° C

to 65° C) with 5% to 95% non-condensing humidity

K-1200-EWP Environment: -30° F to 150° F (-34° C to

65° C ) with up to 100% condensing humidity

Relay Contact Rating:

Door Strike: 5A @ 30VDC/250VAC Maximum

Camera: 0.5A @ 125 VAC, 1.0A @ 30VDC

Connections: (13) gel-filled butt connectors (3M

Scotchlok UR2)

(See page 2 for complete specifications)

K-1205/EWP

Multi-Button Handsfree

Entry Phone with Camera

April 26, 2018

Applications

Specifications

www.V ikingElectronics.com

Information: 715-386-8861

VIKING

the unit is exposed to precipitation or

condensation. EWP products feature foam rubber

gaskets and boots, sealed connections, gel-filled

butt connectors, as well as urethane or thermal

plastic potted circuit boards with internally sealed,

field-adjustable trim pots and DIP switches for easy

on-site programming.

(shown in optional

VE-5x10-SS, not included)

12 Button Apartment Entry Phone with

Built-In Door Strike Relay and Camera

Camera Specifications

Power: 6-22V DC 150mA (12V DC UL Listed adapter

included)

Image Sensor: 1/4” color CMOS

Video Output: 1 VP-P composite, NTSC, 75 ohms

Resolution: 420 lines (640 x 480 @ 30fps / 307,200

pixels)

Sensitivity: 0.025 LUX (50 IRE) F 1.2 3200K

Lens: 2.1mm, conical pinhole

FOV(Field of View): 80° Horizontal, 60° Vertical, 100°

Diagonal

Tilt/Swivel Adjustment: Vertical +/- 20°, horizontal +/-

30° (see Diagram A)

IR Compatibility: This camera is equipped with an OLP

(Optical Low Pass) filter to maintain correct video color

in outside applications. The standard camera is NOT

compatible with IR illuminators. If IR illumination is

required, you will need to replace the exisiting camera

with a Viking model . For more information,VCAM-1IR

see .DOD# 190

Maximum Wire Run Length: 1000 ft with *RG59/RG6

for video and CAT5 for power (1 pair) and entry phone

audio (1 pair). 150 ft with CAT5E for video, power and

entry phone audio (longer video runs are possible by

using video balun transceivers, see sectionInstallation

D, 2. Using CAT5E or CAT6 for Video and Camera

Power on page ). 4

* Note: RG59 or RG6 with solid center conductor and

95% bare copper braid shield.

Entry Phone Specifications

Power: 12 to 24V AC or DC, 12V DC adapter provided.

Note: To assure operation during a power outage, a UPS

should be used. Operating Temperature: -34° C to 65°

C (-30° F to 150° F)

Dimensions: 127mm x 254mm x 63.5mm (5" x 10" x

2.5")

Operating Temp: -35°C to 66°C (-30°F to 150°F)

Shipping weight: 2.5 kg (5.5 lbs.)

Connections: (13) gel-filled butt connectors (3M

Scotchlok UR2)

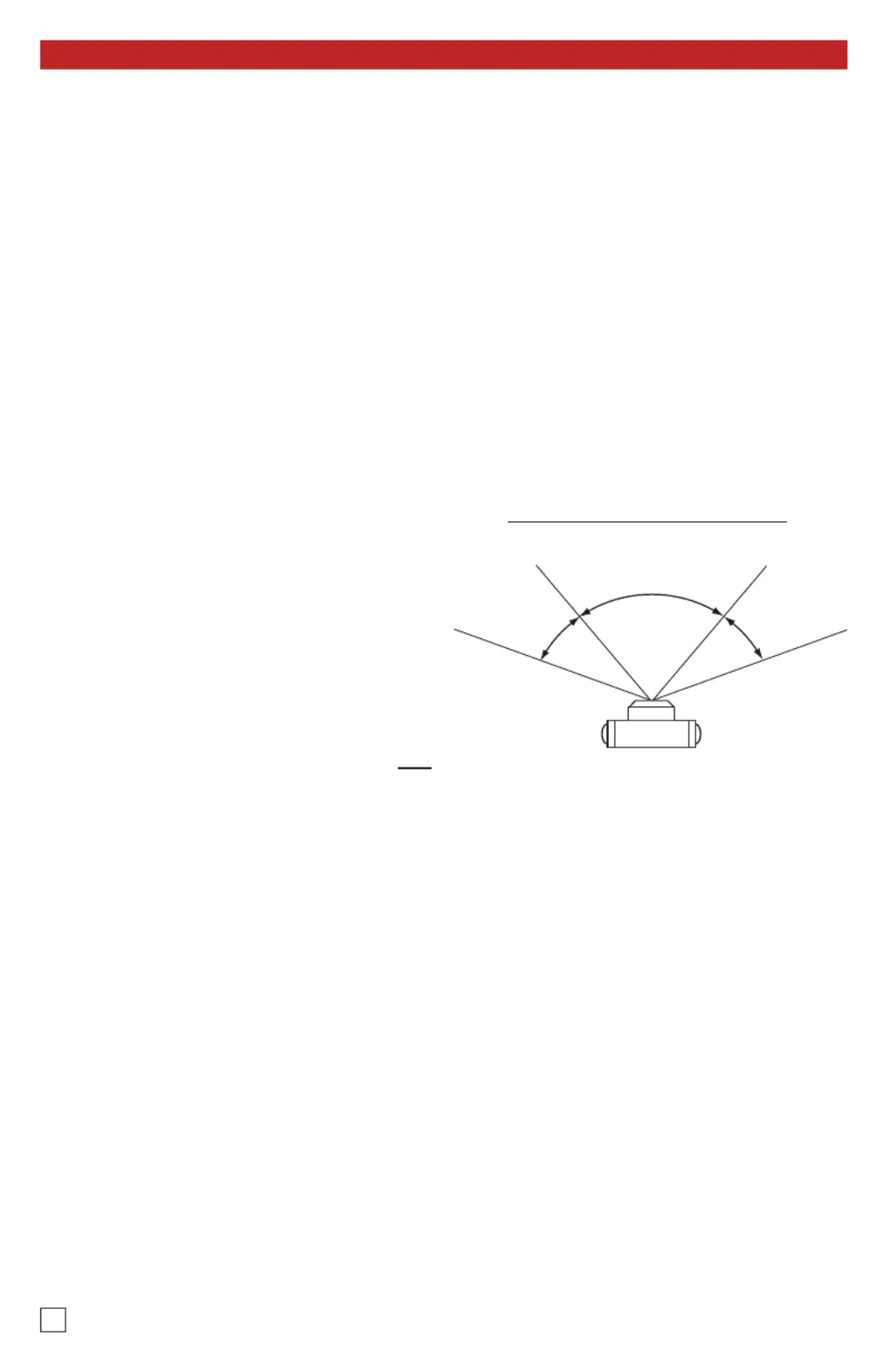

80° Lens FOV

Rotate

Left 30°

Rotate

Right 30°

Camera Lens

Diagram A

Camera Horizontal Field of View:

Entry Phone / Camera Specifications

Humidity: Standard model: 5% to 95% non-condensing,

EWP model: Up to 100%

Relay Contact Rating: Door Strike: 5A @

30VDC/250VAC Maximum, Camera: 0.5A @ 125 VAC,

1.0A @ 30VDC

Connections: (13) gel-filled butt connectors (3M

Scotchlok UR2)

Recommended Surface Mount Box: VE-Viking model

5x10 (DOD# 424)

Specifications

Color Function

Black Power In

Green Phone Line In

Red Phone Line In

Brown Door Strike Relay common

Orange Door Strike Relay NC

Yellow Door Strike Relay NO

Blue Camera Relay common

Violet Camera Relay NC

White Camera Relay NO

Installation

IMPORTANT: Electronic devices are susceptible to lightning and power station electrical surges from both the AC

outlet and the telephone line. It is recommended that a surge protector be installed to protect against such surges.

A. Mounting

The K-1205 is designed to be installed in a sheltered location, and is not meant to be used outdoors. For outdoor

applications use the can either be installed as a flush mount unit using the includedK-1205-EWP. The K-1205

rough in box, or as a surface mount unit using an optional . The rough in box uses the inner set of fourVE-5x10

holes on the face plate while the uses the outside set of holes. A set of dummy screws and nuts areVE-5x10

provided to fill the unused mounting holes.

VIKING

Optional VE-5x10 Surface Mount

Box (not included), see DOD# 424

10.0"

9.5"

4.50"

2.596"

5.00"

8.65"

0.425"

0.952"

Front View

of the K-1205

9.12"

2.5"

4.5"

Zinc-Plated Steel

Rough-In Box

(included)

Side View

of the K-1205

(8) #6-32 x 3/4" Stainless

Steel, T-10 Torx Security

Screws with drive bit

(included)

14 Gauge Marine

Grade 316 Stainless

Steel Faceplate

10.14"

3.69"

5.22"

- OR -

B. Changing the Directory

To install a directory, remove the four screws that

mount the directory lens to the front of the K-1205

using the included Allen wrench. Insert a paper

directory behind the lens and secure the two back onto

the front panel being careful to align the names with the

front panel graphics.

Note: To print directory forms for the , go toK-1205

www.vikingelectronics.com and enter “930” in the DOD

field at the top of the page for a direct link to the PDF.

Paper Directory
