PRODUCT MANUAL

Designed, Manufactured and Supported in the USA

SECURITY & COMMUNICATION

Features

The K-1270 Entry Phone is a two-way, handsfree

telephone with 12 buttons for calling individual

residences in an apartment building with an

integrated 125 KHz Proximity Card Reader. The

rugged stainless steel faceplate has a printed

directory housed in a waterproof, scratch-resistant

lens. Each button is beside the tenants name in the

directory so there are no confusing codes to deal

with. Calling a particular tenant is as easy as

pressing a single button. The K-1270 has a built in

speed dialer that can handle up to 12 primary

phone numbers, each with 22 digits. If there is no

answer at the first number, a second number can

be called automatically. Once the tenant answers

their phone, a single touch tone command can

activate the door strike relay. For “no phone line”

applications, the K-1270 is compatible with the

C-3000 no CO (phone line) controller.

The K-1270-EWP shares all of the features of the

K-1270 in addition to Enhanced Weather

Protection (EWP) for outdoor installations where

the unit is exposed to precipitation or

condensation. EWP products feature foam rubber

• Built-in 125KHz 26-bit Wiegand proximity card reader with LED,

beep card read confirmation, and EWP board protection

• Compatible with the following Viking Proximity Cards and Fobs:

PRX-C, PRX-C-ISO and PRX-FOB (DOD# 198)

• Vandal Resistant Features: 14 gauge louvered 316 stainless

steel faceplate with permanent laser etched graphics, heavy duty

metal keypad and T-10 Torx Security mounting screws.

• Weather Resistant Features: Marine grade 316 stainless steel

faceplate and screws. Internally sealed keypad. Mylar speaker.

Self-draining mic mount. Faceplate, keypad, mic and speaker

gaskets.

• Designed to meet IP66 Ingress Protection Rating (see DOD 859)

• Operates on 12 to 24 volts AC/DC

• 12 speed dial buttons (22 digits each)

• 12 alternate number positions (22 digits each)

• One button operation (no call button)

• Hang up on CPC, busy, silence, time-out or dial tone

• Touch tone restriction from microphone

• Integral relays for camera control and door strike

• Works with C-1000B for increased security

• Works with C-3000 for “No CO” (phone line) operation

• 50 keyless entry codes

• See model K-1205 for integral camera

• Postal lock input

• Optional VE-5x10 surface mount box, sold separately (DOD 424)

• Small apartment buildings

• Professional buildings

• Gated communities

Power: 12 to 24 Volts AC or DC, 12VDC adapter provided

Proximity Card Reader Power: 5 to 14V DC @ 60mA maximum

Note: To assure operation during a power outage, a UPS

should be used.

Dimensions: 127mm x 254mm x 63.5mm (5" x 10" x 2.5")

Shipping weight: 2.2 kg (4.8 lbs.)

Standard K-1270 Environment: -34° C to 65° C (-30° F

to 150° F) with 5% to 95% non-condensing humidity

K-1270-EWP Environment: -34° C to 65° C (-30° F to

150° F) with up to 100% condensing humidity

Relay Contact Rating:

Door Strike: 5A @ 30VDC/250VAC maximum

Camera: 0.5A @ 125 VAC, 1.0A @ 30VDC

Connections: (16) gel-filled butt connectors (3M

Scotchlok UR2)

Applications

Specifications

www.vikingelectronics.com

Information: (715) 386-8861

VIKING

gaskets and boots, sealed connections, gel-filled

butt connectors, as well as urethane or thermal

plastic potted circuit boards with internally sealed,

field-adjustable trim pots and DIP switches for easy

on-site programming.

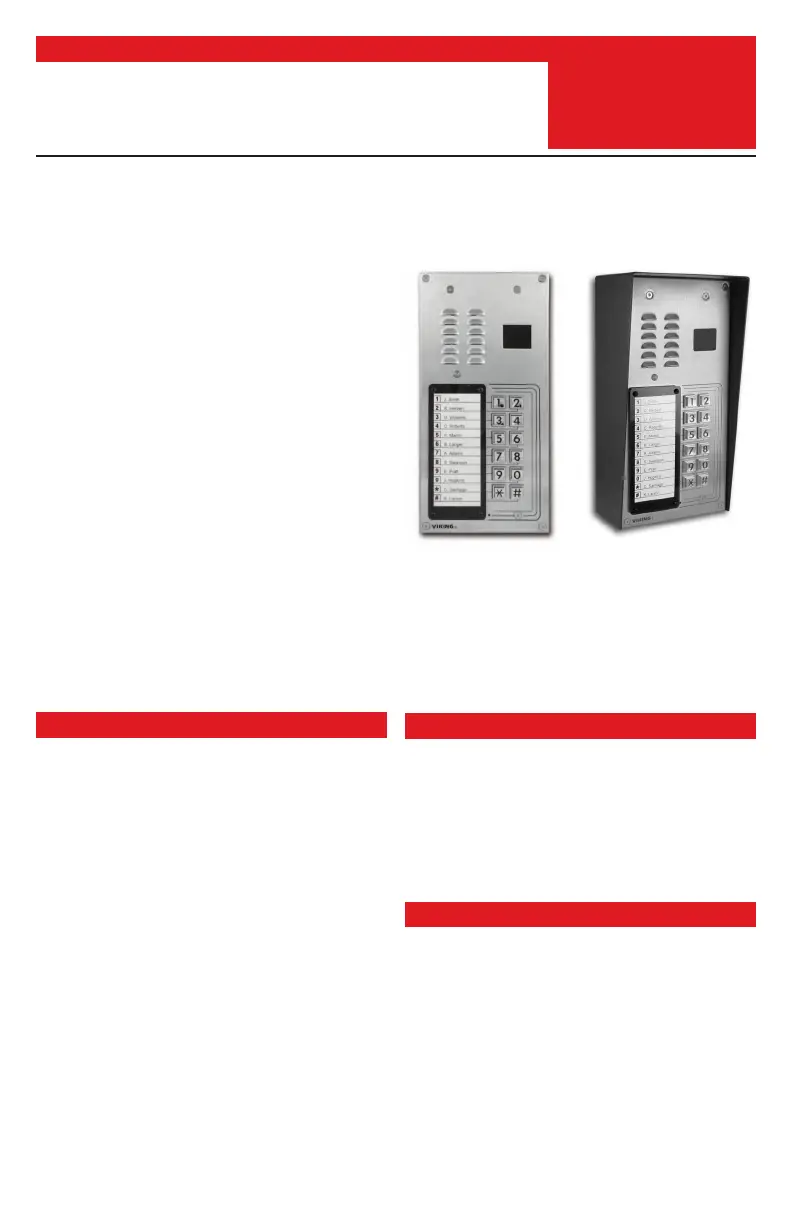

12 Button Apartment Entry Phone with Built-In

Door Strike Relay and Proximity Card Reader

“Brushed 316 Stainless Steel”

(similar to brushed nickel)

K-1270 Series

Entry Phones with Keypads

and Proximity Card Readers

July 5, 2017

(shown in optional

VE-5x10-SS, not included)

Power: 5 to 14V DC @ 60mA maximum

Maximum Cable Length: 500 ft 24 Awg stranded shielded

(Belden 9537)

Frequency: 125KHz

Format: 26 bit Wiegand

Read Range: 1.25” to 2.0”

Technologies Supported: Viking PRX-C, PRX-C-ISO,

PRX-FOB, LRT-4, certain legacy HID® proximity protocols*

and certain AWID 125Khz proximity protocols**

Transducer: Beeps during card read

LED: Red, turns off during card read

Humidity: Up to 100% (fully potted EWP)

Operating Temperature: -34° C to 65° C (-30° F to 150° F)

* HID and the HID logo are registered trademarks of HID

Global Corporation, an ASSA ABLOY company. All other

trademarks are the property of their respective owners.

** AWID is a trademark of Applied Wireless Identification Group.

Proximity Card Reader Specifications

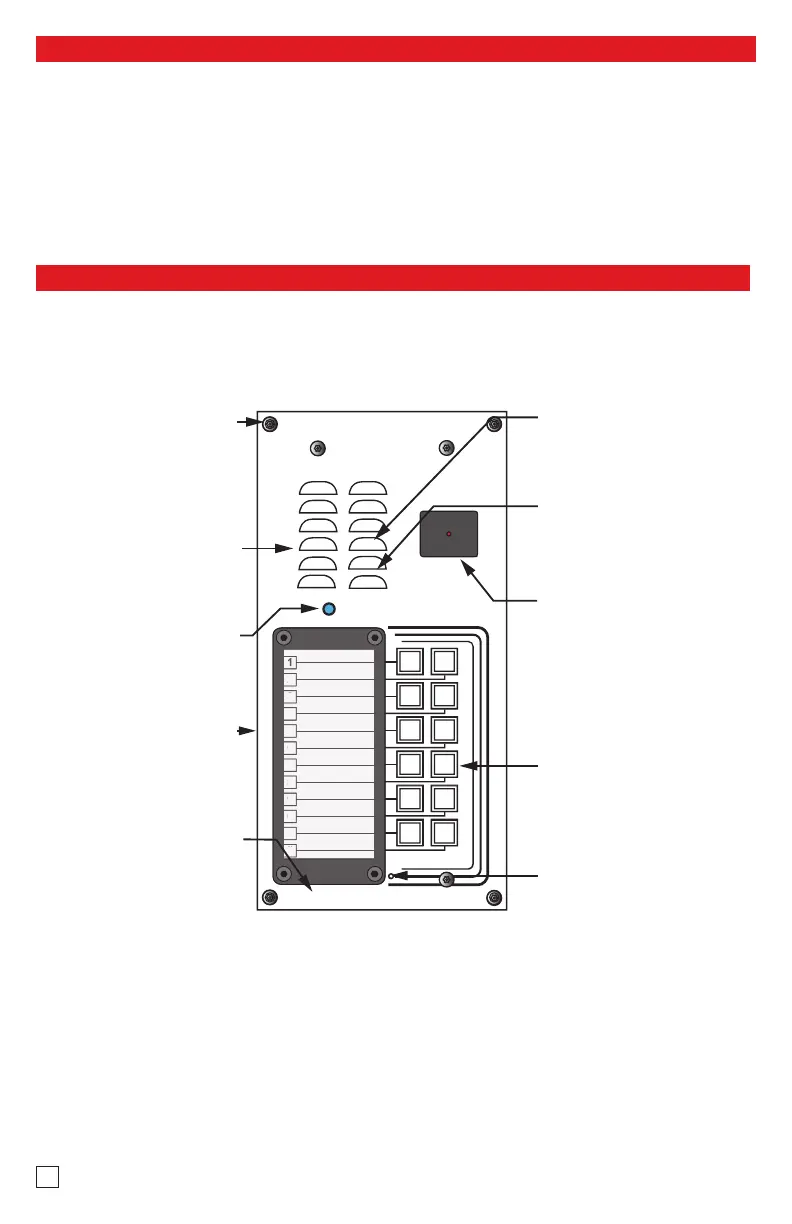

Fea tures Overview

Keypad: Push to initiate call,

push again to disconnect. Zinc

Die cast with Satin Chrome

Finish, internally sealed per

IP67.

Speaker Screen: Speaker

screen with 0.018" wide slots

to prevent punctures from

paperclips, etc.

Faceplate Material: 14 gauge

316 stainless steel with #4

brushed finish.

Speaker: Mylar speaker with

rubber gasket to maintain

water-tight seal and eliminate

water deterioration.

Blue Call LED: Lights steady

to help locate the button in low

light.

Microphone: Omni-directional

microphone with protective

water-resistant cloth.

Front View of the

K-1270 Entry Phone

Condensation Drain Hole

Mounting Screws:

(8) 6-32 X

3/4” Marine grade 316

stainless steel, flat head, T-10

Torx security screws and drive

bit (included).

Laser Etched Graphics: For

long lasting easy to read

graphics.

VIKING

Proximity Card Reader:

26-bit Wiegand, 125KHz, red

LED turns off and transducer

will beep during card read.

Fully potted EWP. Read range

1.25" to 2.0". Impact resistant

polycarbonate lens with

water-tight gasket.
