WAC Lighting

www.waclighting.com

Phone (800) 526.2588 • Fax (800) 526.2585

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050

Phone (516) 515.5000 • Fax (516) 515.5050

Western Distribution Center

1750 Archibald Ave • Ontario, CA 91761

Phone (800) 526.2588 • Fax (800) 526.2585

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2014

INSTALLATION INSTRUCTION

2.5” Low Voltage - Electronic Non-IC Remodel

HR-801

SAFETY INSTRUCTION

IMPORTANT: NEVER attempt any work without shutting o the electricity.

• Read all instructions before installing.

• For installation by a qualied electrician.

• System is intended for installation in accordance with National Electric Code, and local regulations.

Consult with local inspector to assure compliance.

• To reduce the risk of re, electrical shock and injuries to persons, turn o power at

main switch before installing or modifying the system.

• Retain instructions for future maintenance reference.

OVERVIEW

Housing is non-insulation contact, remodeling type, and 50 watts maximum.

Trim and housing combination will determine maximum trim wattage.

Housing requires a trim from the HR-800 series, and lamp to be complete

(ordered separately). If dimming, will generally work with

standard electronic low voltage dimmers.

CUT OUT:

1. Use the template (supplied) to make a 3” cut out hole

in the existing ceiling.

2. Pull ceiling wire through the hole.

WIRING:

1. Junction box is suitable for chain wiring of multiple

xtures and is supplied with a spring latch door, and

two trade size knockouts for BX or Romex® connectors.

2. Remove junction box door and connect xture wires to

building wires: Green ground wire to bare copper or green

building wire, white xture wire to white neutral wire,

black xture wire to (hot) black wire.

3. Secure with wire nuts (supplied).

4. Replace junction box door.

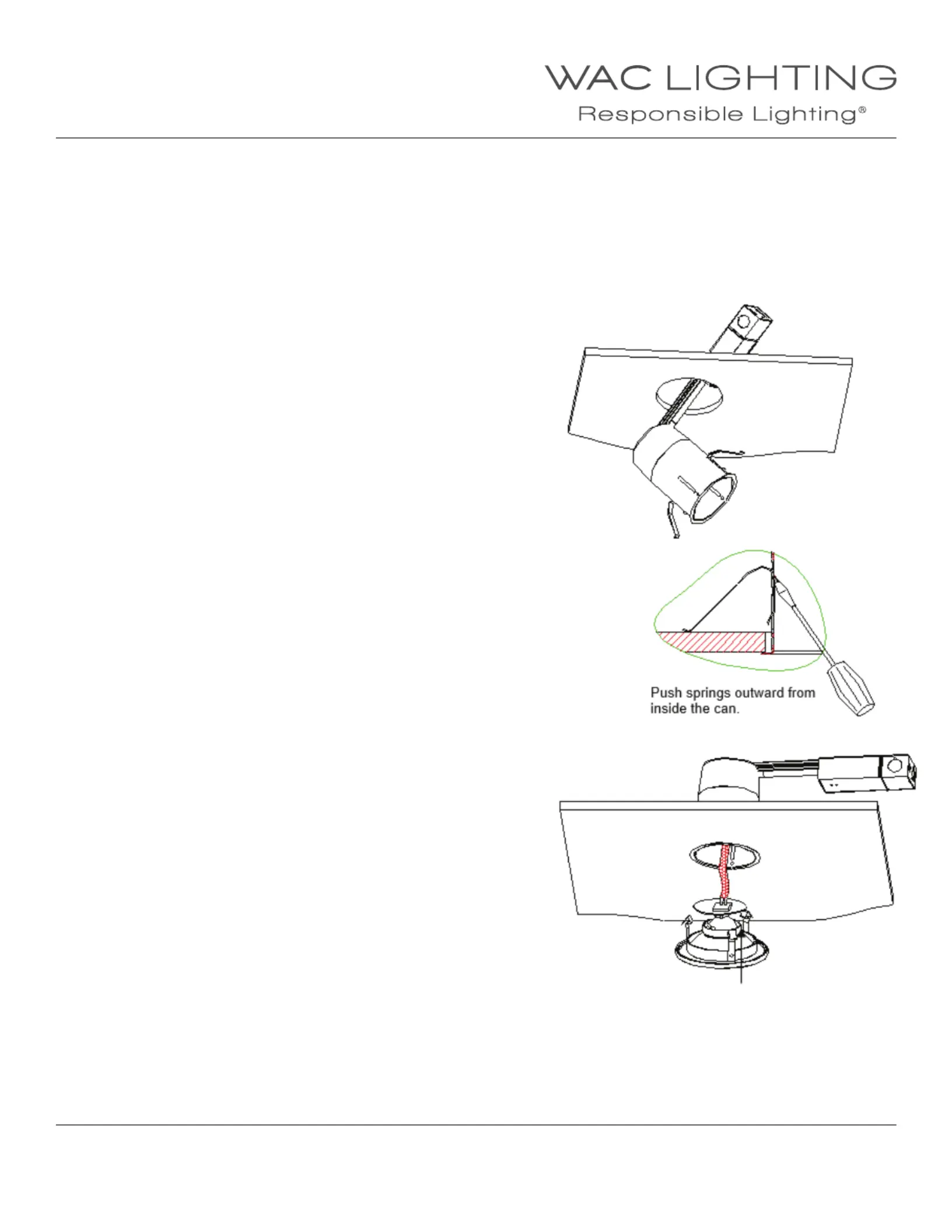

MOUNTING:

1. Pivot the J box up through the hole, followed by the can.

2. Hold the rim snug to the ceiling surface.

3. From inside the housing push and pivot the housing clips

so they make contact with the top of the ceiling

Note: 3/4 inch maximum ceiling thickness.

FINISHING:

1. Socket wire is sucient in length to be attached to the pins

of the lamp before it is inserted.

2. Push the trim assembly up until the trim ring is ush to the ceiling.
