Seite 1/7

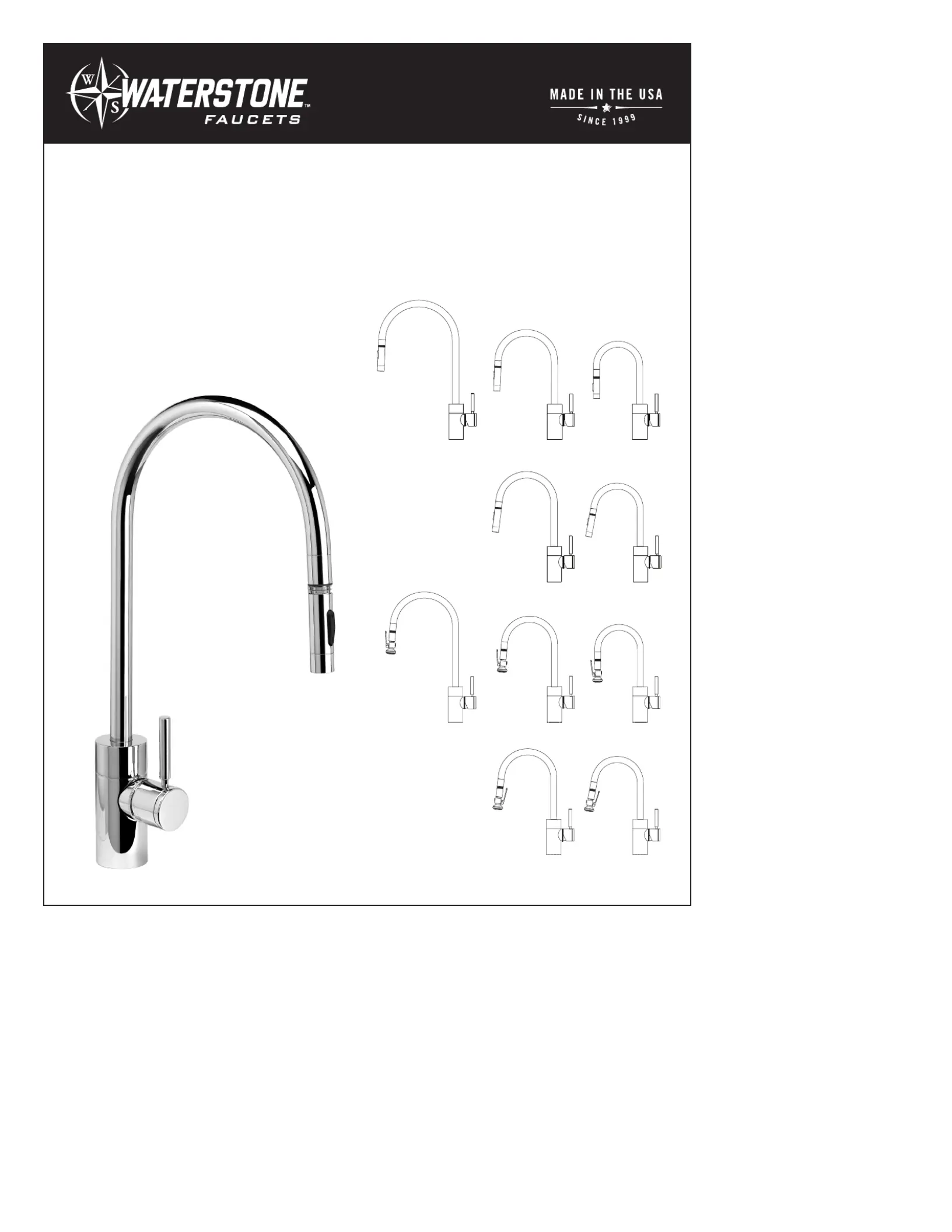

Model #s:
5300, 5400, 5410, 5700, 5800, 5810,
5900, 5910, 5930, 5940
CONTEMPORARY PLP PULLDOWN FAUCET
INSTALLATION INSTRUCTIONS
5700 5800
5810 5940
5930
59005400
59405410
5300

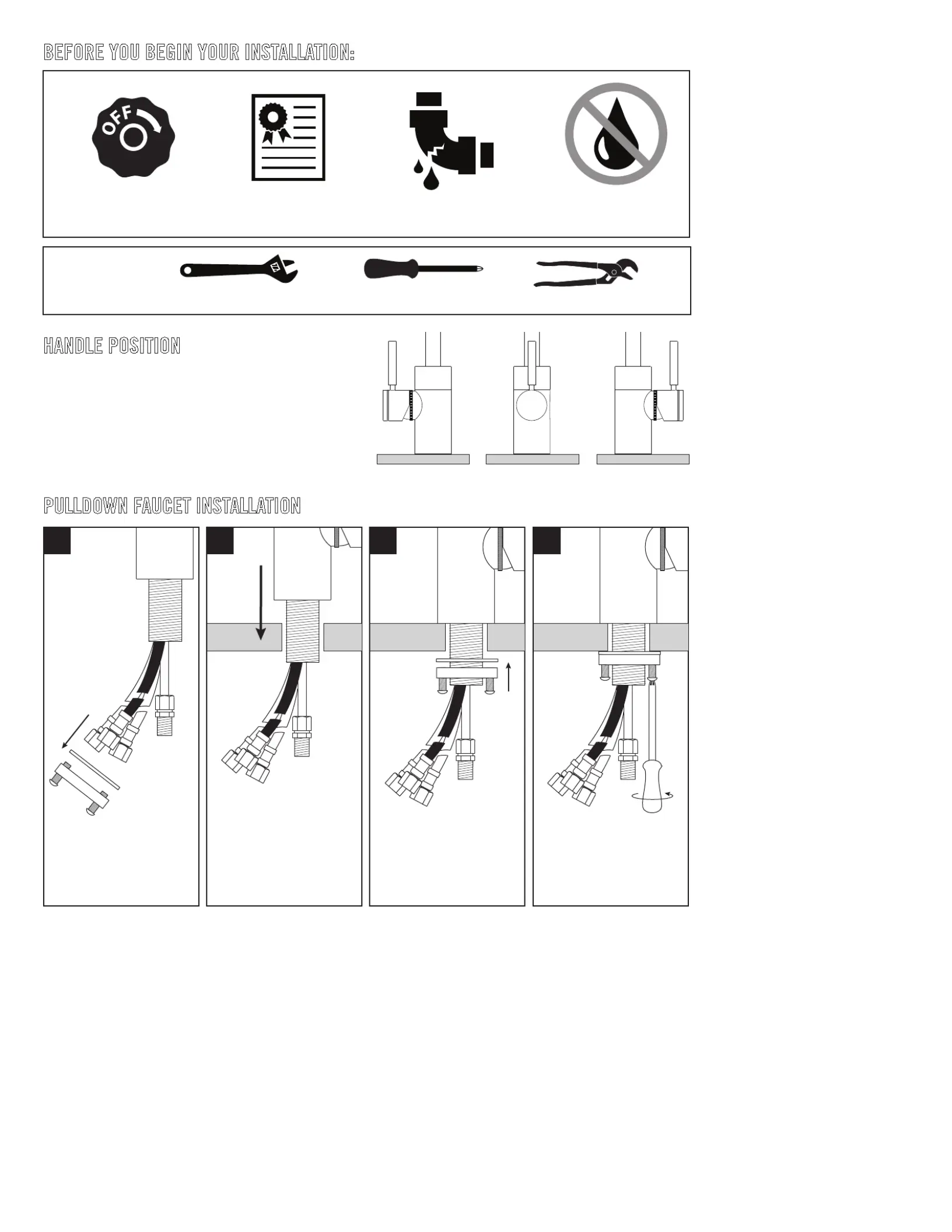

PULLDOWN FAUCET INSTALLATION
1 2 3 4
Turn o water supply. Observe all local
plumbing codes.
Inspect plumbing for signs of
damage. Replace as necessary.
DO NOT use petroleum based
products on this faucet.
REQUIRED TOOLS:
Phillips ScrewdriverAdjustable Wrench Channel Locks
BEFORE YOU BEGIN YOUR INSTALLATION:
Waterstone faucets are designed to be installed in 3 dierent faucet
positions. Choose to have the handle on left, front or right. Your faucet is
factory congured for the most common positions - a front and right side
installation. To reverse this and have the handle positioned on the left,
connect the hose for cold water to the hot supply and the hose for hot water
to the cold supply. This will maintain the relationship of pulling the handle
for hot water or pushing for cold water.
HANDLE POSITION
HANDLE ON LEFT HANDLE IN FRONT HANDLE ON RIGHT
F
COUNTER
OR SINK
2. 3. 4.
DE
1.
A
B
C
Remove the clamp nut (A) and
washer (B) from the threaded
shroud (C).
Slide washer and thread the
clamp nut onto threaded shroud.
Tighten nut snug to underside of
sink or counter.
Turn faucet to the desired handle
position. Securely tighten clamp
screws (F).
Fit exible hoses (D) and spray
connection tube (E) through hole
on counter or sink. (No plumbers
putty is required. O-ring seals base).
CONNECT THE PULLDOWN SPRAY HOSE
Before connecting supply hoses,
ush supply stops to clear any
debris. Place a bucket underneath
stops and run water for 5 to 10
seconds. Turn water o. Carefully
position hot and cold supplies so
they will not interfere with other
hoses. Connect supply hoses (A)
to supply stops (B). DO NOT use
teon tape or plumbers putty.
Turn water back on and check for
leaks.
CONNECTING SUPPLY HOSES
A
B
ORIGINAL FACTORY POSITION
MAY HIT BACKSPLASH
NEW ADJUSTED POSITION
CLEARS BACKSPLASH

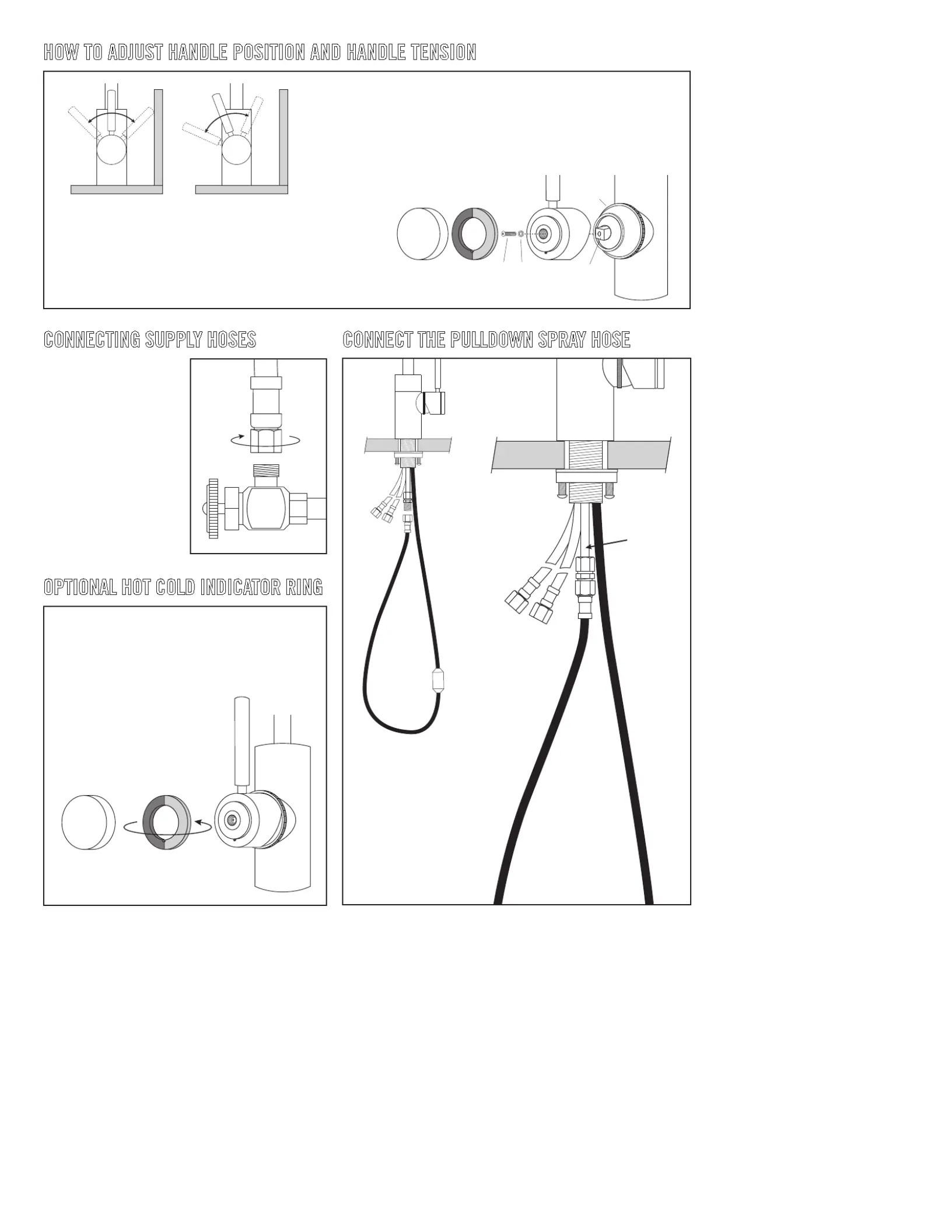

HOW TO ADJUST HANDLE POSITION AND HANDLE TENSION
On some kitchen countertops, the handle may hit the
backsplash when the faucet handle is positioned to the left
or right (Fig. 1). Waterstone gives you the option of adjusting
the handle 22.5 degrees to avoid hitting backsplash.
FIG.1
RED FOR HOT
BLUE FOR COLD
OPTIONAL HOT COLD INDICATOR RING
To reverse, or remove Hot and Cold Indicator Ring,
unscrew the metal cap, remove ring and ip. Slide ring
back onto handle and screw metal cap back on.
Unscrew and remove metal cap (A) and Hot and Cold Indicator Ring (B). Unscrew and
remove holding screw (C) and washer (D). Hold handle (E) in a vertical position. Wiggle
and pull straight o faucet. Rotate handle 22 degrees away from backsplash then slide
handle back onto valve stem (F). Insert holding screw with washer and tighten. Slide
Hot and Cold Indicator Ring onto handle and thread metal cap back into place. To adjust
handle tension, turn ring (G) clockwise to increase
or counterclockwise to decrease.
A B E
G
C D F
B
A
C
Connect spray hose (A) to spray
connection hose tube (B).
NOTE – make sure spray hose
(A) and counter balance (C) are
free to slide up and down and
are not in conict with any
plumbing components or
items under sink.
