MOUNTING AND WIRING INSTRUCTIONS

NOTE: Underwriters Laboratories (UL) does not require all fixtures to have ground wires. These fixtures

meet all UL specifications.

1. Turn off power at circuit box to avoid possible electric shock.

2. Thread mounting screws (A) into mounting bar (B) (see fig. 1) approximately 1/4 inch.

3. Secure mounting bar (B) to outlet box (C) with outlet box screws (D) (if applicable).

4. Identify color coding of fixture wires (see fig. 2).

5. Connect the black wire from the fixture with the black wire (hot wire) from the outlet box by wire

connector (E), and wrap the wire connector (E) with electrical tape for a more secure connection.

6. Connect the white wire from the fixture with the white wire (neutral wire) from the outlet box by

wire connector (E), and wrap the wire connector (E) with electrical tape for a more secure connection.

7. Partially thread green grounding screw (F) into side hole (G) on mounting bar (B) (see fig.1).

8. Wrap grounding wire from fixture around green grounding screw stem (F) leaving enough excess wire,

then connect the excess grounding wire from the fixture with the grounding wire from outlet box by

wire connector (E) (if applicable), then wrap the wire connector (E) with electrical tape for a more

secure connection.

9. Tighten green grounding screw (F). Do not over tighten.

10. Tuck wires inside outlet box (C).

FIXTURE ASSEMBLY INSTRUCTIONS

Warning: This fixture is for indoor use only.

1. Position canopy (H) over mounting screws (A) by aligning key slots (I) with mounting screws (A).

2. Rotate canopy (H) until mounting screws (A) lock into narrow end of key slots (I). Secure into place with

mounting screws (A).

3. Move the slide switch to your appropriate light color (2700K/ 3000K/ 3500K/ 4000K/ 5000K).

4. Unscrew thumb screws (J) enough to insert glass shade (K).

5. Carefully support glass shade (K) while securing thumb screws (J). Shade (K) is secure when thumb

screws (J) fit snugly under shade lip (L).

WARNING

Turn off electricity to the mounting site before beginning installation.

Mounting instructions must be followed exactly as shown for the fixture to be

safely supported.

CLEANING AND CARE

To clean, wipe fixture with soft cloth. Clean glass with mild soap. Spray from chemical cleaners can

discolor the finish of fixture. Do not use scouring pads, powders, steel wool or abrasive paper to clean

this fixture.

ORDERING PARTS

Keep this manual for future reference, and in case replacement parts are needed. Available parts can be

ordered from place of purchase. Use exact wording from diagrams when ordering parts.

FIGURE 2.

FIXTURE

WIRES:

Black

HOUSE

WIRES:

Black

(Hot)

HOUSE

WIRES:

White

(Neutral)

HOUSE

WIRES:

Bare

Copper

(Ground)

FIXTURE

WIRES:

Bare

Copper

(Ground)

FIXTURE

WIRES:

White

KEY SLOTS (I)

*OUTLET

BOX (C)

GREEN GROUNDING

SCREW (F)

SHADE LIP (L)

CANOPY WITH

INSULATION (H)

GLASS

SHADE (K)

SIDE

HOLE (G)

MOUNTING

BAR (B)

*OUTLET BOX

SCREWS (D)

MOUNTING

SCREWS (A)

WIRE

CONNECTORS (E)

THUMB

SCREWS (J)

*NOT SUPPLIED

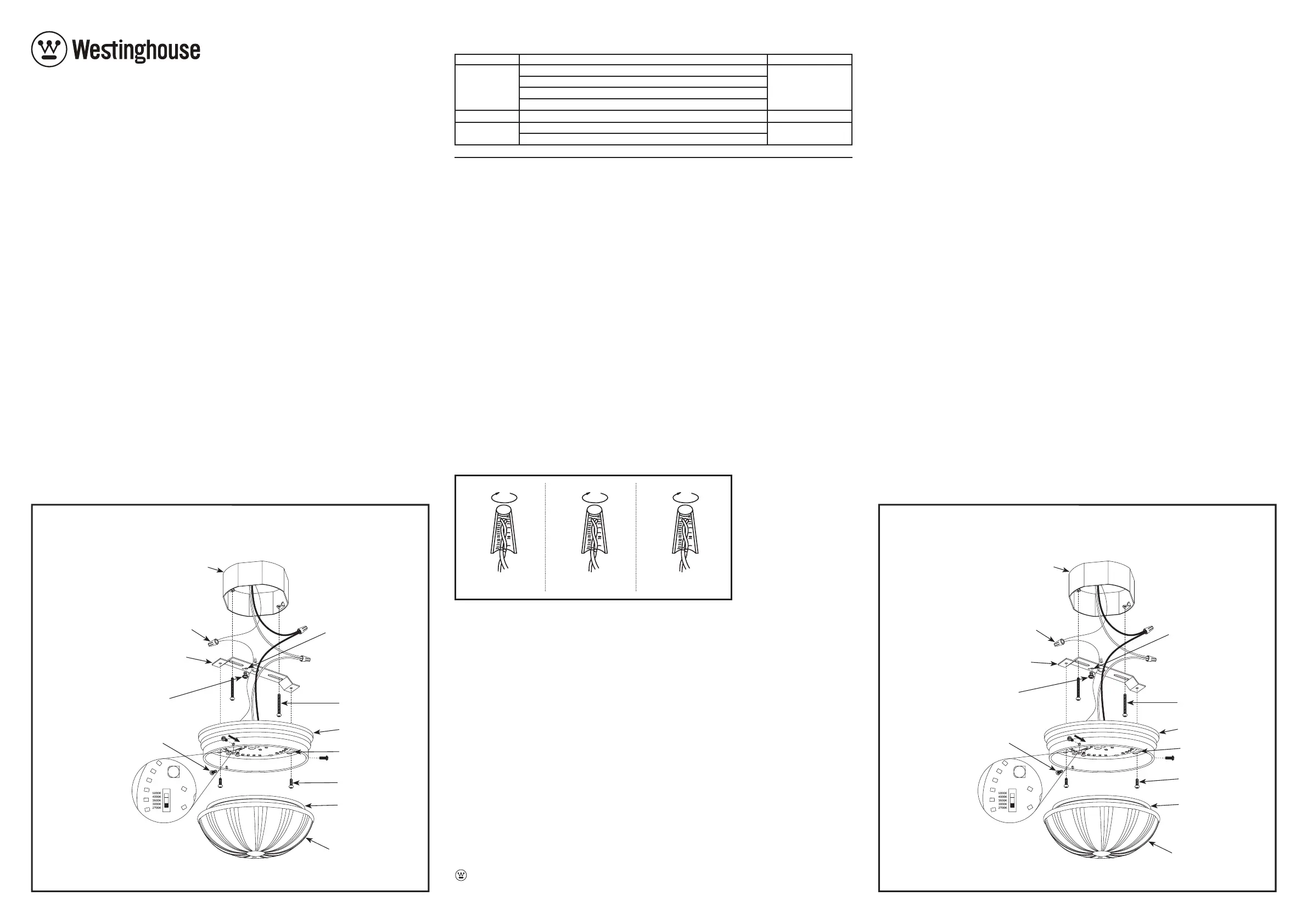

FIGURE 1.

Line art shown may not exactly match the fixture enclosed.

However, the installation instructions do apply to this fixture.

ASSEMBLY INSTRUCTIONS FOR INDOOR LIGHTING FIXTURE

Congratulations on your Westinghouse purchase. This fixture has been designed to give you many years

of beauty and service. For questions and comments, please visit www.westinghouselighting.com/

contact-us.

NOTE:Carefully unpack fixture and parts. Make sure all parts are included before discarding any packing

materials (see figure 1).

Owner’s Manual

LED Indoor Lighting Fixture

Installation Instructions

FIXTURE WARRANTY

This Westinghouse lighting fixture is warranted against defects in material and workmanship for a period of

five years from purchase date. This warranty is in lieu of all other warranties expressed or implied.

This warranty does not cover acts of nature such as lightening damage, or corrosion and discoloration of

components, nor does it cover damages caused through abuse, improver installation, surges in electric

current, or acts of third parties.

This warranty does not cover the costs of removing and re-installing the lighting fixture.

If this product fails for any reason covered by this warranty, please contact us at www.westinghouse-

lighting.com/contact-us.

WARNING:

ELECTRICAL SHOCK CAN RESULT IN SERIOUS INJURY.

Read and follow instructions exactly as shown. If instructions are unclear, do not proceed. Contact a

qualified electrician. Read all instructions before beginning. Proper wiring is essential for safe operation

of this fixture. When cutting or drilling into walls or ceilings, do not damage electrical wiring, gas lines,

or water lines. If any of the fixture or wiring components are damaged, do not install fixture. Return to

place of purchase.

For fixtures provided with 75° C or 90° C supply wire warning only. (These warnings are provided on the

U.L. label and on the fixture carton.) Risk of fire. Most dwellings built before 1985 have supply wires

rated 60° C. Consult a qualified electrician before installing.

Guide d’utilisation

Instructions d’installation

Appareil d’éclairage pour utilisation intérieure avec DEL

LES INSTRUCTIONS D’ASSEMBLAGE DE L’APPAREIL D’ÉCLAIRAGE POUR UTILISATION

INTÉRIEURE

Félicitations ! Vous avez acheté un produit de Westinghouse Lighting. Cet appareil d’éclairage a été conçu

pour durer de nombreuses années. Si vous avez des questions ou des commentaires à

nous communiquer, veuillez visiter www.westinghouselighting.com/contact-us.

NOTA : Déballez soigneusement l’appareil d’éclairage et les pièces. Assurez-vous que toutes les pièces y

sont avant de mettre l’emballage au rebut (voir fig. 1).

GARANTIE LIMITÉE DE CINQ ANS

Ce luminaire Westinghouse est garanti pièces et main-d’oeuvre pour une période de Cinq ans à compter de

la date d’achat. Cette garantie remplace toute autre garantie, explicite ou implicite.

Cette garantie ne couvre pas les phénomènes naturels comme les dommages de la foudre, ni la corrosion

ou la décoloration des composants, pas plus qu’elle ne couvre les dommages causés par les abus, une

installation inappropriée, les surtensions électriques ou les actes de tiers.

Cette garantie ne couvre pas les coûts de dépose et de pose du luminaire.

En cas de défaillance du produit, pour une raison quelconque, couverte par cette garantie, veuillez nous

contacter via www.westinghouselighting.com/contact-us.

MISE EN GARDE: L’ÉLECTROCUTION POURRAIT CAUSER DE GRAVES BLESSURES

PERSONNELLES.

Lisez ces instructions et suivez-les exactement comme illustré. En cas de doute, ne commencez pas l’in-

stallation. Consultez un électricien qualifié. Lisez toutes les instructions avant de commencer l’installa-

tion. Un câblage approprié est essentiel au bon fonctionnement de cet appareil d’éclairage. Lorsque vous

faites une entaille ou que vous percez un trou dans un mur ou un plafond, n’endommagez pas les câbles

électriques, les canalisations de gaz ou d’eau. Si l’un des composants de raccordement ou de l’appareil

d’éclairage est endommagé, n’installez pas cet appareil d’éclairage. Retournez-le à l’endroit où vous l’avez

acheté.

Convient uniquement aux appareils comportant un avertissement indiquant que l’appareil d’éclairage est

doté d’un fil supportant une chaleur de 75°C ou 90°C. (Ces avertissements se trouvent sur l’étiquette U.L.

et sur l’emballage de l’appareil d’éclairage.)

W-817

112824

Westinghouse Lighting, Philadelphia, PA 19154-1029, U.S.A. www.westinghouselighting.com

and Westinghouse are trademarks of Westinghouse Electric Corporation.

Used under license by Westinghouse Lighting. All Rights Reserved. Made in China

*NON FOURNI

FIGURE 1.

RAINURES (I)

*BOITE DE SORTIE

DE COURANT (C)

VIS DE MISE A LA

TERRE (VERTE) (F)

LEVRE DE

L’ABAT-JOUR (L)

CANOPY WITH

INSULATION (H)

VIS A CLE (J)

BARRE DE

FIXATION (B)

*VIS DE LA BOITE

SORTIE DE COURANT (D)

VIS DE

FIXATION (A)

ABAT-JOUR

EN VERRE (K)

CONNECTEURS

DE FIL (E)

TROU

LATERAL (G)

Il est possible que le dessin illustré ici ne soit pas la reproduction exacte de l’appareil

d’éclairage contenu dans la boîte.

Les instructions d’installation demeurent cependant valables.

Brand Model # DIMMING RANGE

Lutron DVCL-153P, MACL-153M, MRF2-6CL, SCL-153P, DVCL-253P, 10-100%

CTCL-153P, DVCL-253P-WH, P-PKG1W-WH-R, PD-10NXD-WH,

DVCL-253-WH, R60-IPL06-10M, MACL-153MH-WH,

DVCL-153PR-WH, RNL06, TG-603P, TGCL-153PH-WH

Leviton R60-IPL06-10N, R62-06674-POW, 6631, 9R-12-06672 10-100%

Eaton DSL06-1LZ, C22-6672-1LW, 06674-002-1OW, AAL06,

10-100%

SAL06P-W-HALOGF2, DVL06P-C2-KB-LM

Not recommended for use with motion sensors, light sensors, timers or any other external controls.

NOTE: THIS FIXTURE IS SUITABLE FOR USE WITH DIMMABLE SWITCHES, SEE BELOW FOR LIST OFCOMPATIBLE

DIMMERS.
