Assembly and
operating instructions
Gas condensing boilers
MGK-130
MGK-170
MGK-210
MGK-250
MGK-300
Document no. 3062880_201305 Subjecttotechnicalmodications
These installation instructions are to be retained by the user.
We cannot accept any warranty claims if these operating instructions have not been
observed.
GB
Wolf GmbH · Postfach 1380 · D-84048 Mainburg · Tel. +49-8751/74-0 · Fax +49-8751/741600 · Internet: www.wolf-heiztechnik.de
2 3062880_201305
Contents
Contents ................................................................................................. Page
Safetyinstructions .......................................................................................3-4
Standardsandregulations...........................................................................5-6
Layout MGK....................................................................................................6
Specication ...................................................................................................7
Control/Function/Operation .....................................................................8-9
Deliveredcondition/Connections ................................................................ 10
Installationinstructions ................................................................................. 11
Installationinstructions/Dimensions ...........................................................12
Dismantling,casing ......................................................................................13
Boilersystempipework.................................................................................14
Installation ...............................................................................................15-17
Installation,combustionairsupply/uesystem ..........................................18
Electricalconnection................................................................................18-22
Fillingthesystem/llingthesiphon ............................................................. 23
Checkingthegassupplypressure ...............................................................24
Commissioning/SettingtheBUSaddress...................................................25
Displaying/modifyingcontrolparameters....................................................26
Limitingthemaximumoutput........................................................................27
Changingthegastype/CO
2
settings ......................................................28-30
Testingthecombustionparameters..............................................................31
Commissioningreport...................................................................................32
Technicalinformation,watertreatment .................................................... 33-34
Systemlog ....................................................................................................35
Engineeringdata ..........................................................................................36
Engineeringinformation,combustionair/uegasrouting......................37-43
WiringdiagramMGK-130 ............................................................................. 44
WiringdiagramMGK-170-300 ....................................................................45
Troubleshooting .......................................................................................46-47
Resistancetable ........................................................................................... 48
Notice ......................................................................................................49-51
ECdeclarationofconformity ........................................................................52
33062880_201305
The following symbols and references are used
in conjunction with these important instructions
concerning personal safety, as well as operational
reliability.
"Safety instructions" are instructions with
which you must comply exactly, to prevent
risks and injuries to individuals and material
losses on the boiler.
Danger from 'live' electrical components!
NB: Switch OFF the ON/OFF switch
before removing the casing.
Never touch electrical components or
contacts when the ON/OFF switch is in
the ON position! This results in a risk of
electrocution that may lead to injury or
death.
The main supply terminals are 'live' even
when the ON/OFF switch is in the OFF
position.
"NB" indicates technical instructions that
you must observe to prevent material losses
and malfunctions on the boiler.
This unit is neither due to be used by persons (in-
cluding children) with physical, sensoric or mental
handicaps nor by users missing the required experi-
ence and/or knowledge unless being supervised and
instructed about its application by a person being }
responsible for their security.
NB
Safety instructions

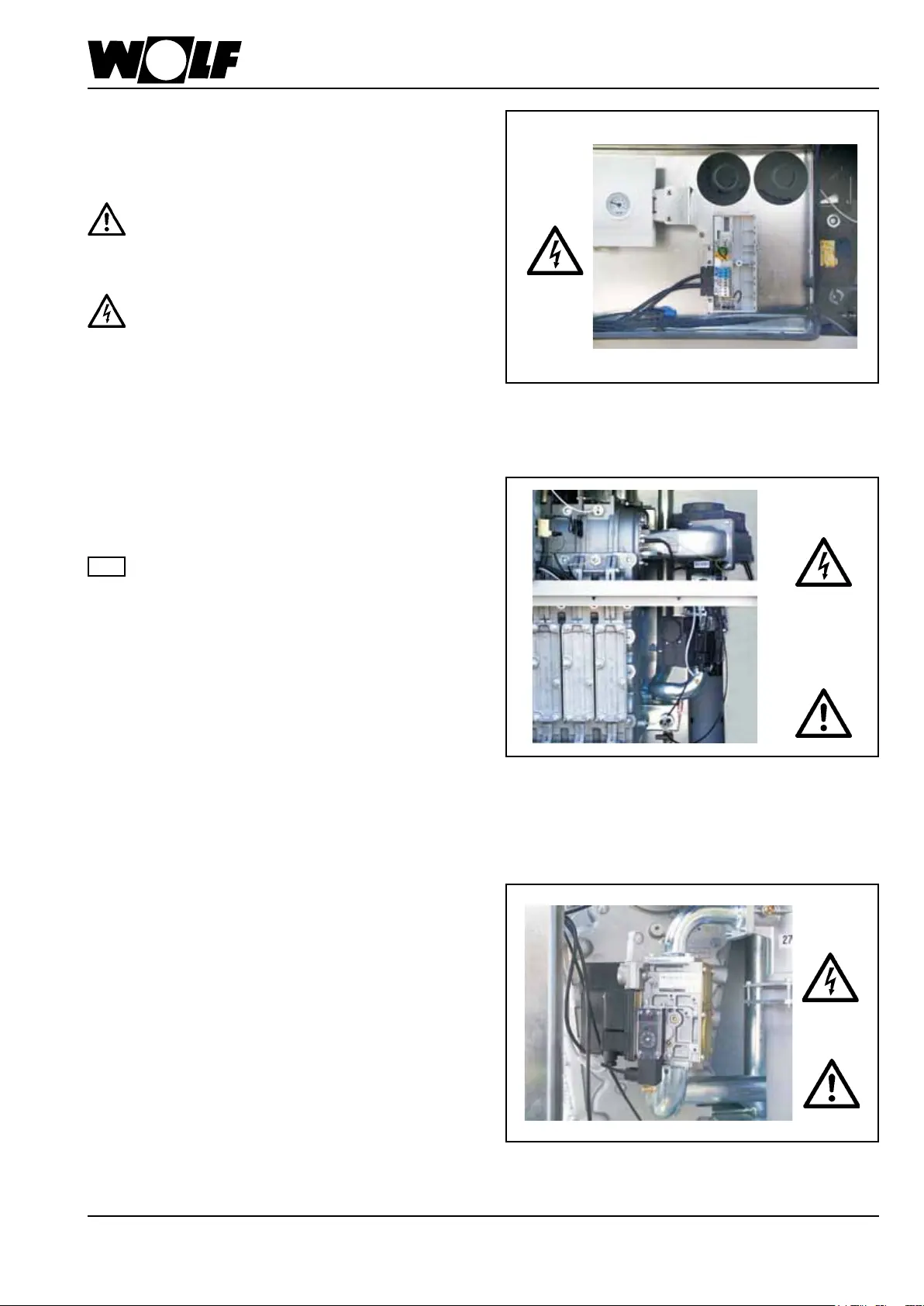

Fig.:GascombinationvalveMGK-170/210/250/300
Dangerfromelectricalvoltage
Escapinggasmaycausepoisoningortheriskofexplosion
Fig.:Ignitiontransformer,highvoltageignitionelectrode,
combustionchamber
Dangerfrom'live'electricalcomponents,riskofburning
throughhotcomponents
Fig.:JunctionboxMGK-170/210/250/300
Dangerfromelectricalvoltage
