Alfresco ALX2-36SZC Bedienungsanleitung
Alfresco
Kontaktgrill
ALX2-36SZC
Lies die bedienungsanleitung für Alfresco ALX2-36SZC (12 Seiten) kostenlos online; sie gehört zur Kategorie Kontaktgrill. Dieses Handbuch wurde von 2 Personen als hilfreich bewertet und erhielt im Schnitt 4.7 Sterne aus 1.5 Bewertungen. Hast du eine Frage zu Alfresco ALX2-36SZC oder möchtest du andere Nutzer dieses Produkts befragen? Stelle eine Frage
Seite 1/12
23
22
16
3
27
3
11
10
8
4
3
9
7
4
14
1 6
20
28
19
24
17
13
13
15
12
21
2
4
5
3
9
25
9
5
2
18
26
NOTE:
SEARZONE™ BURNER
11
AND GRILL
26
USED ON ALX2-36SZ
OTHERWISE ONLY BURNER
10
, GRILL
16
AND BRIQUETTE
27
USED ON ALX2-36.
16
27

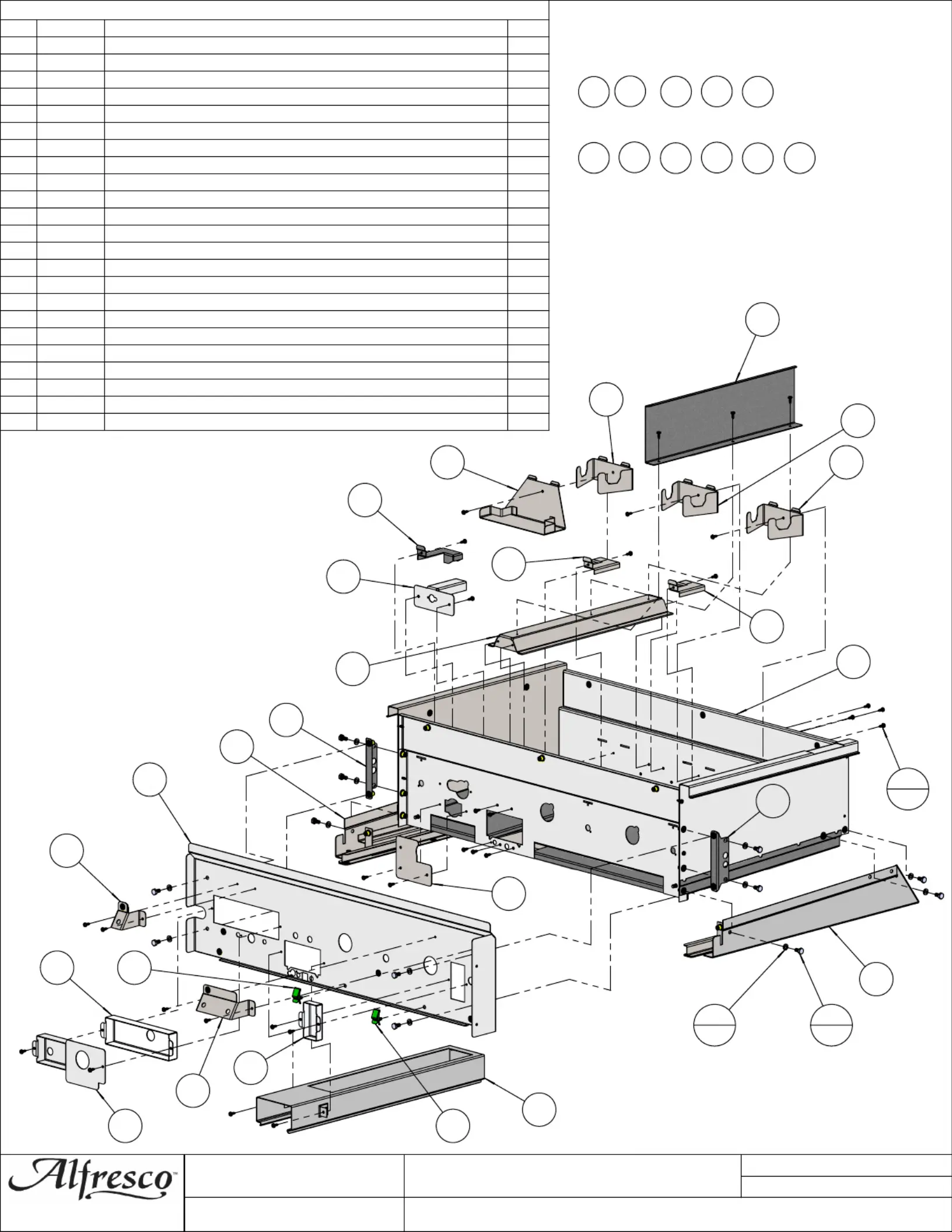

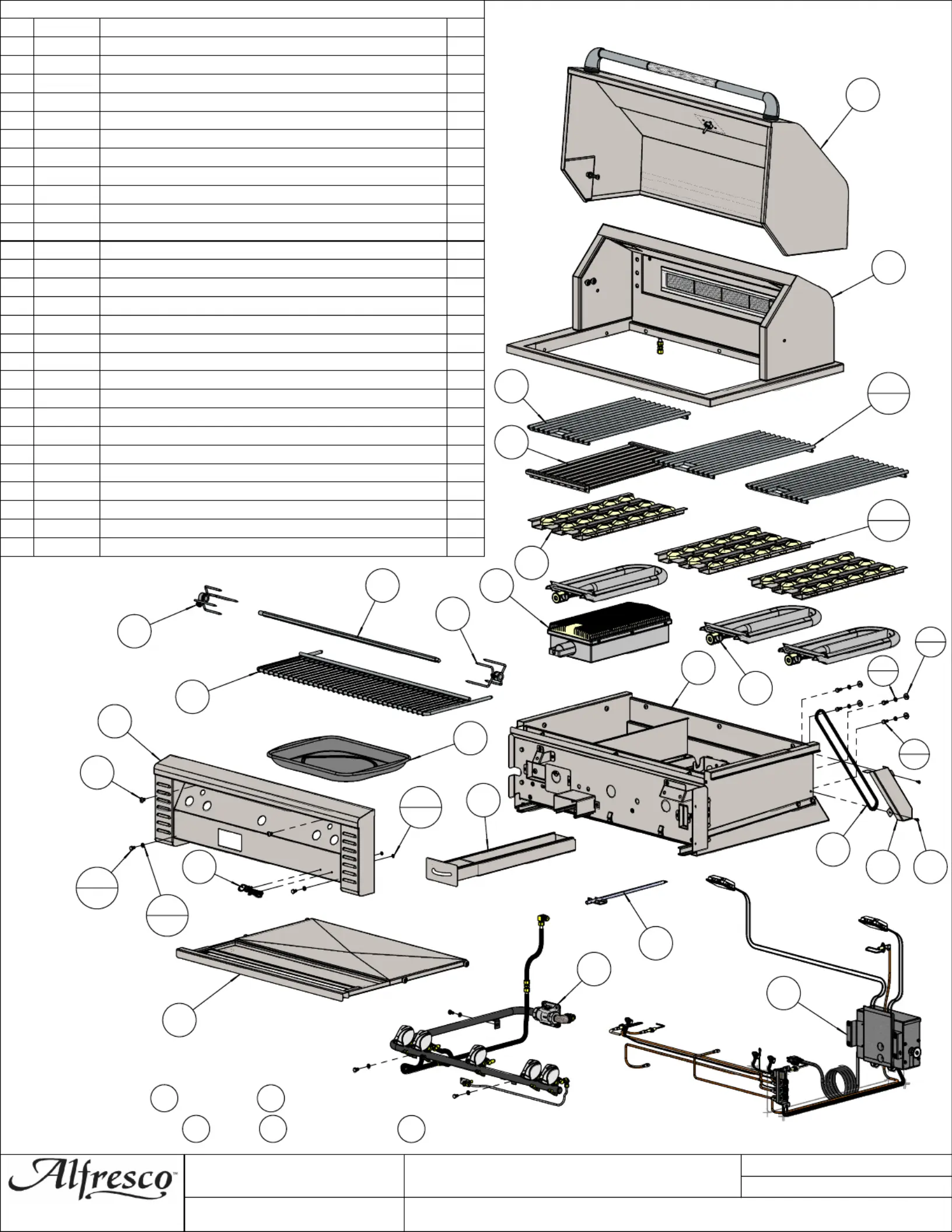

BILL OF MATERIAL
NO. PART #
DESCRIPTION
QTY
1
100-1877
ALX2 - ROTISSERIE CHAIN COVER
1
2
200-0057
SCREW 1/4-20 X 1/2 - TRUSS HEAD - PHILPS
12
3
200-0087
WASHER - 1/4" SPRING LOCK- REGULAR - SS
9
4
200-0089
BOLT - HEX HEAD 1/4-20 x 1/2" L
5
5
200-0093
WASHER - PUSH LOCK 1/8" ID X 3/8" OD (LOGO)
2
6
200-0111
SCREW 8-18 X ½ - SELF TAP - 410 SS
2
7
200-0219
HEX HD MACHINE SCREW 1/4-20 UNC X 5/8 LONG SS
4
8
200-0244
WASHER, FLAT 1/4 TYPE B - REGULAR, SS
4
9
290-0031
LOGO - ALFRESCO
1
10
290-0038
BURNER - GRILL - "U" SHAPE
3
11
290-0052
ALFRESCO SEAR ZONE™ BURNER ASSEMBLY
1
12
290-0059
ROTISSERIE DRIP PAN
1
13
290-0096
FORK ASSEMBLY
2
14
290-0116
CHAIN - ANSI # 25 - ¼" PITCH - .13" Ø X 1/8" ROLLER
1
15
290-0347
ALX2-36 WARMING RACK - SS
1
16
290-0348
GRILL ALX2-36 BBQ - 10-7/16" WIDE - SS
3
17
290-0349
SPEAR - ROTISSERIE - ALX2-36
1
18
510-0131
ALX2-36 - GAS MANIFOLD ASSEMBLY
1
19
510-0504
ALX2 - SMOKER BURNER ASSEMBLY
1
20
510-0660
ALX2-36 BBQ - FIRE BOX ASSEMBLY
1
21
510-0663
ALX2-36 - FRONT PANEL MAIN ASSEMBLY
1
22
510-0665
ALX2-36 - BACK HOOD WITH RIM ASSEMBLY
1
23
510-0668
ALX2-36 - FRONT HOOD - MAIN ASSEMBLY
1
24
510-0670
ALX2-36 - SMOKER TRAY ASSEMBLY
1
25
510-0671
ALX2-36 - GREASE TRAY ASSEMBLY
1
26
510-0676
ALX2-36 - SEARZONE™ GRILL ASSEMBLY
1
27
510-0677
ALX2-36 - BRICKETTE TRAY ASSEMBLY
3
28
510-0678
ALX2-36 / 36SZ - ELECTRICAL COMPONENTS
1
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
500-0105 MANUAL
SHEET 1 OF 1
ALX2-36 / 36SZ
ALX2-36 / 36SZ UNIT - BUILT IN
LAST SAVED BY: »» adrian «« Tuesday, January 24, 2012 7:29:12 AM
DRAWN BY:
ADRIAN CRISCI
CREATED:
1/23/2012 1:55:37 PM
3
1
1
1
10
5
2
2
8
7
22
21
17
21
18
9
23
6
19
4
16
16
20
12
11
14
17
13
17
15
32
NOTE:
BRACKETS USED ON
ALX2-36
MODEL ONLY:
1
2
5
9
11
BRACKETS USED ON
ALX2-36SZ
ONLY:
1
2
3
10
8
12
BILL OF MATERIAL
NO. PART #
DESCRIPTION
QTY
1
100-1846
ALX2 - U-BURNER BRACKET
3
2
100-1848
ALX2 - IGNITER SHIELD
2
3
100-1866
ALX2 - SEAR-ZONE BURNER SHIELD
1
4
100-1888
ALX2 - SINGLE VALVE FIREWALL COVE
1
5
100-2202
ALX2-36 - IGNITER SHIELD - LEFT SIDE
1
6
100-2204
ALX2-36 - SMOKER BOX BODY
1
7
100-2205
ALX2-36 SMOKER BOX TOP DIFUSSER
1
8
100-2210
ALX2-36 - SEAR-ZONE IGNITER BRACKET / SHIELD
1
9
100-2211
ALX2-36 - SEARZONE™ OPENING FIREBOX COVER
1
10
100-2212
ALX2-36 - SEAR-ZONE™ BURNER BRACKET
1
11
100-2213
ALX2-36 - DUAL VALVE FIREWALL COVER FOR U-BURNER
1
12
100-2214
ALX2-36 - DUAL VALVE FIREWALL COVE
1
13
200-0087
WASHER - 1/4" SPRING LOCK- REGULAR - SS
17
14
200-0089
BOLT - HEX HEAD 1/4-20 x 1/2" L
17
15
200-0111
SCREW 8-18 X ½ - SELF TAP - 410 SS
32
16
200-0305
SPEED NUT TINNERMAN U-TYPE
2
17
510-0502
ALX2 - GREASE TRAY SUPPORT - RIGHT SIDE
1
18
510-0503
ALX2 - GREASE TRAY SUPPORT - LEFT SIDE
1
19
510-0507
ALX2 - FRONT PANEL BRACKET ASSEMBLY - SINGLE SWITCH
1
20
510-0517
ALX2 - FRONT PANEL BRACKET ASSEMBLY - DUAL SWITCH
1
21
510-0520
ALX2 - FIREWALL SUPPORT BRACKET ASSEMBLY
2
22
510-0661
ALX2-36 FIREBOX - WELDED PARTS
1
23
510-0662
ALX2-36 FIREWALL ASSEMBLY
1
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
510-0660
SHEET 1 OF 1
ALX2-36 / 26SZ
ALX2-36 BBQ - FIRE BOX ASSEMBLY
LAST SAVED BY: »» adrian «« Monday, January 30, 2012 2:40:58 PM
DRAWN BY:
ADRIAN CRISCI
CREATED:
1/30/2012 2:27:39 PM
