ALX2-42SZ
BUILT-IN 42" BBQ GRILL WITH DUAL "U" BURNERS
SEAR-ZONE™, INTEGRATED ROTISSERIE MOTOR
AND LIGHTS
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
500-0020 MANUAL
SHEET 1 OF 1
ALX2-42SZ BBQ
ALX2-42SZ BBQ UNIT - BUILT IN
LAST SAVED BY: »» adrian «« Friday, August 01, 2008 11:29:15 AM
DRAWN BY:
ADRIAN CRISCI
CREATED:
1/24/2007 11:49:55 AM
33
29
27
22
14
4
3
8
17
19
23
32
18
11
2
16
20
5
10
13
15
9
30
26
31
24
25
34
28
21
7
6
1

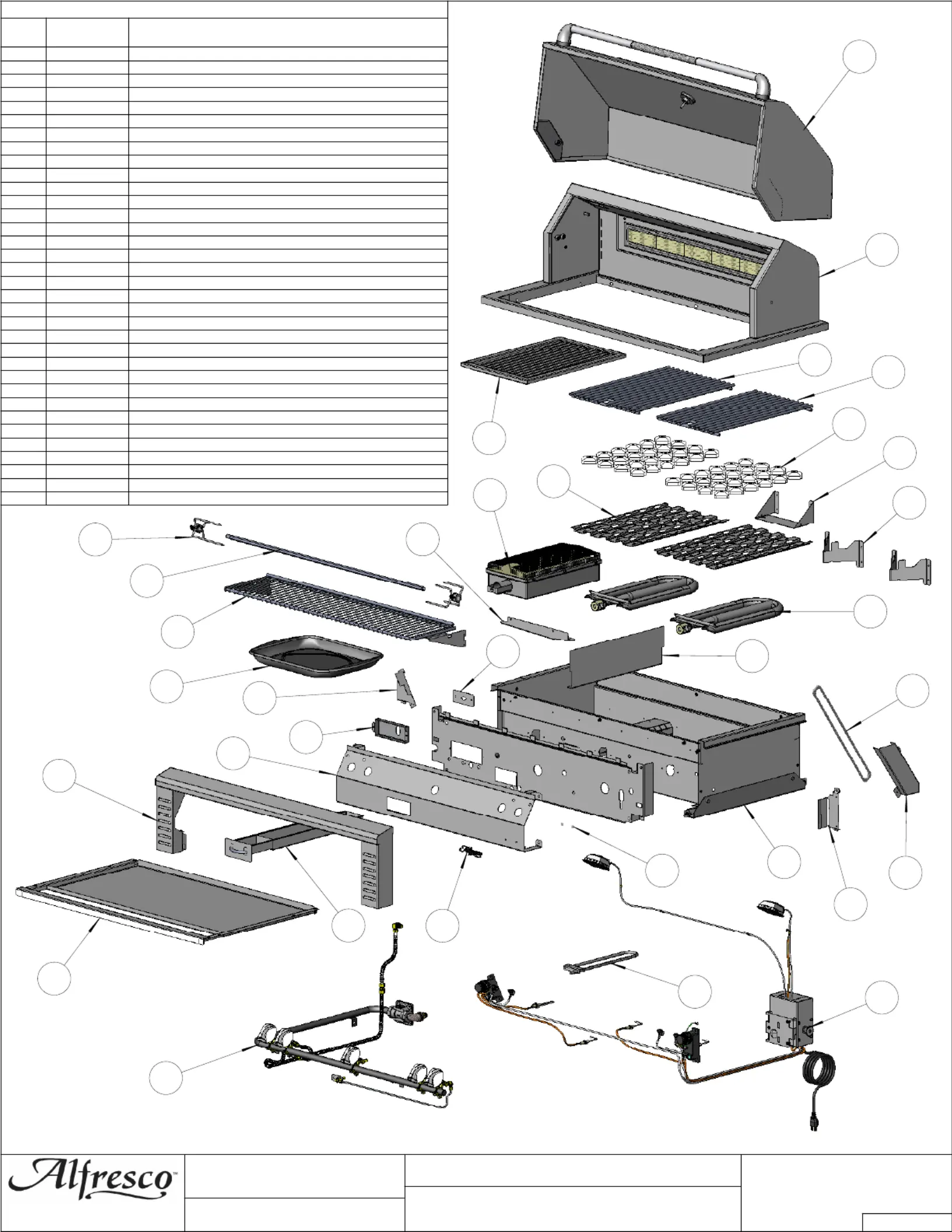

BILL OF MATERIAL

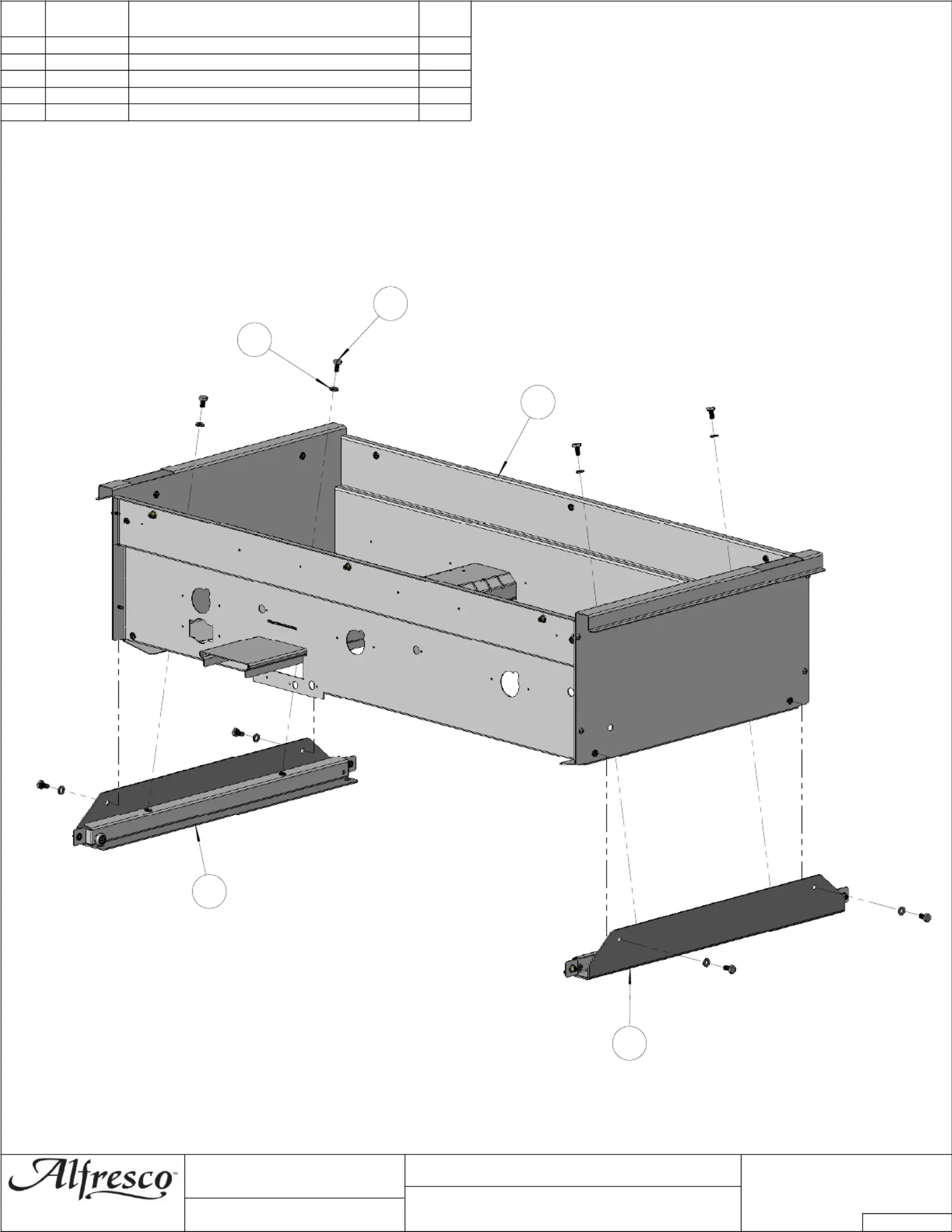

NO.
PART
NUMBER
DESCRIPTION
1
100-1066
FIREBOX COVER FOR ELECTRODE
2
100-1073
DUAL VALVE FIREWALL COVE
3
100-1083
U-BURNER BACK WALL BRACKET
4
100-1085
SEAR-ZONE™ BACK WALL BRACKET
5
100-1093
ROTISSERIE CHAIN COVER
6
100-1105
SEAR-ZONE™ GRILL - GREASE TROUGH
7
100-1106
SEAR-ZONE™ GRILL - HEAT SHIELD
8
100-1132
BRIQUETTE TRAY
9
100-1147
FRONT PANEL - 42" BBQ
10
100-1196
IGNITER MOUNTING PLATE RIGHT
11
100-1197
IGNITER MOUNTING PLATE LEFT
12
100-1212
ALX2-42 FIREWALL
13
200-0093
WASHER - PUSH LOCK 1/8" ID X 3/8" OD (FOR LOGO)
14
265-0005
BRIQUETTES - ALFRESCO CERAMIC (SET OF 24 PCS)
15
290-0031
LOGO - ALFRESCO
16
290-0038
BURNER - GRILL - "U" SHAPE
17
290-0052
ALFRESCO SEAR ZONE™ BURNER ASSEMBLY
18
290-0059
ROTISSERIE DRIP PAN
19
290-0096
FORK ASSEMBLY
20
290-0116
CHAIN - ANSI # 25 - ¼" PITCH - .13" Ø X 1/8" ROLLER
21
290-0124
GRILL 30" BBQ - 12¾" WIDE - SS
22
290-0157
GRILL 30" BBQ - 11¾" WIDE - SS
23
290-0158
SPEAR - ROTISSERIE - 42" - 2006 BBQ
24
510-0131
42" BBQ - GAS MANIFOLD SEAR-ZONE™
25
510-0134
SMOKER BURNER ASSEMBLY
26
510-0137
SMOKER TRAY ASSEMBLY
27
510-0144
SEAR-ZONE™ GRILL - 2006 BBQ
28
510-0152
42" BBQ - FIRE BOX ASSEMBLY
29
510-0154
42" BACK HOOD WITH RIM ASSEMBLY
30
510-0155
42" BBQ FRONT ASSEMBLY
31
510-0167
42" BBQ - GREASE TRAY ASSEMBLY
32
510-0168
WARMING RACK - 42" BBQ
33
510-0196
ALX2-42 FRONT HOOD - MAIN ASSEMBLY
34
510-0210A
ALX2-42SZ ELECTRICAL COMPONENTS
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
500-0020 MANUAL-1
SHEET 1 OF 1
ALX2-42SZ BBQ
ALX2-42SZ BBQ UNIT - BUILT IN
LAST SAVED BY: »» adrian «« Friday, August 01, 2008 1:56:35 PM
DRAWN BY:
ADRIAN CRISCI
CREATED:
1/31/2007 4:00:28 PM
2
1
5
4
3
NO.
PART
NUMBER
DESCRIPTION
QTY.
1
200-0087
1/4" LOCK WASHER
8
2
200-0089
1/4-20 X 1/2 - HEX HEAD BOLT
8
3
510-0128
BBQ TRAY SUPPORT ASSY - RIGHT SIDE
1
4
510-0129
BBQ TRAY SUPPORT ASSY - LEFT SIDE
1
5
510-0219
ALX2-42 FIREBOX - WELDED PARTS
1
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
510-0152 MANUAL
SHEET 1 OF 1
ALX2-42 BBQ
42" BBQ - FIRE BOX ASSEMBLY
LAST SAVED BY: »» adrian «« Friday, August 01, 2008 8:20:31 AM
DRAWN BY:
ADRIAN CRISCI
CREATED:
1/22/2007 4:01:16 PM
