ALX2-56
BUILT-IN 56" BBQ WITH TRIPLE GRILL BURNERS,
DOUBLE SIDE BURNERS INTEGRATED ROTISSERIE
MOTOR AND LIGHTS.
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
500-0021 MANUAL
SHEET 1 OF 1
ALX2-56 BBQ
ALX2-56 BBQ - TRIPLE U BURNER
LAST SAVED BY: »» adrian «« Monday, August 04, 2008 9:40:00 AM
DRAWN BY:
ADRIAN CRISCI
CREATED:
2/15/2007 4:20:58 PM
1
30
26
18
19
15
11
3
13
4
17
5
16
20
14
8
16
24
2
9
10
7
27
21
31
6
12
22
32
33
29
28
23
25

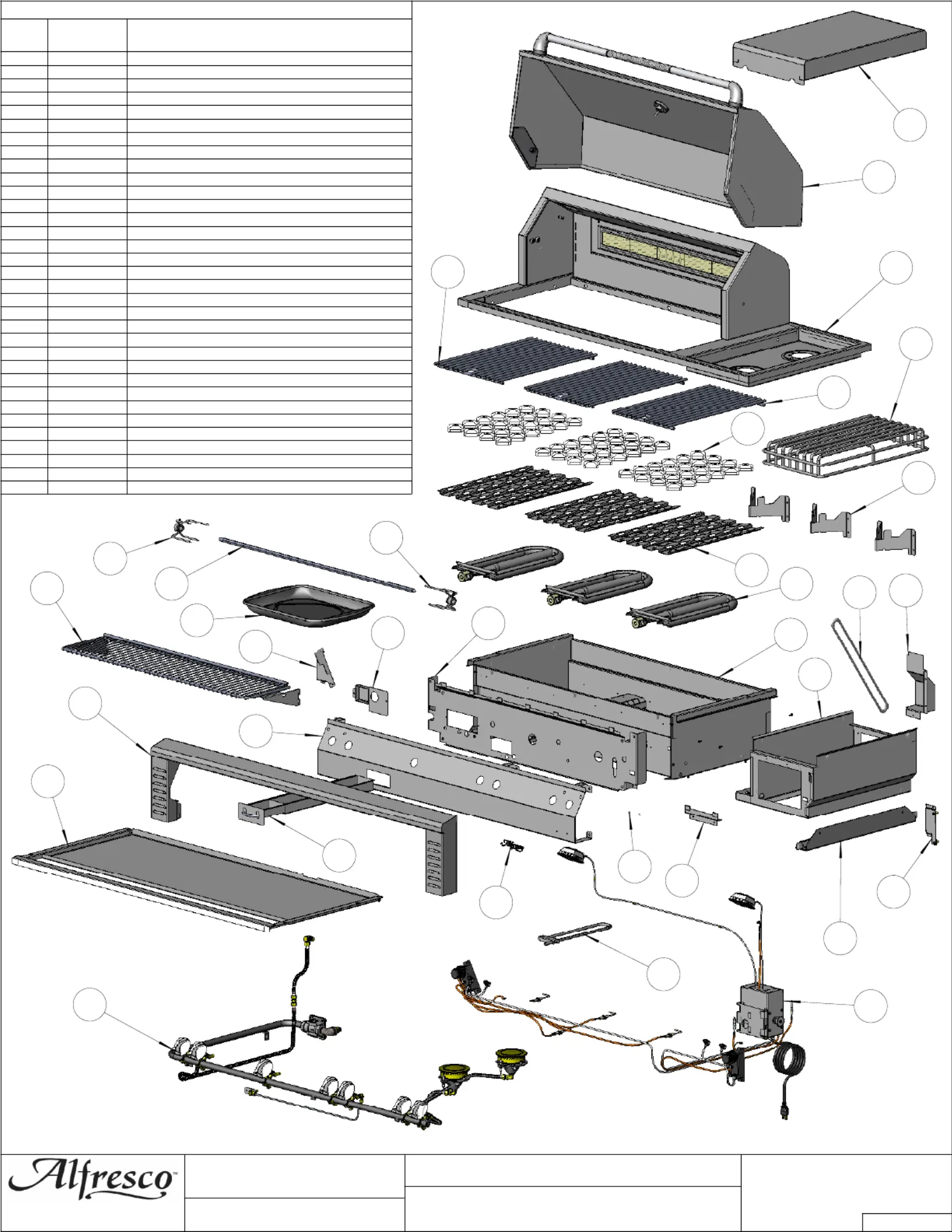

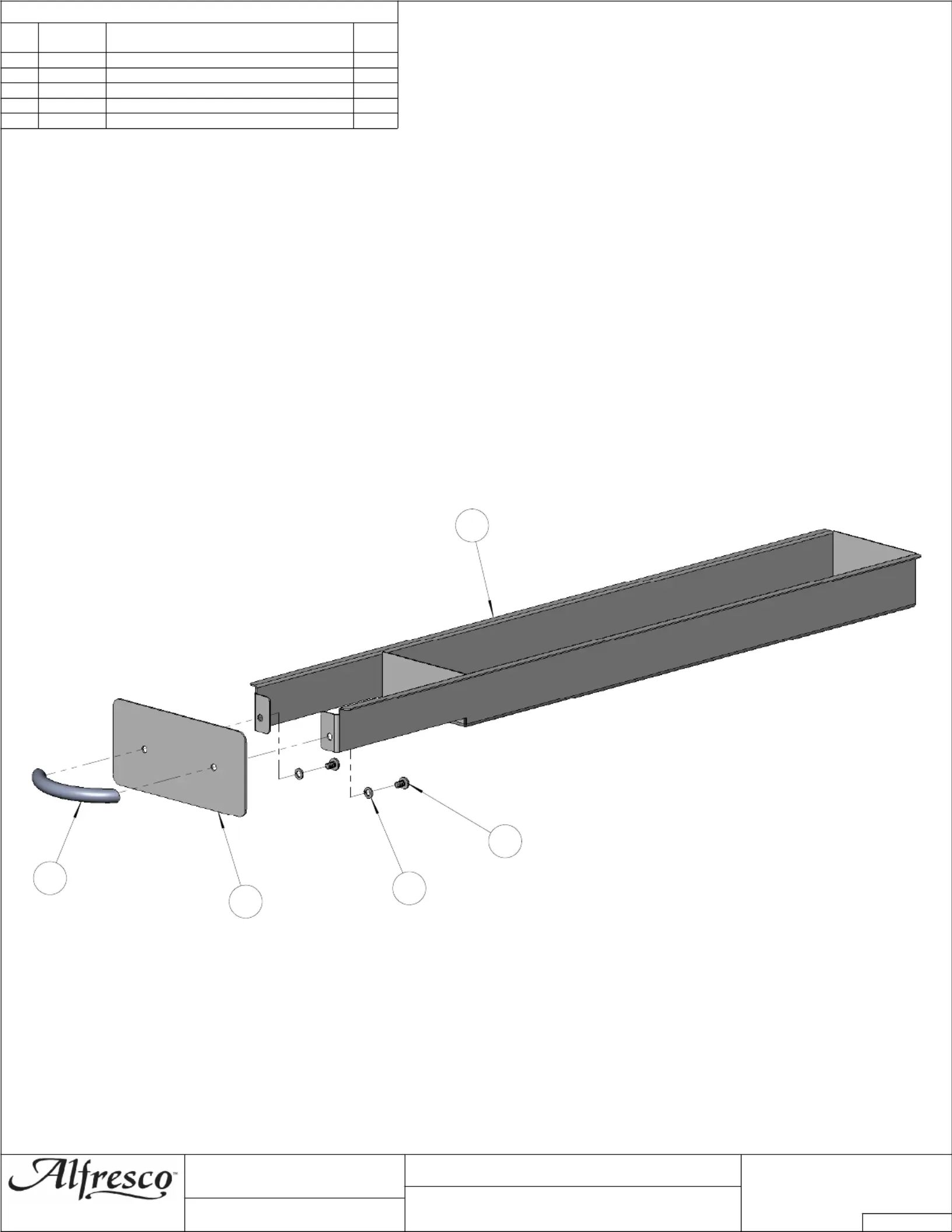

BILL OF MATERIAL
NO.
PART
NUMBER
DESCRIPTION
1
100-0949
WEATHER COVER
2
100-1074
DUAL VLV FWALL COVE 4 U BURNER
3
100-1083
U-BURNER BACK WALL BRACKET
4
100-1132
BRIQUETTE TRAY
5
100-1163
56" CHAIN COVER
6
100-1164
56" BBQ - FRONT PANEL
7
100-1165
56" BBQ - FRONT SUPRT SIDE BURNER
8
100-1197
IGNITER MOUNTING PLATE LEFT
9
100-1212
ALX2-42 FIREWALL
10
200-0093
WASHER - PUSH LOCK 1/8" ID X 3/8" OD (FOR LOGO)
11
265-0005
BRIQUETTES - ALFRESCO CERAMIC (SET OF 24 PCS)
12
290-0031
LOGO - ALFRESCO
13
290-0038
BURNER - GRILL - "U" SHAPE
14
290-0059
ROTISSERIE DRIP PAN
15
290-0069
GRATE - DUAL SIDE BURNER
16
290-0096
FORK ASSEMBLY
17
290-0116
CHAIN - ANSI # 25 - ¼" PITCH - .13" Ø X 1/8" ROLLER
18
290-0124
GRILL 30" BBQ - 12¾" WIDE - SS
19
290-0157
GRILL 30" BBQ - 11¾" WIDE - SS
20
290-0158
SPEAR - ROTISSERIE - 42" - 2006 BBQ
21
510-0128
BBQ TRAY SUPPORT ASSY - RIGHT SIDE
22
510-0134
SMOKER BURNER ASSEMBLY
23
510-0137
SMOKER TRAY ASSEMBLY
24
510-0152
42" BBQ - FIRE BOX ASSEMBLY
25
510-0168
WARMING RACK - 42" BBQ
26
510-0172
ALX2-56 BACK HOOD & RIM ASSEMBLY
27
510-0173
SIDE BURNER SUPPORT ASSEMBLY
28
510-0174
56" BBQ FRONT ASSEMBLY
29
510-0175
56" BBQ LX2 - GREASE TRAY
30
510-0196
ALX2-42 FRONT HOOD - MAIN ASSEMBLY
31
510-0202
ALX2-56 IGNITER MOUNT RIGHT
32
510-0211
ALX2-56 ELECTRICAL COMPONENTS
33
510-0223
ALX2-56 GAS MANIFOLD TRIPLE U-BURNER
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
500-0021 MANUAL-1
SHEET 1 OF 1
ALX2-56 BBQ
ALX2-56 BBQ - TRIPLE U BURNER
LAST SAVED BY: »» adrian «« Monday, August 04, 2008 11:50:20 AM
DRAWN BY:
ADRIAN CRISCI
CREATED:
2/15/2007 3:42:31 PM
3
2
4
5
1
BILL OF MATERIAL
NO.
PART
NUMBER
DESCRIPTION
QTY.
1
100-1081
SMOKER TRAY
1
2
100-1082
SMOKER TRAY HANDLE
1
3
290-0135
HANDLE - 3/8"Ø X 3" L - TAPPED
1
4
200-0200
WASHER - # 8 - LOCK SPRING - SS
2
5
200-0083
8-32 X 1/4 - PAN HEAD - PHILIPS SCREW
2
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
510-0137 MANUAL
SHEET 1 OF 1
ALX2 BBQ
SMOKER TRAY ASSEMBLY
LAST SAVED BY: »» adrian «« Wednesday, July 30, 2008 11:08:57 AM
DRAWN BY:
ADRIAN CRISCI
CREATED:
10/18/2006 11:10:12 AM
