Seite 1/7

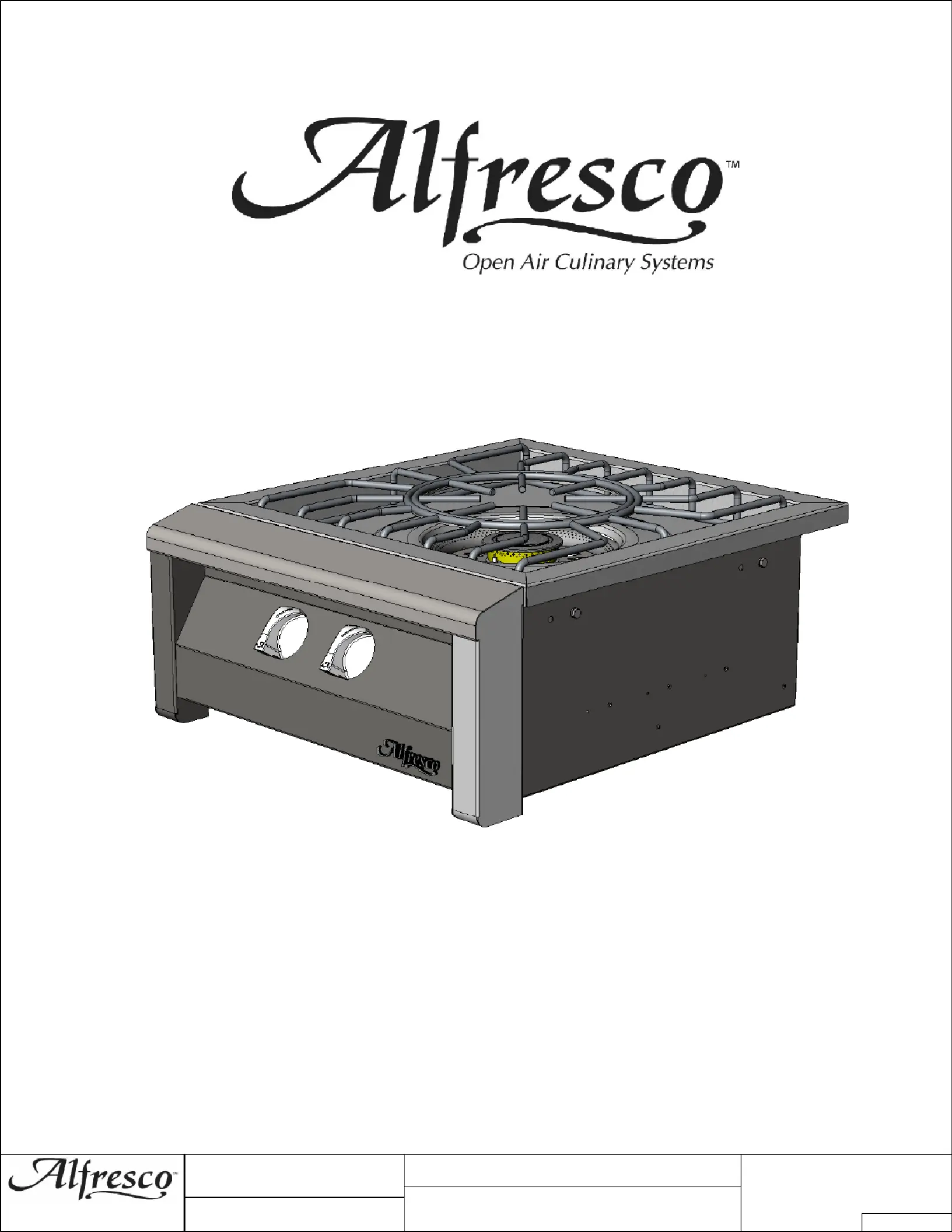

AGVPC
VERSAPOWER™ COOKING SYSTEM
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
500-0063A
SHEET 1 OF 1
AGVPC
AGVPC - VERSA-POWER™ COOKER
LAST SAVED BY: »» adrian «« Tuesday, July 28, 2009 1:36:20 PM
DRAWN BY:
ADRIAN CRISCI
CREATED:
7/3/2008 8:34:07 AM
18
17
8
4
2
9
10
12
2
11
2
13
1
9
10
3
15
14
7
3
16
5
3
6
4
4
3
BILL OF MATERIAL
NO.
PART
NUMBER
DESCRIPTION
QTY
1
100-1475
AGVPC BACK BODY BRACKET
1
2
100-1478
AGVPC TOP DECK BURNER CAP
1
3
100-1482
AGVPC GREASE TRAY
1
4
200-0087
WASHER - 1/4" SPRING LOCK- REGULAR - SS
3
5
200-0087
1/4" LOCK WASHER
3
6
200-0089
1/4-20 X 1/2 - HEX HEAD BOLT
4
7
200-0092
1/4 X 1/8 X 5/8 FLAT WASHER - SPACER
3
8
200-0098
SCREW 6-32 X ½" - FLAT HEAD 82° - PHILIPS
4
9
200-0111
SCREW 8-18 X ½ - SS - MMC# 92364A194
10
10
200-0194
POP RIVET Ø.125 X .063- .125 RANGE
4
11
200-0219
HEX HD MACHINE SCREW 1/4-20 UNC X 5/8 LONG SS
2
12
210-0258
CABLE TIE - T&B L-5-50PM-9
2
13
510-0378
AGVPC - BODY ASSEMBLY
1
14
510-0379
AGVPC - FRONT ASSEMBLY
1
15
510-0381
AGVPC - IGNITER ASSEMBLY
1
16
510-0382
AGVPC - MANIFOLD ASSEMBLY
1
17
510-0385
AGVPC - GRATE ASSEMBLY - POT / WOK USE
1
18
510-0387
AGVPC - COVER
1
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
500-0063B
SHEET 1 OF 1
AGVPC
AGVPC - VERSA-POWER™ COOKER
LAST SAVED BY: »» adrian «« Tuesday, July 28, 2009 2:14:17 PM
DRAWN BY:
ADRIAN CRISCI
CREATED:
7/3/2008 9:36:06 AM
1
2
4
5
4
3
2
BILL OF MATERIAL
NO.
PART
NUMBER
DESCRIPTION
QTY.
1
100-1472
AGVPC FRONT PANEL
1
2
200-0086
1/4-20 X 3/8 - TRUSS HEAD - PHILIPS SCREW
4
3
200-0093
WASHER - PUSH LOCK 1/8" ID X 3/8" OD (FOR LOGO)
2
4
290-0031
LOGO - ALFRESCO
1
5
510-0380
AGVPC - FRONT ASSEMBLY- WELDED PARTS
1
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
510-0379
SHEET 1 OF 1
AGVPC
AGVPC - FRONT ASSEMBLY
LAST SAVED BY: »» adrian «« Tuesday, July 08, 2008 8:47:28 AM
DRAWN BY:
ADRIAN CRISCI
CREATED:
7/3/2008 1:44:22 PM
